7
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
ENGLISHENGLISH
Operator’s Manual
38500
|
Eskape™ 2800 Flip-Style Sled Shelter

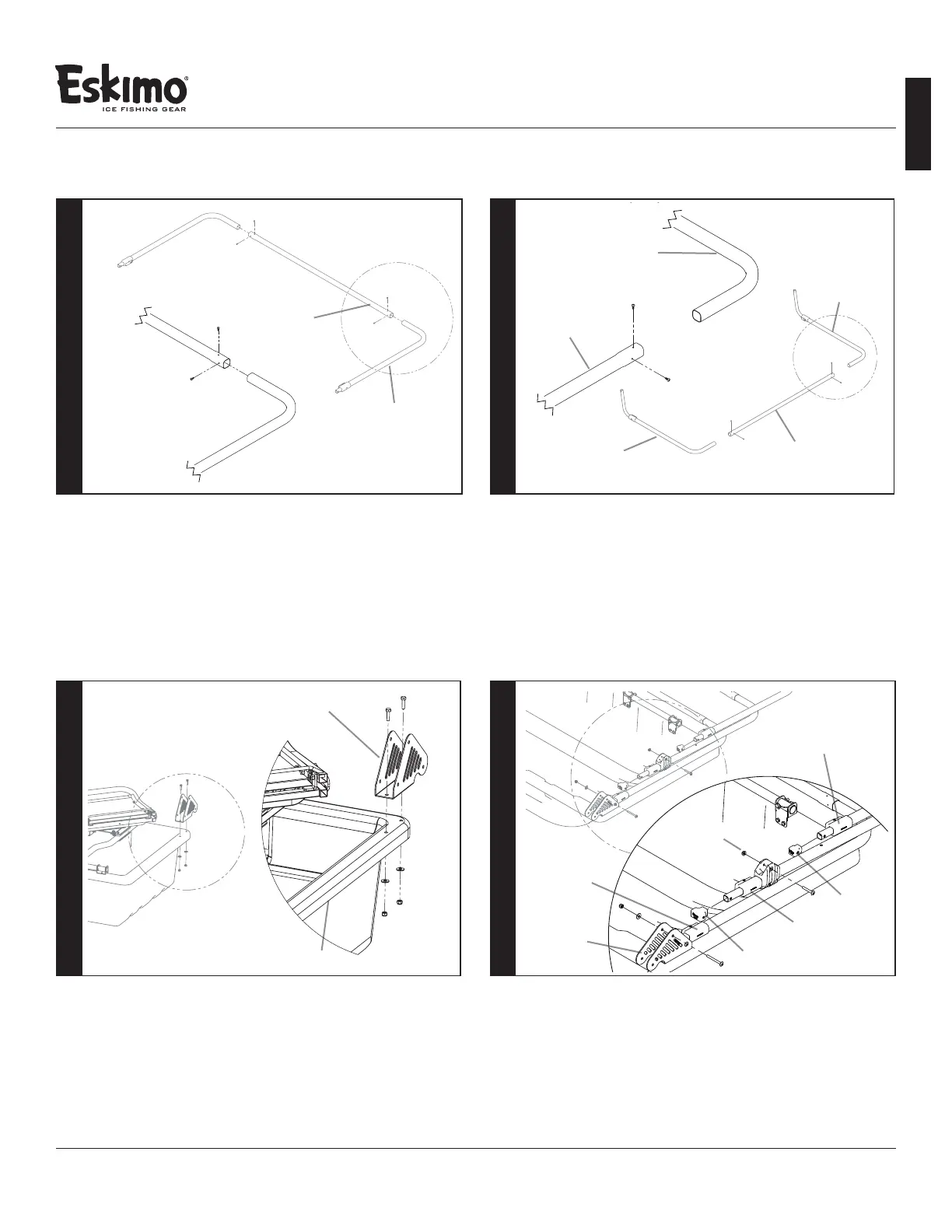

ALUMINUM FRAME ASSEMBLY
FIGURE 7
Assemble (2) #26539 assemblies to #26542 with the
included ½ IN sheet metal screws, (2) screws per side
at pre-drilled locations on #26542. Repeat this step for
(2) #36916 assemblies to #26542, and (36625/36626)
assemblies to #26542. There should be (3) total loop pole
nished assemblies when this step is complete.
#26539
#26542
SEE DETAIL
6
#30055
#36618
Assemble #36618 to #30055 using (2) 1 IN bolts,
(2) washers, and (2) nuts. Repeat step for remaining
#36618 component.
8
FIGURE 9
SEE
DETAIL
FIGURE 10
9
(A) Assemble (26539/26542) assembly to (36618) using (2) 2-½ IN Philips
drive bolts, (2) washers, and (2) nuts at the back bottom hole on #36618.
(B) Repeat above step to assemble (36625/36626/26542) assembly
(using middle top hole in #36618).
NOTE: #36642 push button should be face down.
(C) Assemble (36916/26542) to #36642 hinge on (36625/26542/36626)
using (2) #36858, (2) 1-¾ IN Philips drive bolts, (2) washers, and
(2) ange nuts.
SEE
DETAIL
(36916/26542)
ASSEMBLY
(36625/26542/36626)
ASSEMBLY
FIGURE 8
Assemble #33636 and #33635 to #26542 with the
included ½ IN sheet metal screws, (2) screws per side
at pre-drilled locations on 26542.
7
SEE
DETAIL
#33635
#26542
#26542
#33636
#33635
#36618
#27821
#36858
(26539/26542)
ASSEMBLY
FLANGE NUT
To Next Page
