Eskimo Eskape 2800 - Spreader Pole and Skin Attachment; Spreader Pole Assembly

8
Operator’s Manual
38500
|
Eskape™ 2800 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT

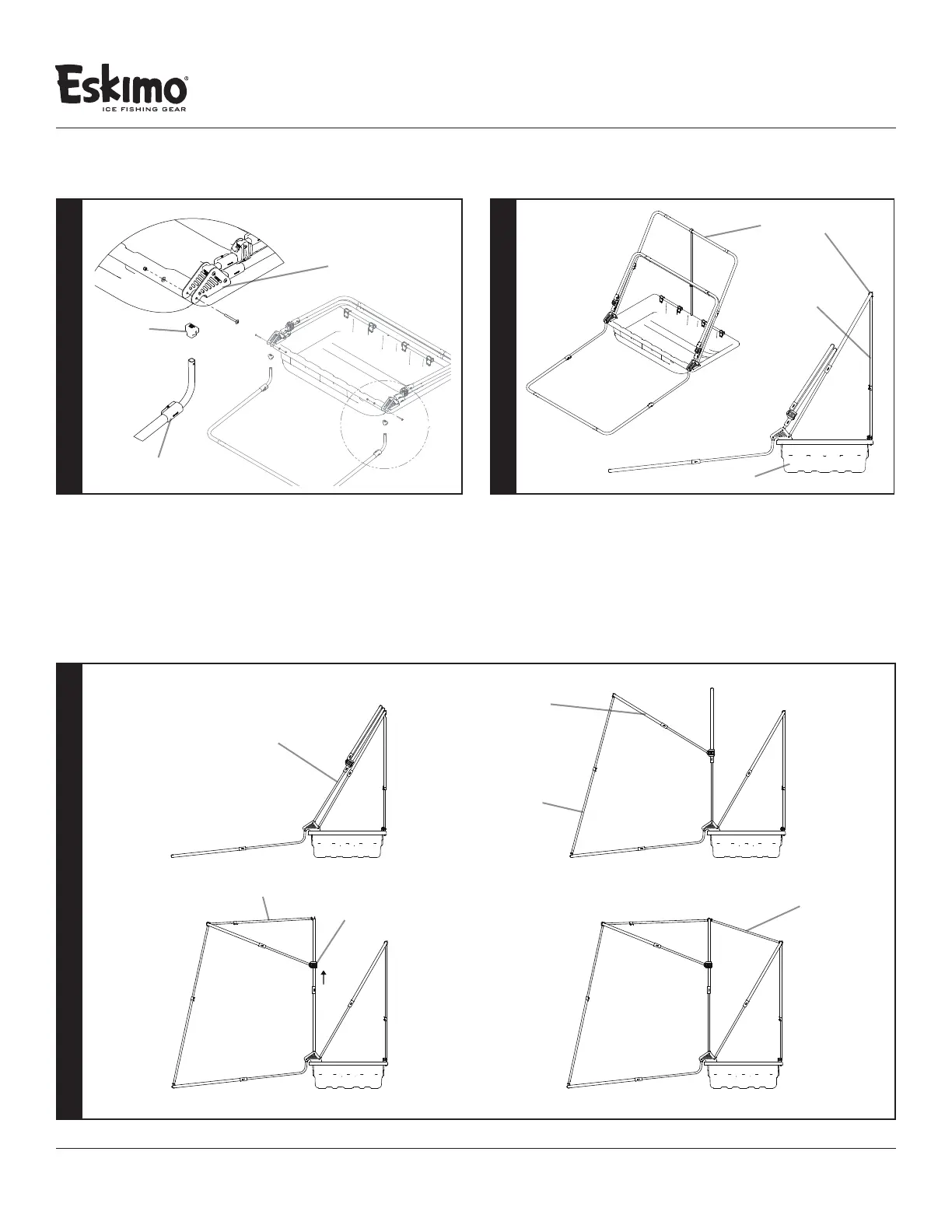

SPREADER POLE ATTACHMENT / SKIN ASSEMBLY
#27729
#36628
#26544
FIGURE 13
FIGURE 11
Assemble (33635/26542/33636) to #27821 and
#26536 using (2) 2-½ IN Philips drive bolts, (2) washers,
and (2) nuts.
10
SEE
DETAIL
FIGURE 12
(A) Attach #27730 to #30055 and (26539/26542)
as shown in Figure 12. Be sure to fully extend
(26539/26542) assembly until locked prior to
attaching #27730.
(B) Adjust height of #27730 until the (26539/26542)
assembly is tangent to the edge of #30055 as shown
in Figure 12.
11
#27730
(26539/26542)
ASSEMBLY
#30055
(33635/26542/33636)
ASSEMBLY
(36625/26542/36626)
ASSEMBLY
(36916/26542/36916)
ASSEMBLY
#26536
#27821
A
C
B
D
#36642
