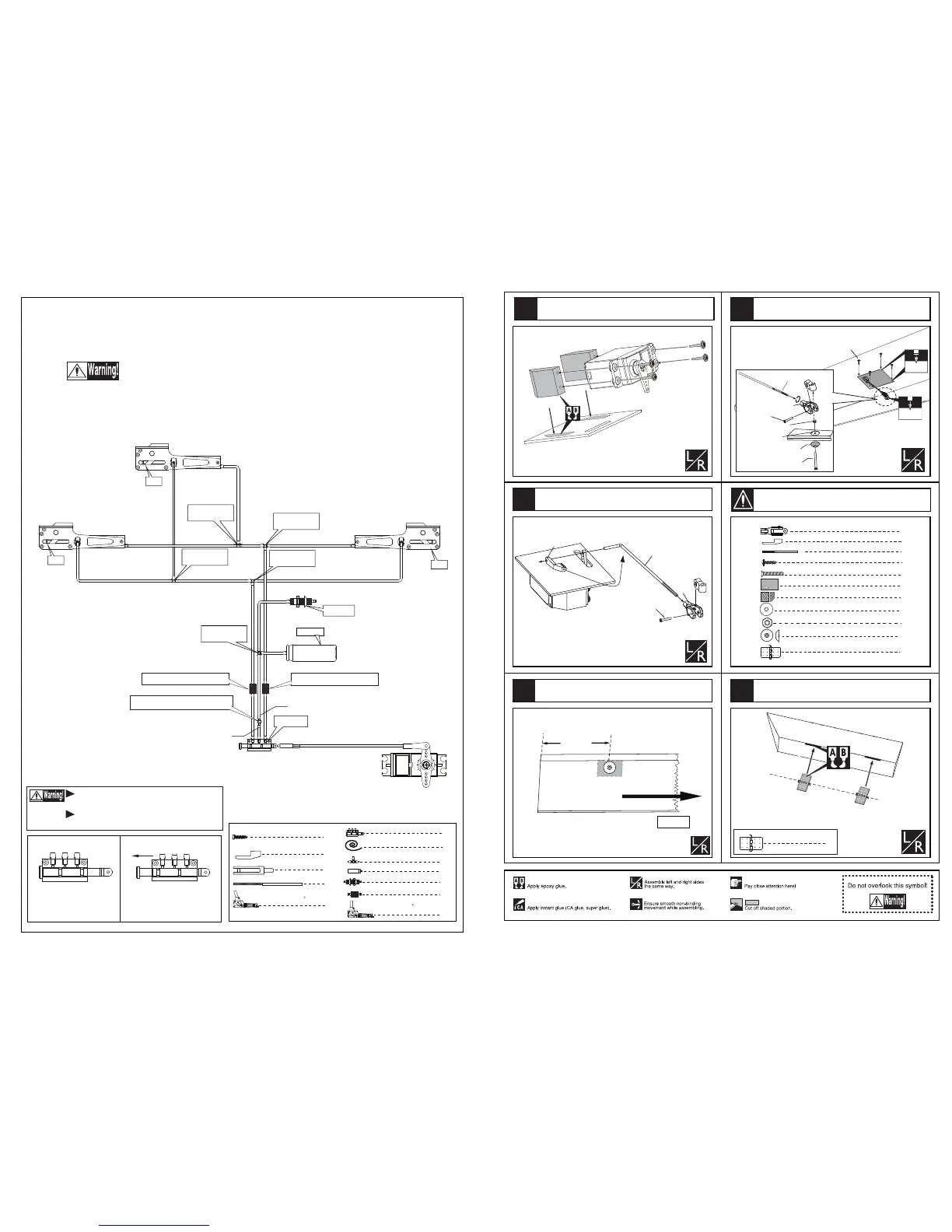

ESM F7F Tigercat - Retract System Overview and Aileron Controls; Aileron Control Linkage

142mm
wing tip
TP Screw (2.3x12mm)
3mm
1.5mm
Clevis
Retainer
Rod (2x300mm)
Screw (2x10mm)
Rod (2x300mm)
Clevis
Washer(3x15mm)
Washer
Lock Nut (3mm )
Screw (3x50mm)
Screw (2x10mm)
4
Pin hinge
(36x20x1mm)
8
2
2
2
4
2
2
2
2
Clevis
Rod (2x300mm)
Retainer
TP Screw (2.3x12mm)
Wooden Block(20x20x8mm)
Servo tray(68.5x56.5x2mm)
Screw (3x50mm)
Washer(3x15mm)
2
Washer(3x15mm)
Lock Nut (3mm )
4
Pin hinge (36x20x1mm)
Install the servo of aileron as the illustation below.
Install the nylon control horn and connect the linkage.
The position of the control horn in the flap
of the main wing will be.
Secure the servo,install the nylon control horn
and connect the linkage.
Epoxy the pin hinges to the flap of the main wing.
12
13
14
11
15
3
Accessory list for the coming installation steps.
(Option accessories)
3-way
pressure inlet
Air tank
3-way
pressure inlet
3-way
pressure inlet
3-way
pressure inlet
3-way
pressure inlet
Switch
Air inlet
Strut
Strut
Strut
Quick release connector
Make sure to assemble retracts as instructed below.
Three wheel retract system
Quick release connector
Pressure reduction inlet
Ø1.7mm
Ø0.2mm
Pleas notice the inner diameter
of eachside the pressure reduction inlet.
Please insure the sealing of theretract
system before flight .
The status when the
gear up
Pull out length of 8mm
to make gear down
Air valve
Air valve
3-way pressure inlet
5
1
Air tank
1
Air inlet
2
1
1
Air line (3000mm)
2
Quick release connector
Strut
( 90 )
1
Strut ( 110 )
Switch
Clevis
Rod (2X300mm)
1
1
1
Retainer
TP Screw(2.6x14mm)
2
