ACCESSORIES

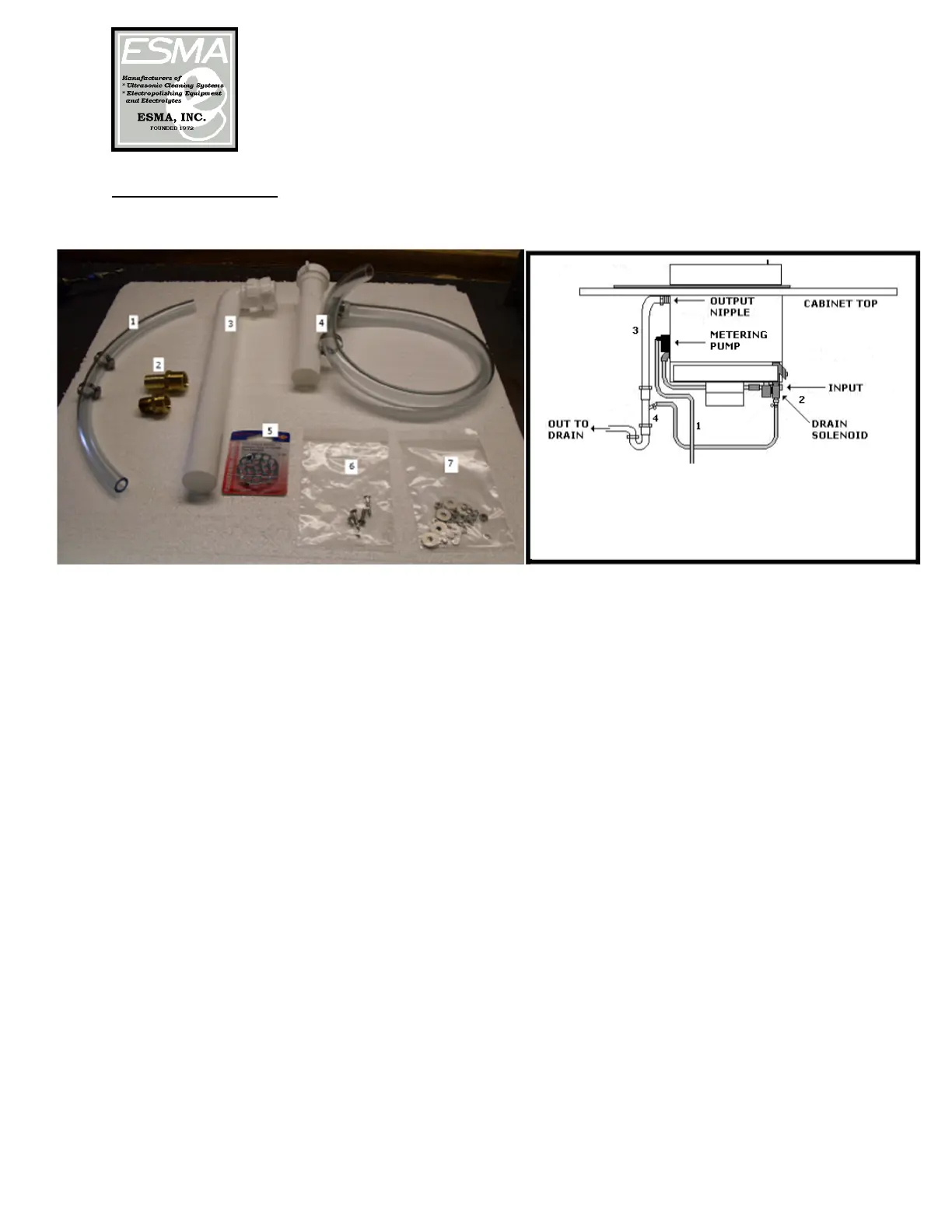

Included with your E789 Unit are the following accessories for installation.
1. ½” tubing to be inserted on the METERING PUMP barbed fitting and
secured with supplied hose clamps. This tube is to be inserted into a gallon
jug of detergent.
2. Brass fittings for INPUT valve and DRAIN SOLENOID
3. PVC Waste Arm. Connects to OUTPUT NIPPLE in
4. Branch Tailpiece. Connects to waste arm (3) and tubing connects to DRAIN
SOLENOID brass fitting
5. Overflow drain screen
6. Control Module mounting screws
7. Tank mounting screws
