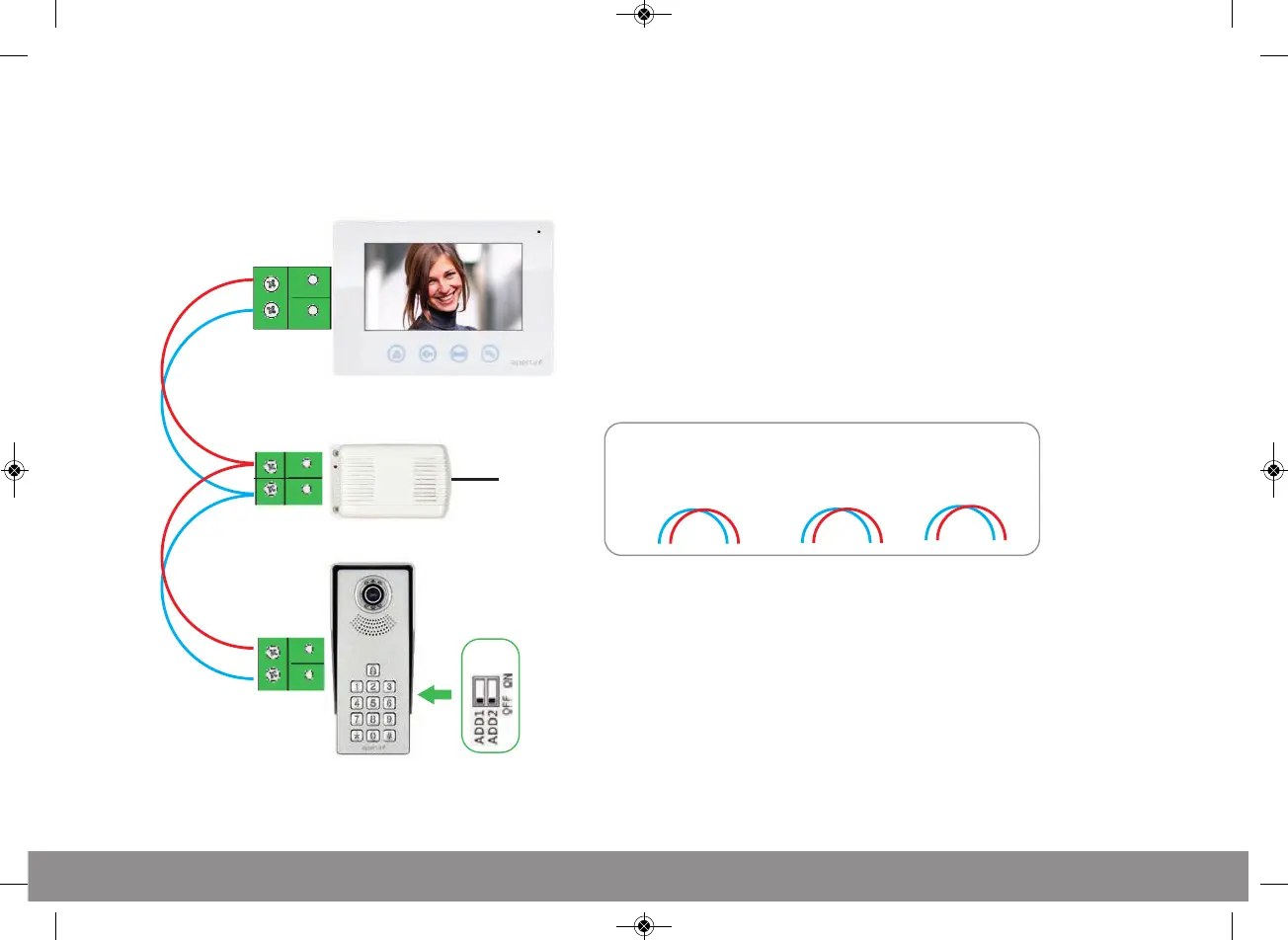

ESP Aperta APDSSWKP - System Connections Example 1

5
BUS
BUS
BUS
240vAC
INPUT
POWER
SUPPLY
Power supply to be
with-in 100 meters
of monitor
No cable
or connection
polarity
Ensure the Address ID switches are both set to OFF
Address ID
01
Total cable run
should not exceed
150 meters between
door station and monitor
Refer to instructions supplied
with monitor for MASTER/ SLAVE
configuration
MASTER
System Connections Example 1
