Espressif ESP32-S3-BOX-3 User Manual

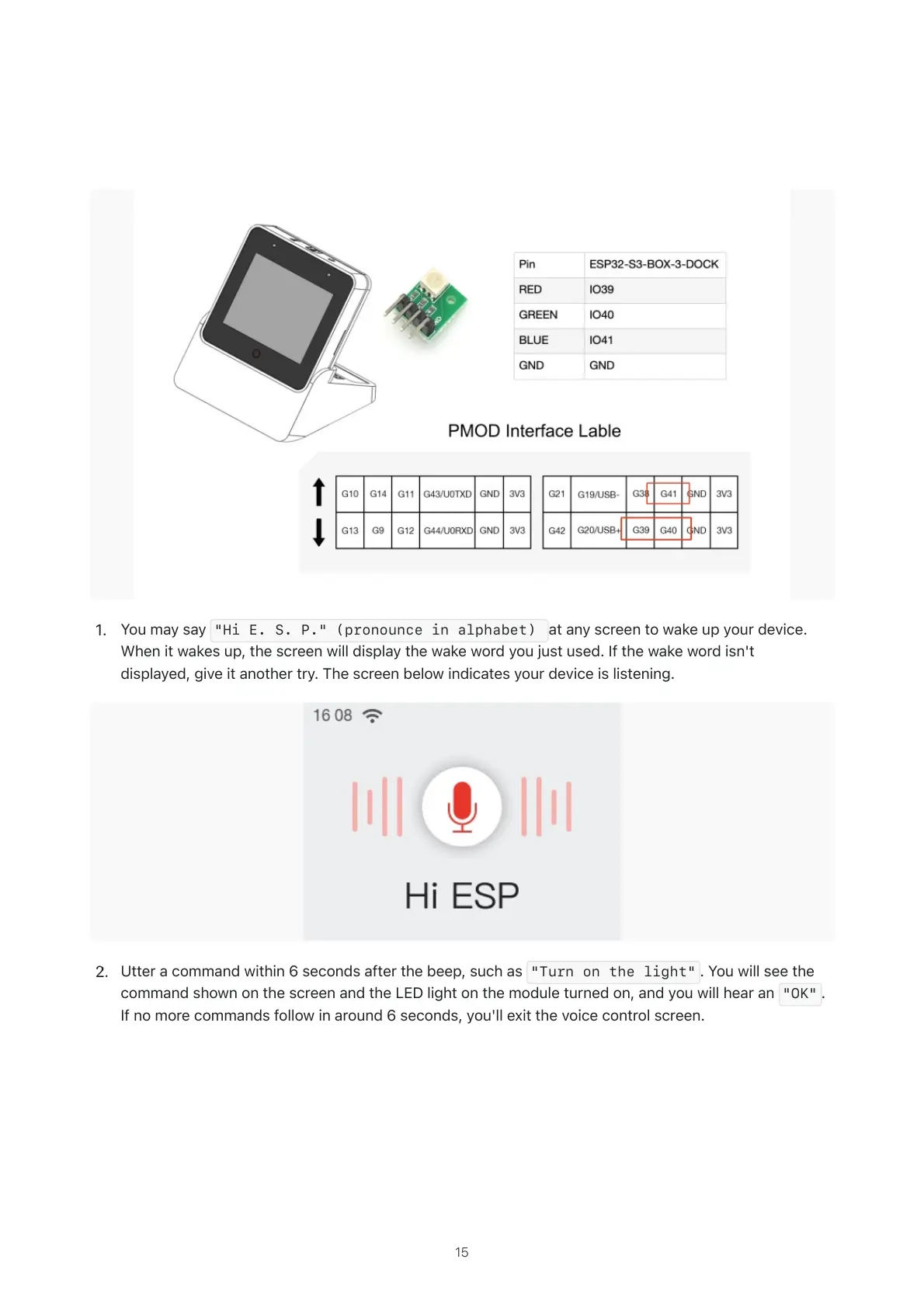

Firstly, connect the RGB LED module to your device. Refer to the pin definitions in the table below, and use
Dupont wires to connect the R, G, B, and GND pins of the RGB LED module to the female header
connector on the Pmod™ interface of the ESP32-S3-BOX-3-DOCK.
You may say "Hi E. S. P." (pronounce in alphabet) at any screen to wake up your device.
When it wakes up, the screen will display the wake word you just used. If the wake word isn't
displayed, give it another try. The screen below indicates your device is listening.
Utter a command within 6 seconds after the beep, such as "Turn on the light" . You will see the
command shown on the screen and the LED light on the module turned on, and you will hear an "OK" .
If no more commands follow in around 6 seconds, you'll exit the voice control screen.
15
