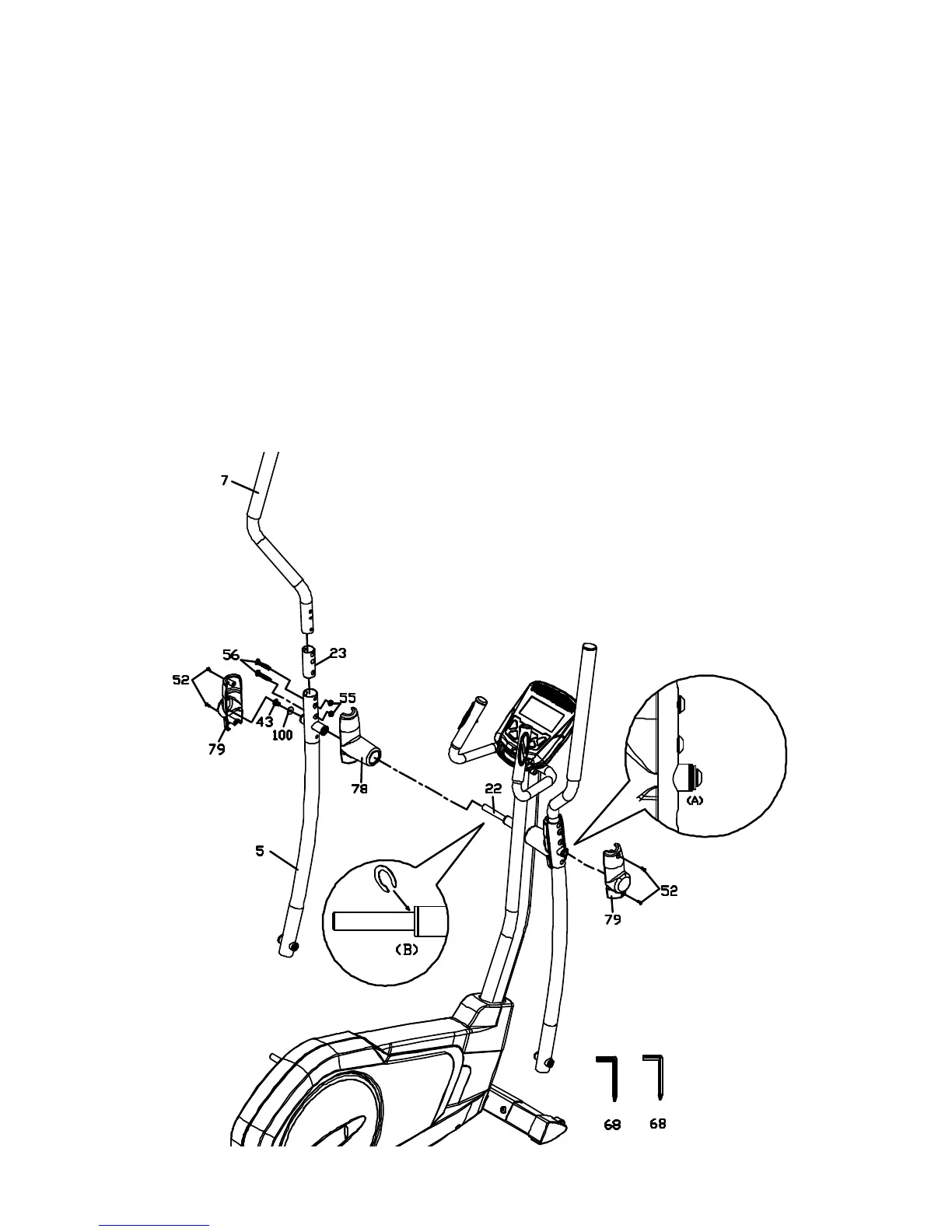

STEP 3:
1. Locate the Left Swing Arm (Upper) (7) and install it through the Swing Arm Bushing
(23) and secure to the Lower swing arm (5). Use M5 Allen Wrench (68) to tighten 2pcs
of 5/16” Button Head Socket Bolts (56) and 2pcs of 5/16" Nyloc Nuts (55) to the swing
arm assembly.
2. Locate the Inner Handle Bar Cover (78) and install on the Lower swing arm and slide
the swing arm with cover onto the axle (22). Secure the swing arm to the axle using
the M5 Allen Wrench (68) to tighten the 5/16” Button Head Socket Bolt (43) and
8.5mm x23 Flat Washer (100) on the Swing Arm Axle (22).
3. If there is seam at area A, please install C-ring at area B. Use Combination M5 Allen
Wrench & Phillips Head Screw Driver (68) to unscrew and release 5/16" × 3/4" Button
Head Socket Bolt (43) and 8.5 × 23 × 1.5T Flat Washer(100) and take apart left Lower
Handle Bar (5) together with Handle Bar Cover-A (78) to install plastic C-ring at area B,
then follow step 2 to install Handle Bar Cover-A(78) and left Lower Handle Bar (5).
Finally, install two Handle Bar Covers-B (79) and use Combination M5 Allen Wrench &
Phillips Head Screw Driver (68) to tighten 5 × 12mm Sheet Metal Screws (52).
