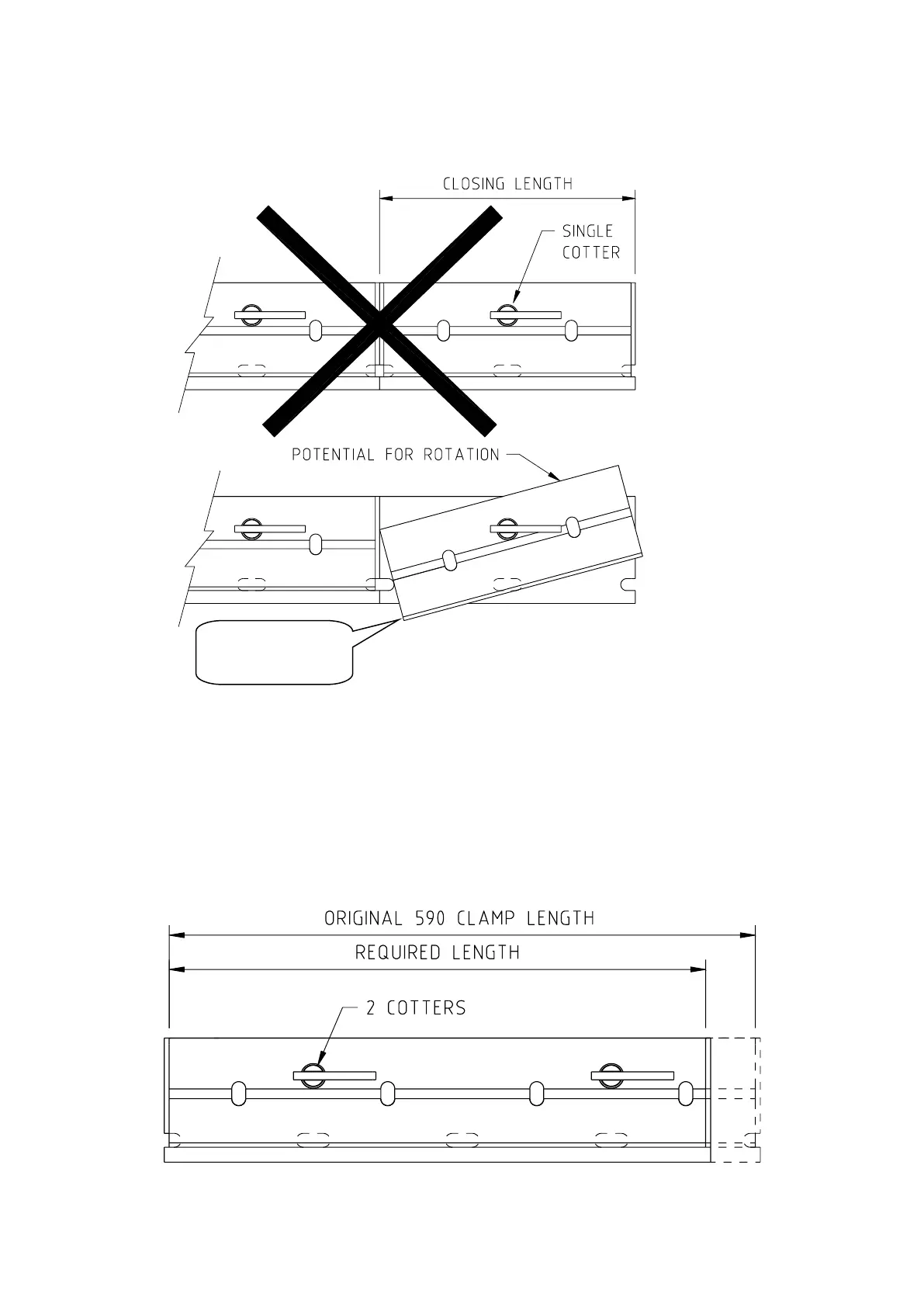

NEVER INSTALL A CLAMP PLATE WITH ONLY ONE
CAPTIVE WEDGE OR COTTER.
SEVERE BELT DAMAGE MAY RESULT.
For closing lengths less than 600mm the following procedures may be utilised:
There are four options for a smaller Clamp Plate length:
For lengths of 500-600mm, the Backplate may be trimmed to the
required length at one end only. Cut the end furthest from the previous
Backplate. Fit the Backplate as previously described. Cut the Clamp
plate at the same end.
