4. INSTALLATION INSTRUCTIONS
TOP OR REAR FLUE CONNECTION
The appliance can be installed with either a top or rear connected 6” flue. The stove comes supplied
with a top connection, so if a rear connected flue is desired, it must be converted before fitting in
place.
Before converting the stove to rear flue connection, the rear heatshield must be removed from the
stove, (by releasing the two rear fixings), and the knock out section removed. After converting the
stove to rear flue connection, the heat shield must then be reinstalled onto the stove.

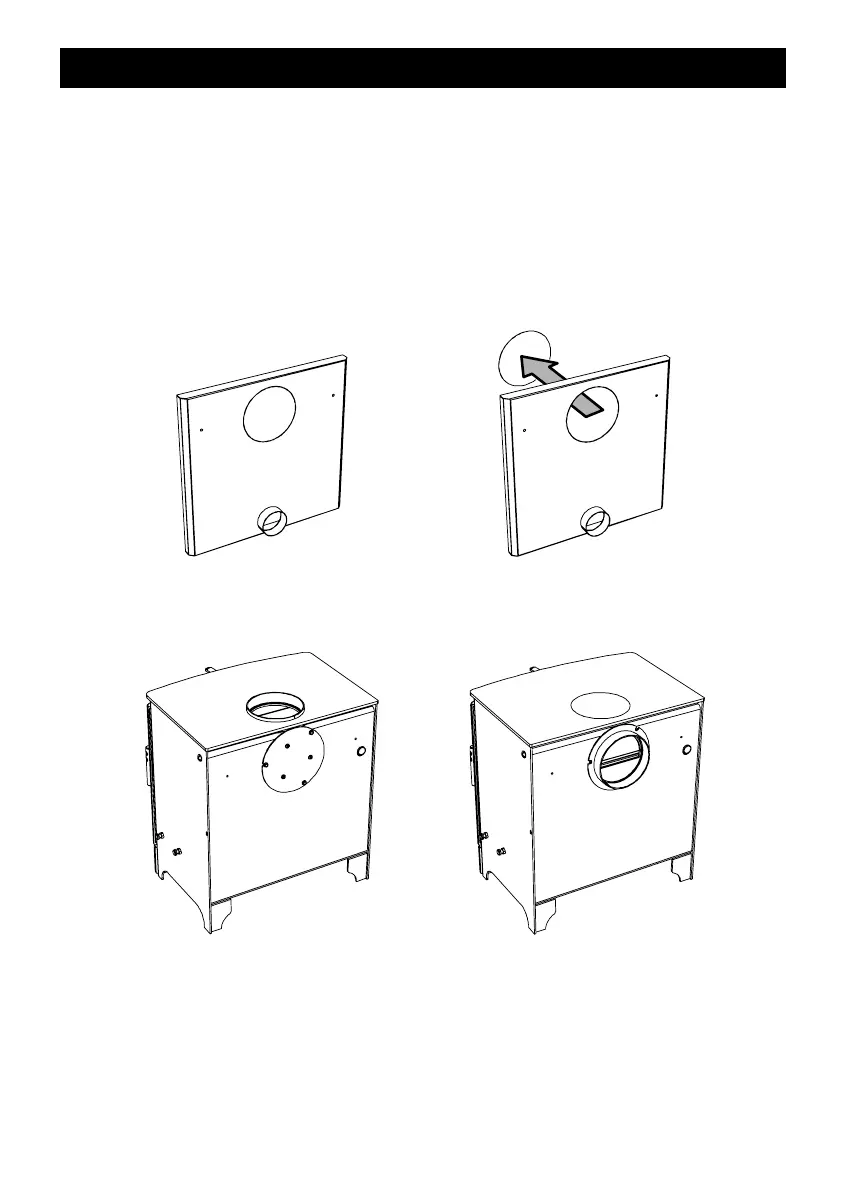

Supplied heatshield
With rear flue knockout removed
To convert the stove to rear flue connection…
Top flue connection (As factory supplied)
Rear flue connection (After conversion)
