14
BE-MSFM
www.bestbuy.com/bestbuyessentials

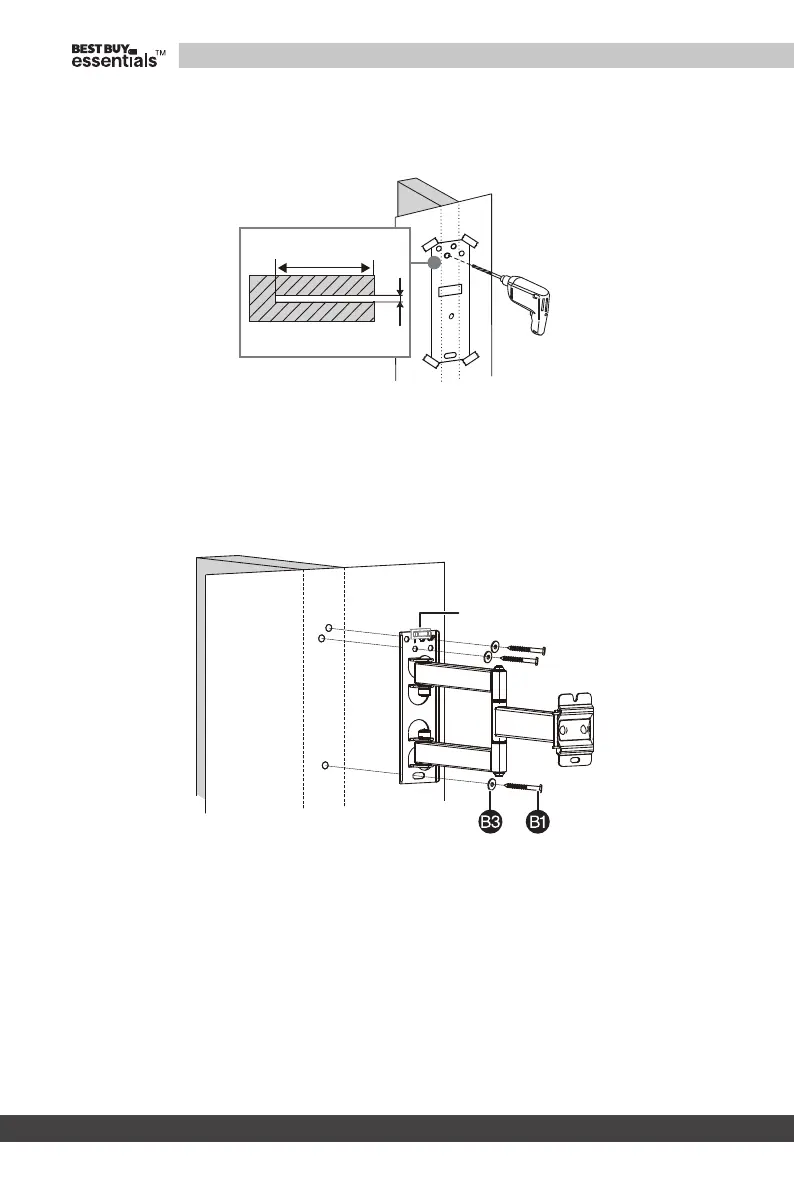

3 Drill three pilot holes through the template to a depth of 2.8 in. (70 mm) using a
3/16 in. (5 mm) drill bit, then remove the template.
4 Place the magnetic level on top of the wall plate, then align the wall plate with the
pilot holes, insert the lag bolts (B1) through the lag bolt washers (B3) and through
the holes in the wall plate. Make sure that the wall plate is level.
5 Tighten the lag bolts only until they are firm against the wall plate. Remove the
magnetic level.
Wood
stud
2.8 in. (70 mm)
3/16 in. (5 mm)
To Next Page
