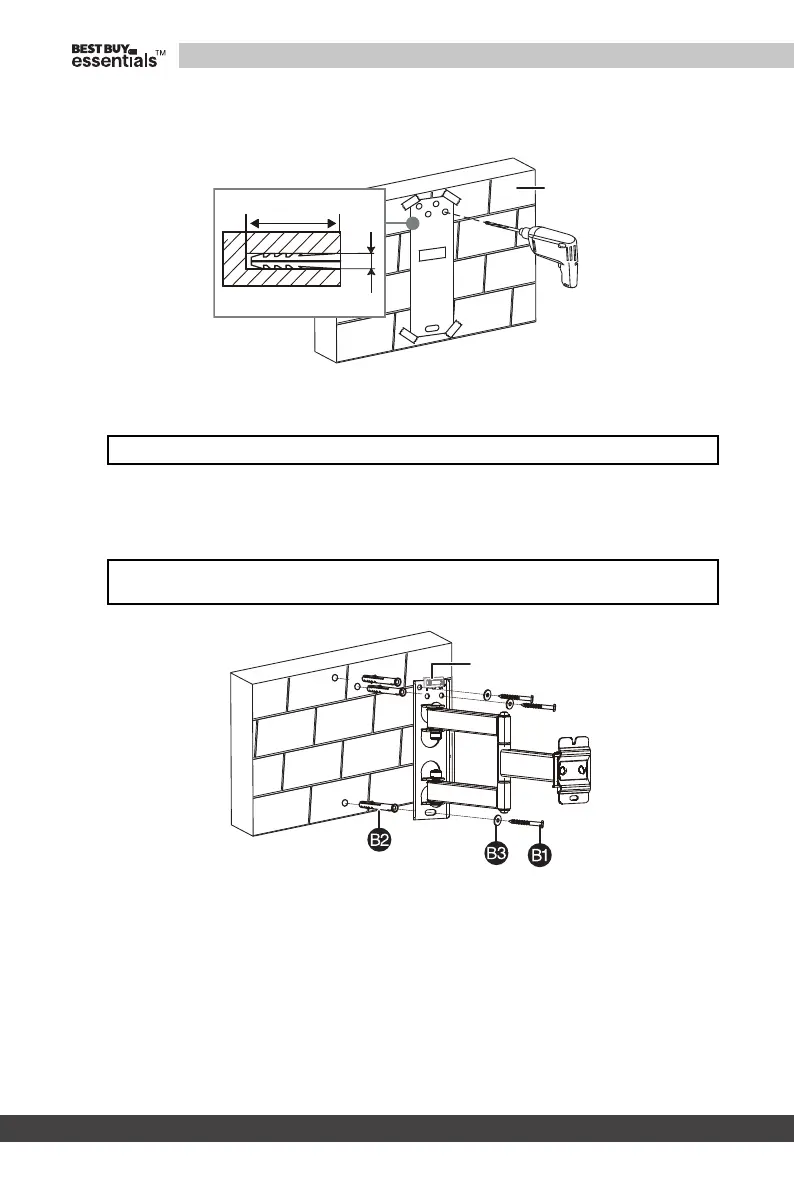

2 Drill three pilot holes through the template to a depth of 2.8 in. (70 mm) using a
3/8 in. (10 mm) diameter masonry drill bit, then remove the template.
3 Insert the concrete wall anchors (B2) into the pilot holes and use a hammer to
make sure that the anchors are flush with the concrete surface.
4 Place the magnetic level on top of the wall plate, then align the wall plate with the
anchors, insert the lag bolts (B1) through the lag bolt washers (B3) and through the
holes in the wall plate. Make sure that the wall plate is level then tighten the lag
bolts only until they are firm against the wall plate.
Important: Make sure that you drill into the center of the studs.
CAUTION: Avoid potential injuries or property damage! DO NOT over-tighten the lag
bolts (B1).
Concrete wall
2.8 in. (70 mm)
3/8 in. (10 mm)
Magnetic level
* Minimum solid concrete thickness = 8 in. (20.3 cm)
* Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
