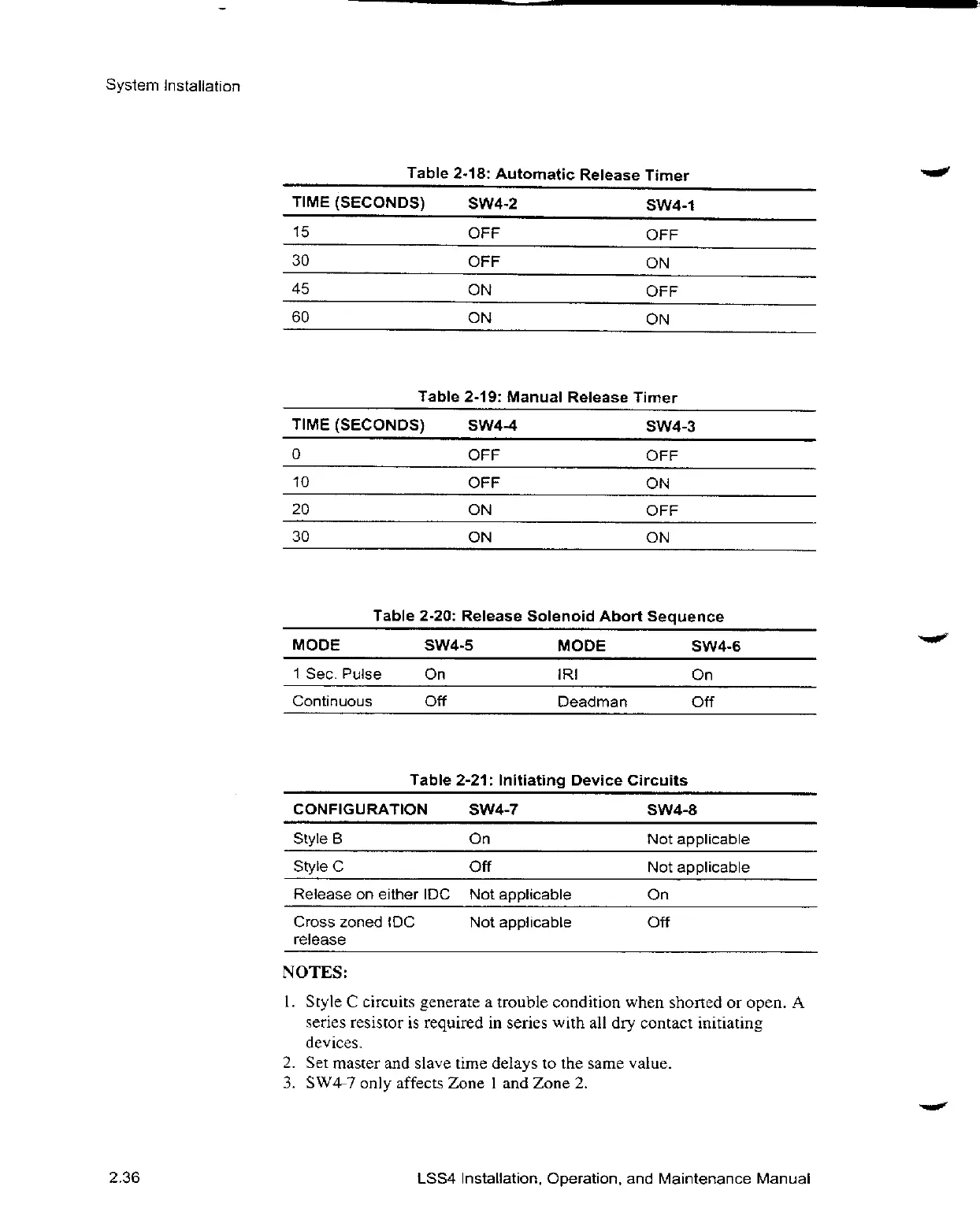

System Installation
2.36
Table 2-18: Automatic Release Timer
TIME (SECONDS) SW4-2 SW4-1
15 OFF OFF
30 OFF ON
45 ON OFF
60 ON ON
Table 2-19: Manual Release Timer
TIME (SECONDS)SW4-4 SW4-3
0 OFF OFF
10 OFF ON
20 ON OFF
30 ON ON
Table 2-20: Release Solenoid Abort Sequence
MODE SW4-5 MODE SW4-6
1 Sec. Pulse On IRI On
Continuous Off DeadmanOff
Table 2-21: Initiating Device Circuits
CONFIGURATION SW4-7 SW4-8
StyleB On Not applicable
StyleC Off Not applicable
Releaseon eitherIDC Not applicable On
Cross zonedIDC Not applicable Off
release
NOTES:
1. StyleC circuits generatea trouble condition when shootedor open.A
series resistor is required in series with all dry contact initiating
devices.
2. Set masterand slave time delaystothe same value.
3. SWm7 only affects Zone1and Zone 2.
