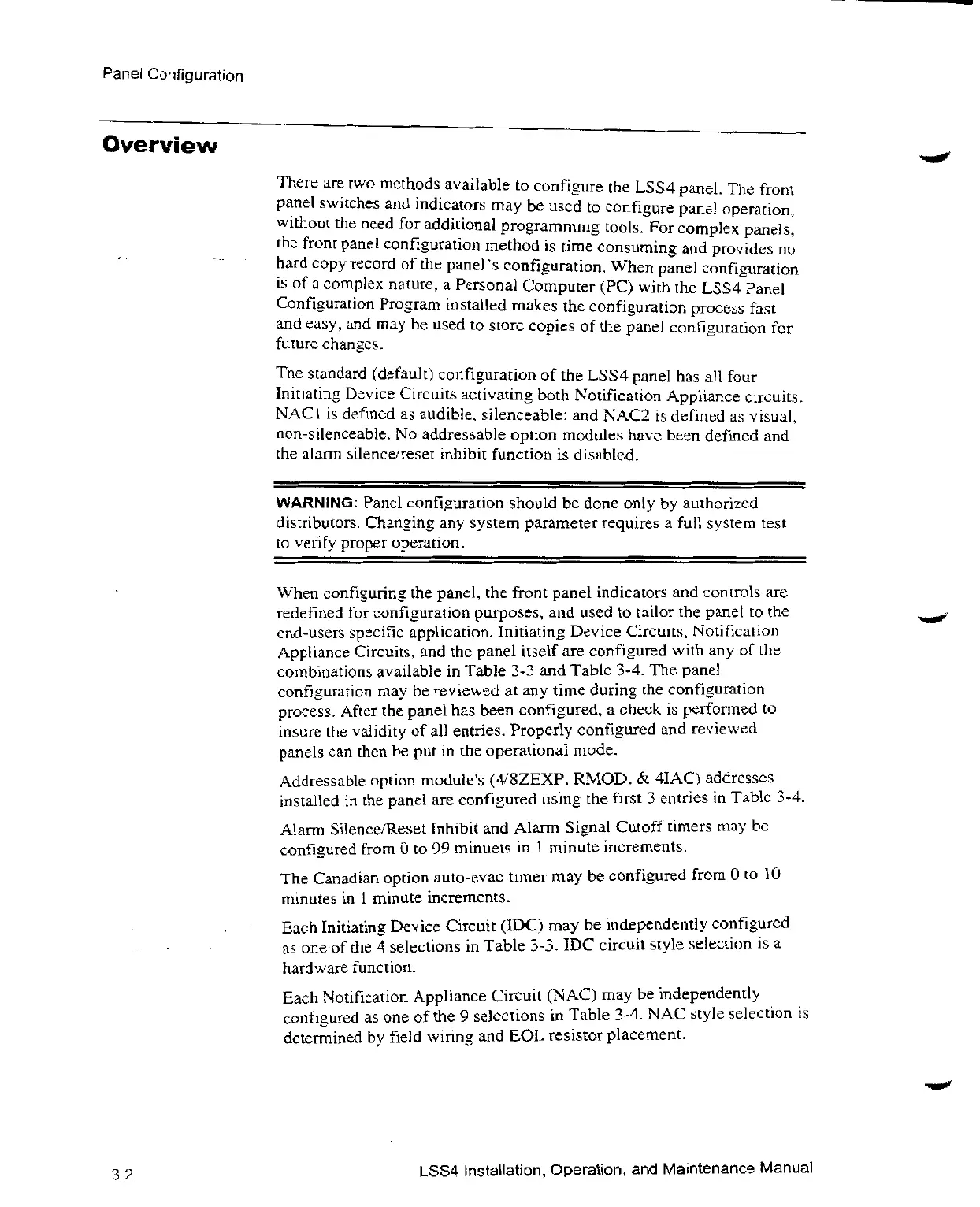

Panel
Configuration
Overview
32
Therearetwo
methods
avail
ableto
configurethe
LSS4
panel.
The
front
panel
switchesand
indicatorsmay be
usedto
configurepanel
operation,
without
the
the
needfor
additional
programming
tools.For
complex
panel
s,
front
panel
confi•guration
method
is
time
consumingand
providesno
hard
copy
recordofthe
panels
configuration.
When
panel
configuration
is of a
complex
nature,a
Personal
Computer
(PC)
withthe
LSS4
Panel
Confi•_uration
Program
installed
makesthe
confieuration
process
fast
and
easy,and may be
usedto
store
copiesofthepanel
configurationfor
future
changes.
The
standard
(defaul
t)
configurationofthe
LSS4
panelhas
all
four
Initiating
Device
Circuitsactivating
both
Notification
Appliance
circuits.
NAC 1
is
definedas
audible,
silenceable;and
NAC2
is
definedasv
isual,
non-silenceable.No
addressable
option
modules
havebeen
definedand
the
alarm
silenced
resetinhibit
function
is
disabled.
WARNlt4G:
Panel
configuration
shouldbe
doneonlj by
authorized
distributors.
Chan•_ingany
system
parameter
requiresa
full
system
test
to
verify
proper
operation.
When
configurinq•the
panel,the
front
panel
indicatorsand
controlsare
redefinedfor
configuration
purposes,and
usedto
tailorthe
paneltothe
end-users
specific
application.
Initiating
Device
Circuits.
Notification
Appliance
Circuits,and the
panel
itself are
confi
cured
withanj ofthe
combinations
availablein
Table3-3and
Table
3-4.The
panel
confiq•urationmay be
reviewedatanytime
duringthe
confl
uration
process.
Afterthe
panelhas
been
configured,a
check
is
performedto
insutethe
validityof
all
entries.
Properly
configuredand
reviewed
panelscan
thenbeputinthe
operational
mode.
Addressable
option
module's
(4/8ZEXP,
RMOD,&
4IAC)
addresses
installed
in the
panelare
configured
usingthe
first3
entriesin
Table
3-4.
Alarm
Silence/Reset
Inhibitand
Alarm
Signal
Cutoff
timersmay be
config•ured
from0 to99
minuetsin1
minute
increments.
The
Canadian
option
auto-evac
timermay be
configured
from0 toIO
minutesin1
minute
increments.
Each
Initiating
Device
Circuit
(IDC)maybe
independently
configured
asoneofthe4
selectionsin
Table
3-3.IDC c
ircuit
style
selection
isa
hardware
function.
Each
Notification
Appliance
Circuit
(NAC)maybe
independently
confizutedasoneofthe9
selectionsin
Table
3-4.NAC
style
selection
is
determinedby
field
wiringandEOL
resistor
placement.
LSS4
Installation,
Operation,and
Maintenance
Manual
