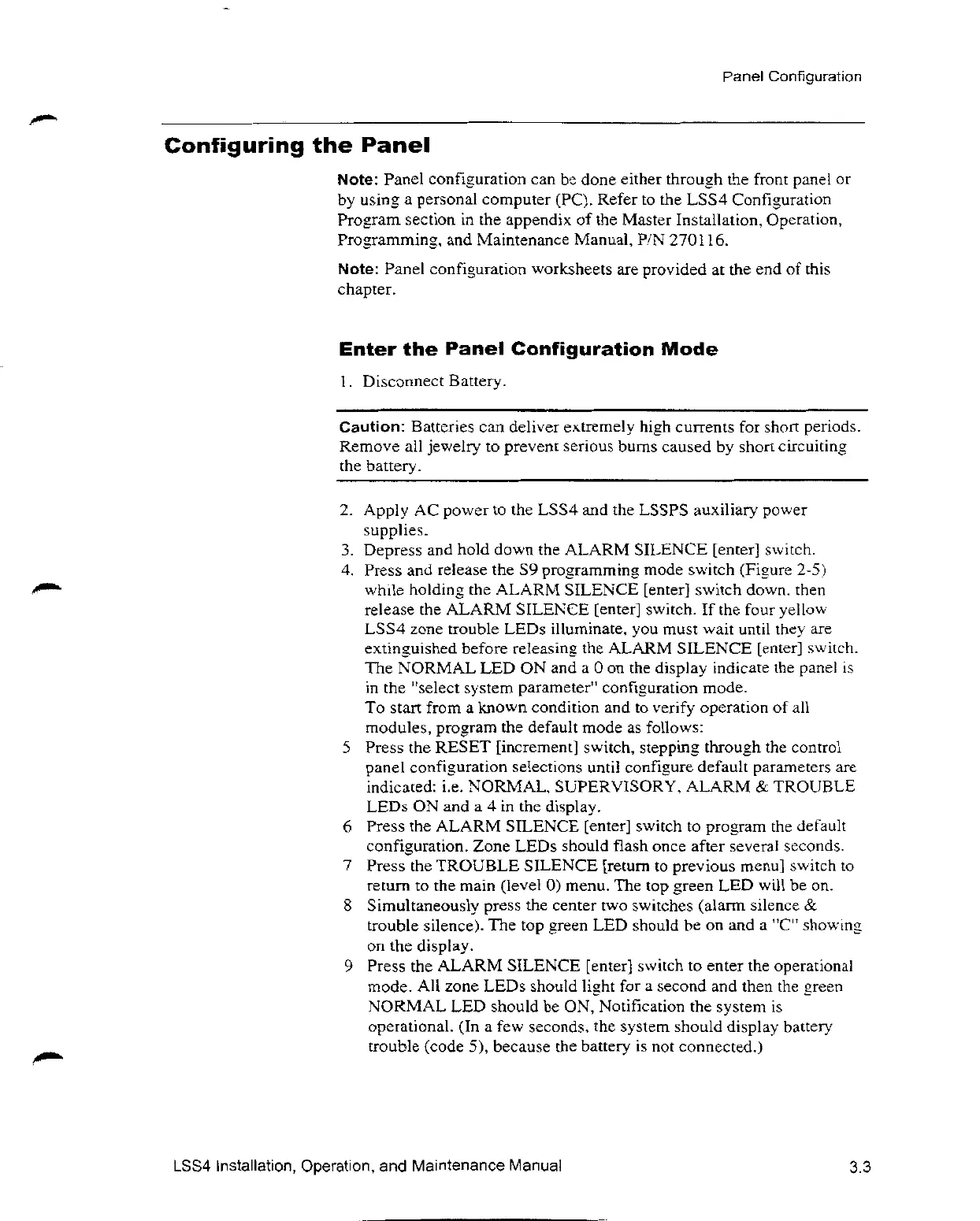

EST LSS4 - Page 68

Configuringthe
Panel
Panel
Configuration
Note:
Panel
configurationcanbe
done
either
throughthe
front
panelor
by
us1n_a
personal
computer
(PC).
Refertothe
LSS4
Configuration
Program
section
in the
appendixofthe
Master
Instnllation,
Operation,
Programming,and
MaintenanceManual,P N 270116.
Note:
Panel
configuration
worksheetsare
providedattheendof
this
chapter.
Enterthe
Panel
Configuration
Mode
1.
Disconnect
Battery.
Caution:
Batteriescan
deliver
extremely
high
currentsfor
short
periods.
Remove
all
jewelryto
prevent
serious
bums
causedby
short
circuitinz
thebattery.
2.
ApplyAC
powertothe
LSS4andthe
LSSPS
auxiliary
pow'er
supplies.
3.
Depressand
hold
downthe
ALARM
SILENCE
[enter]
sw'itch.
4.
Pressand
releasetheS9
programminp•
mode
switch
(Fieure
2-5)
while
holding the
ALARM
SILENCE
[enter]
switch
down.
then
releasethe
ALARMS
ILENCE
(enter)
switch.Ifthe
four
yellow
LSS4
zone
lrouble
LEDs
illuminate,you
must
wait
until
theyare
extinguished
before
releasingthe
ALARM
SILENCE
[enter]
sw‘itch.
The
NORMALLEDONanda0onthe
display
indicatethe
panel
is
in the
"select
system
parameter"
configuration
mode.
To
start
froma
known
conditionandto
x'erify
operationof
all
modules,
programthe
default
modeas
follows.
5
Pressthe
RESET
[increment]
switch,
stepping
throughthe
control
panel
confi
•_uration
selections
until
configure
default
parametersare
indicated:
i.e.
NORMAL,
SUPERVISORY,
ALARM&
TROUBLE
LEDsONanda4inthe
display.
6
Pressthe
ALARM
SILENCE
[enter]
switchto
prog•ramthe
default
configuration.
Zone
LEDS
should
flash
once
after
several
seconds.
7
Pressthe
TROUBLES
ILENCE
[returnto
previous
menu]so
itchto
returntothe
main
(level0)
menu.Thetop
greenLED
willbe on.
8
Simultaneously
pressthe
centertwo
switches
(alarm
silence&
trouble
silence).The top
greenLED
shouldbeonanda "C"
shou’in3
onthe
display.
9
Pressthe
ALARM
SILENCE
[enter]
switchto
enterthe
operational
mode.All
zone
LEDs
should
li_•h1 for a
secondand
thenthe
green
NORMALLED
shouldbeON,
Notificationthe
system
is
operational.(Ina few
seconds,the
system
should
display
battery
trouble
(code5),
becausethe
battery
is not
connected.1
LSS4
Installation,
Operation,and
Maintenance
Manual 3.3
