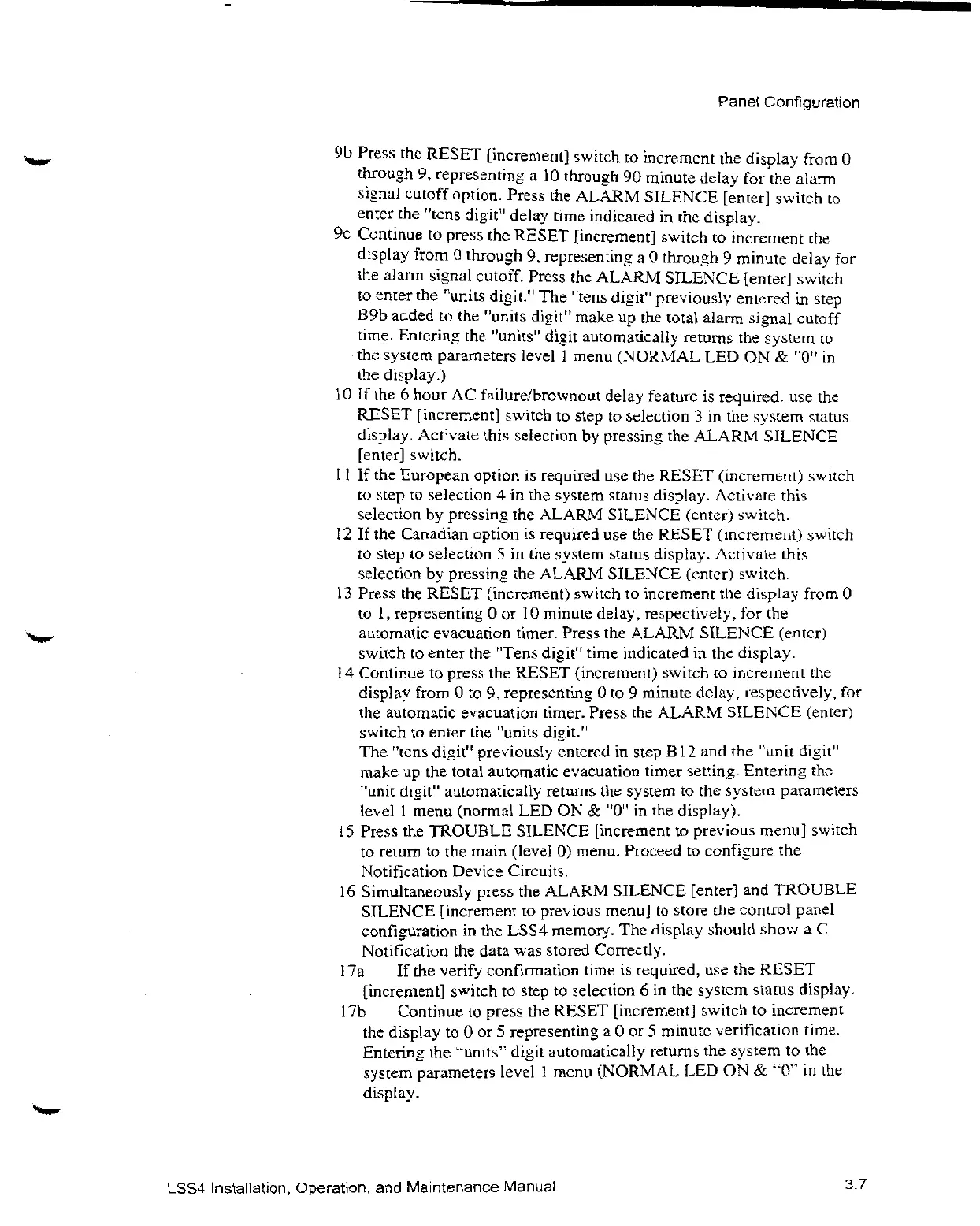

EST LSS4 - Page 72

9b
9c
10
1I
13
14
Panel
Configuration
Press
the
RESET
[increment]sw
itChto
incrementthe
display
from
through
9,
representinga 10
through90
minute
delayforthe
alarm
signal
cutoff
option.
Pressthe
ALARM
SILENCE
[enter]sw itchto
enterthe
"tens
digit"
delay
time
indicatedinthe
display.
Continueto
pressthe
RESET
[increment]
switchto
incrementthe
0
display
from0
through9,
representinga0
through9
minute
delayfor
the
alarm
signal
cutoff.
Pressthe
ALAR.M
SILENCE
[enter]
switch
to
enterthe
"units
digit."The
"tens
digit"
previously
enteredin
step
B9b
addedtothe"un
its
digit"
makeupthe
total
alarm
st
gnal
cutoff
time.
Enterin_•the
"units"
digit
automatically
returnsthe
systemto
the
system
parameters
level1
menu
(NORMALLEDON&"0"in
the
display.)
Ifthe6
hourAC
failure/brownout
delay
feature
is
required.usethe
RESET
[increment
l
switchto
stepto
selection3 inthe
system
status
display.
Activate
this
selectionby
pressin_•the
ALARM
SILENCE
[enter]
switch.
Ifthe
European
option
is
requiredusethe
RESET
(increment)sw
itch
to
stepto
selection4 inthe
system
status
display.
Activate
this
selectionby
pressingthe
ALARM
SILENCE
(enter)so
itch.
If the
Canadian
option
is
requiredusethe
RESET
(increment)sw
inch
to
stepto
selection5 inthe
system
status
display.
Activate
this
selectionby
pressingthe
ALARM
SILENCE
(enter)
switch.
Pressthe
RESET
(increment)
switchto
incrementthe
display
from0
to
1,
representing0 or 10
minute
delay,
respectively,forthe
automatic
evacuation
timer.
Pressthe
ALARM
SILENCE
(enter)
switchto
enterthe
"Tens
digit"
time
indicatedinthe
display.
Continueto
pressthe
RESET
(increment)
switchto
incrementthe
display
from0 to9,
representing0 to9
minute
delay,
respectively.for
the
automaticevacuation
timer.
Pressihe
ALARM
SILENCE
(enter)
switchto
enterthe
"units
digit."
The
"tens
digit"
previously
enteredin
stepB 12 and the"un
it
digit"
makeupthe
total
automatic
evacuation
timer
setting.
Enteringthe
"unit
di.•it"
automatically
returnsthe
systemtothe
system
parameters
level1
menu
(normalLED OF& "0"inthe
display).
15
Pressthe
TROUBLE
SILENCE
[incrementto
prey
ious
menuJ
switch
to
returntothe
main
(level0)
menu.
Proceedto
conf*urethe
Notification
Device
Circuits.
16
Simultaneously
pressthe
ALARM
SILENCE
enter]and
TROUBLE
SILENCE
[incrementto
previous
menu]to
storethe
control
panel
confieurationinthe
LSS4
memory.The
display
should
showaC
Notificationthe
datawas
stored
Correctly.
17a Ifthe
verify
confirmation
time
is
required,usethe
RESET
(increment]
switchto
stepto
selection6 inthe
system
status
display.
17b
Continueto
pressthe
RESET
[increment}
switchto
increment
the
displayto0 or5
representinga0 or5
minute
verification
time.
Enteringthe
"units"
digit
automatically
returnsthe
systemtothe
system
parameters
levelI
menu
(NORMALLEDON&"0"
in the
display.
