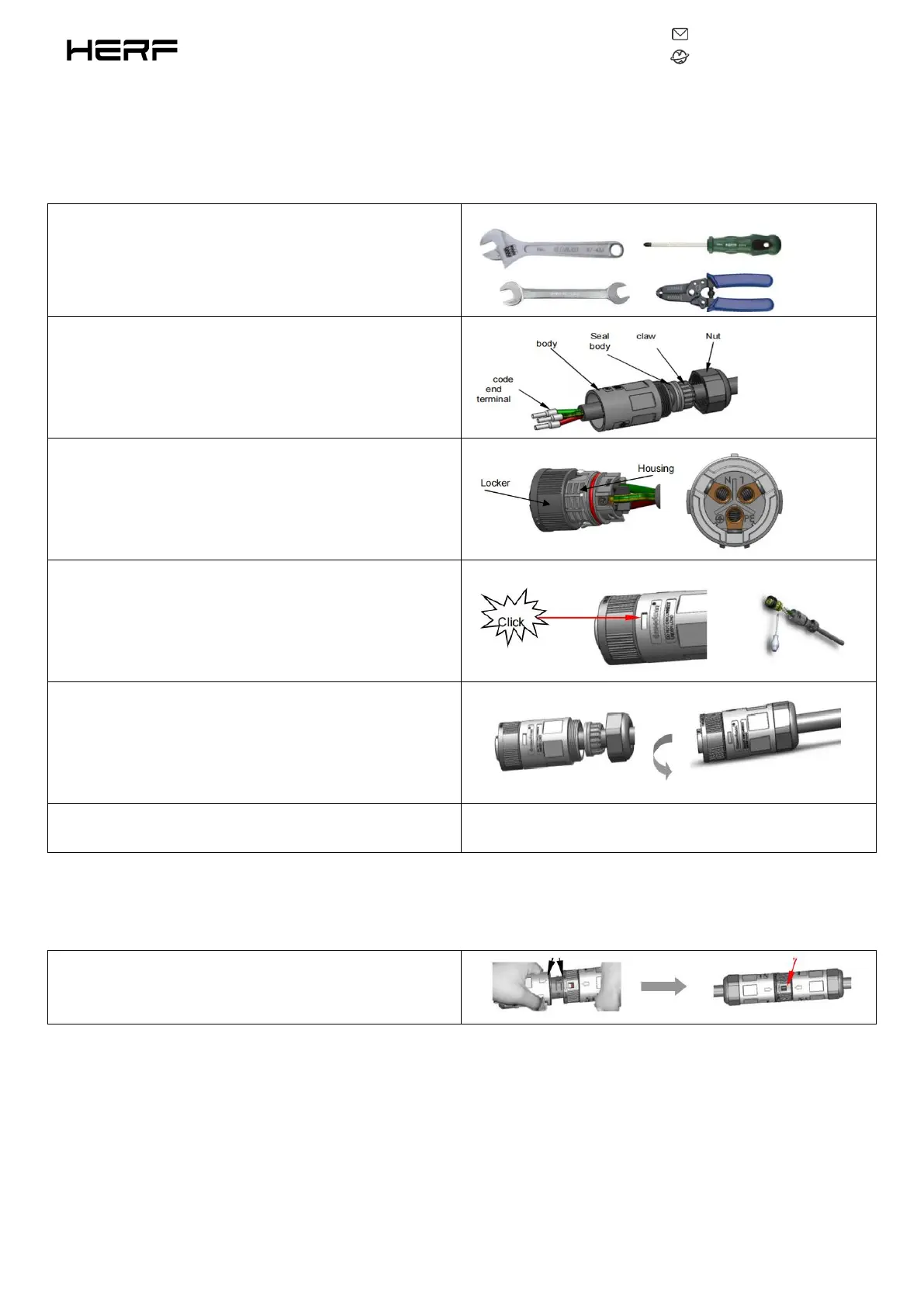

4.5.3Step 3. Connect AC End Cable
A) Installation of cable end connector.
Solid wrench No.30 or monkey wrench wide than 3cm
、
Cross screwdriver No.1
、
Wire striper.
a). Disassemble the connector and thread the cable through
the waterproof cap and connector housing
b).Connect the cable to the terminal, and the screw torque
is 0.8 + / - 0.1N · m
c). Push Housing into Body
d). Insert Seal and Clamp Finger into body, then tighten the
nut, torque 2.5+/-0.5N·m
e). Installation of cable end male connector is the same as
female connector
Note: An electrical test should be done, to ensure that the connector has been installed correctly.
B) Connect the AC end cable with the AC branch circuit
a).Mating male and female connector: Push the plug into
the socket completely, then rotate the locker according to
the direction instructed by the marks on the locker
