Etatron DLX-MF/M - Liquid Ends Materials

• 32 •
2.3 - LIQUID ENDS MATERIALS
- DIAPHRAGM: PTFE
- PUMP HEAD: Polypropylene; upon request: PVC, 316 Stainless Steel, PTFE, PVDF.
- NIPPLES: polypropylene
- FILTER: polypropylene
- INJECTION NIPPLE: polypropylene
- SUCTION HOSE: PVC - flexible
- DISCHARGE HOSE: polyethylene
- VALVES: “lip”type FPM (Viton
®
) upon request available in EPDM (Dutral
®
), NBR, Silycon.
- “Ball Check” VALVES upon request type in SS 316 and Glass PYREX. Available with Spring Return and
“KALRETZ”Valve.
-
SEALS: FPM (Viton
®
) upon request EPDM (Dutral
®
), NBR, Silycon, PTFE only for ball checks valves

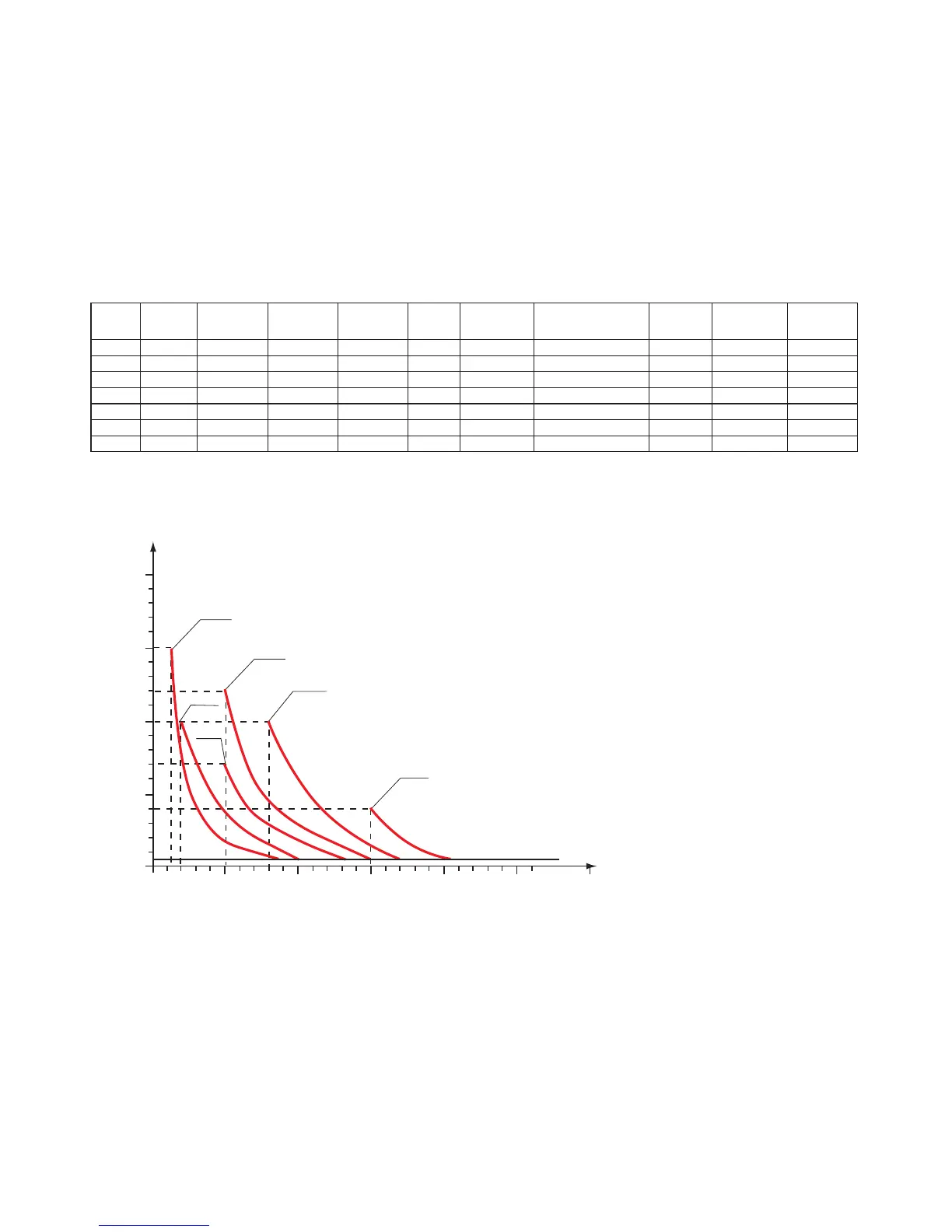

The diagrams of fig. 3 indicate max metering pump flow variation in relation to the working pressure in the
plant; the diagrams also include injection valve losses. I.V.P.
Due to production requirements the technical characteristics of our equipment at maximum ratings can vary
with a tolerance of 5% which must be taken into account when choosing the type of pump.
i.v.p.
bar
20
10
15
5
0
05 1015 20
l/h
02-10
05-07
01-15
05-12
08-10
15-04
Fig. 2
Fig. 3
MAIN FEATURES
Tipo
Type
Portata max
Max flow
Pressione max
Max press
Max imp./min.
Max imp./min.
Dosaggio per imp.
Output per stroke
Corsa
Stroke
Altez. aspiraz.
Suction height
Aliment. elettr. standard
Standard power supply
Potenza ass.
Power consum.
Corrente ass.
Current consum.
Peso netto
Net weight
l/h bar ml mm m
Volts - Hz
Watts Ampere kg
01-15
1 15 120 0.14 0.80 2.0
230 V 50 - 60 Hz
37 0.16 2.3
02-10
2 10 120 0.27 0.80 2.0
230 V 50 - 60 Hz
37 0.16 2.3
05-07
5 07 120 0.70 1.00 2.0
230 V 50 - 60 Hz
37 0.16 2.3
05-12
5 12 120 0,70 1.00 2.0
230 V 50 - 60 Hz
58 0.25 2.9
08-10
8 10 120 1.11 1.40 2.0
230 V 50 - 60 Hz
58 0.25 2.9
15-04
15 04 120 2.08 2.20 2.0
230 V 50 - 60 Hz
58 0.25 2.9
