ETC Setup and Connect Guide
Paradigm 18 inch Touchscreen
P-TS18 Touchscreen Page 9 of 15 ETC

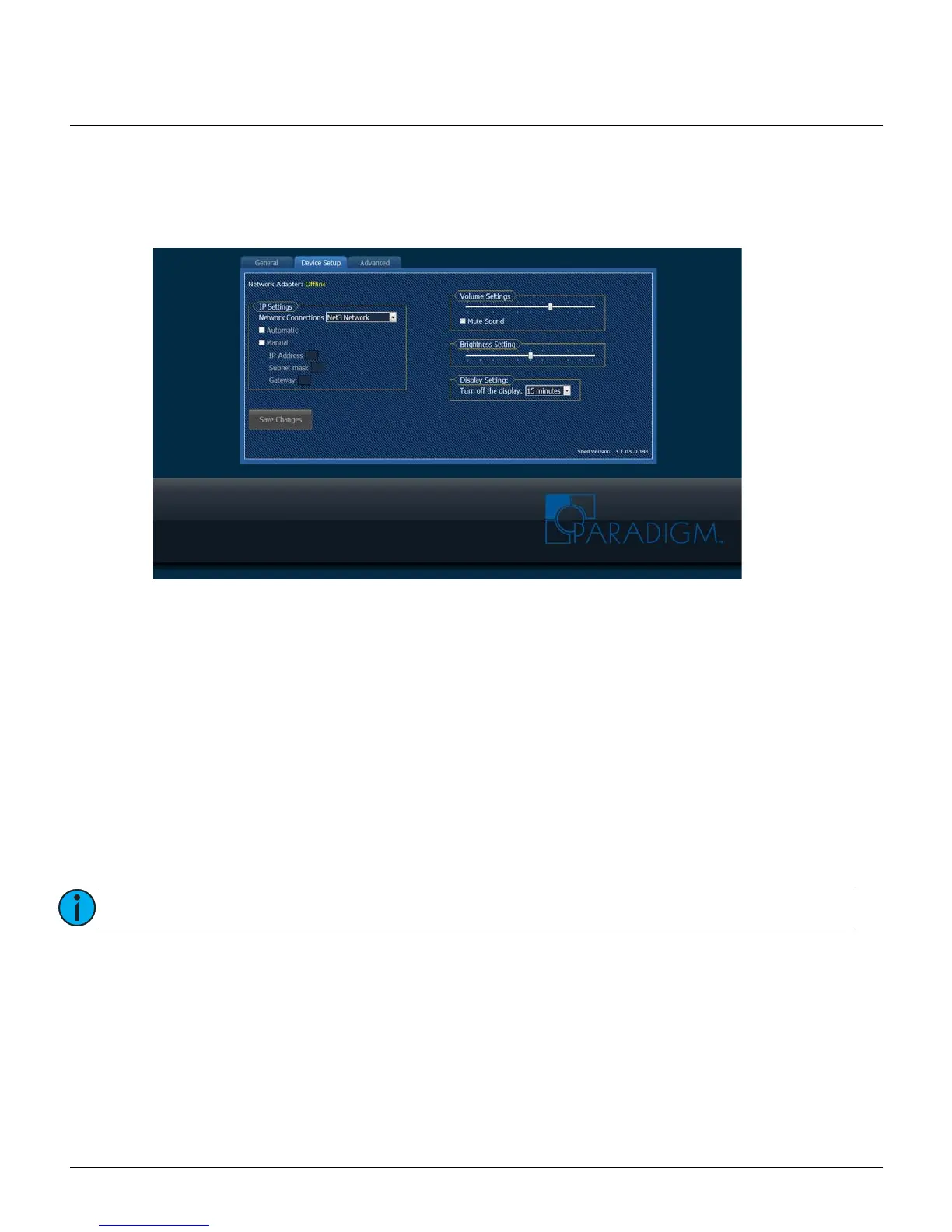

Device Setup Tab
Common settings that are required to set up your Paradigm 18 inch Touchscreen including the Network
Connection, IP Address, Subnet mask, Gateway, and Volume and Brightness Settings are available on the
“Device Setup” tab.
Network Adaptor and IP Settings
The “Network Adapter” status on the top of the screen indicates whether a valid Paradigm network is
Online
or
Offline
.
The section for “IP Settings” provides TCP/IP v4 settings for the Paradigm 18 inch Touchscreen.
• Network Connections - always defaults to “Net3 Network”, which is the left-most RJ-45 connector
while viewing the back of the unit, which is where the P-TS18 should be connected.
• Settings for the other network connector can be edited if that interface is used instead,
however the correct interface must be selected from the Setup tab of the VTS application.
• Allows for either Automatic or Manual IP settings. Default setting is Manual (IP address:
10.101.18.101, Subnet mask: 255.255.0.0, Gateway: 10.101.1.1).
- Select Automatic when LinkLocal IP (no DHCP) or DHCP.
- Select Manual to manually set the IP address, Subnet mask, and Gateway IP of the Touchscreen.
With “Manual” selected, touch inside each field to set the numeric values.
Note:
Touch the [Save Changes] button before leaving this tab or the changes will be lost.
