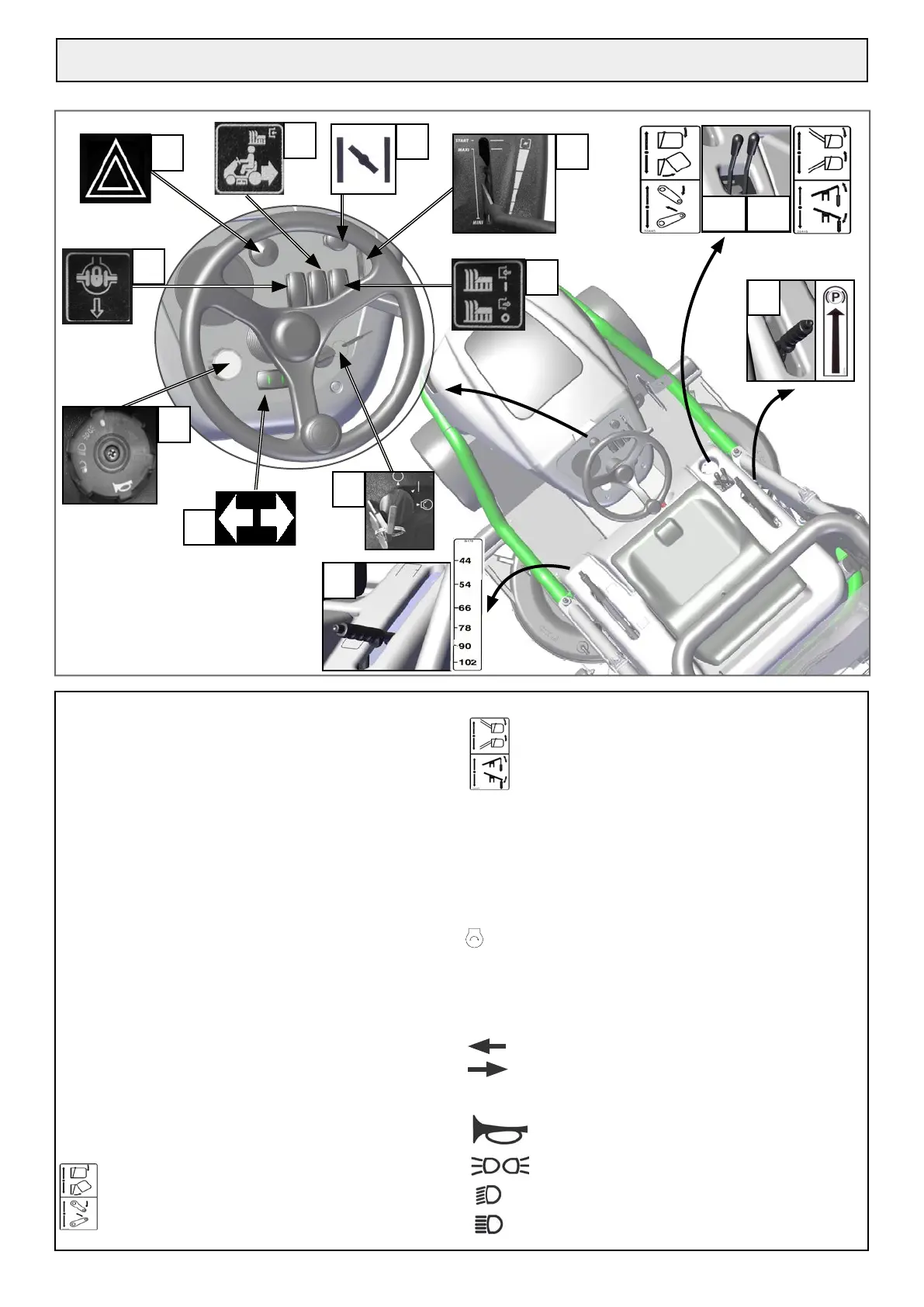

2• KEY TO DIAGRAMS - USE
A - DIFFERENTIAL (EXCEPT BPHPX2, HVHPX AND BVHPX)
The arrow indicates the direction of movement to block the differential.
B - WARNING LIGHTS
C - CONTROL SWITCH « MOW IN REVERSE »
Once the cutter is in operation, press this switch once to mow with the
machine in reverse.
Otherwise the cutter disengages as soon as you select reverse. It will
re-engage with the advance lever when it reaches Neutral or Forward.
If you disengage the cutter with the engage cutting system switch or if a
safety feature trips it, you will have to re-engage the cutter.
D - STARTER
(FOR HVHP, HVHPX, BVHP, BVHPX)
Knob pulled out, position for starting with cold engine
E - ENGINE SPEED
MAXI : Engine at full throttle
MINI : Engine at idling speed
F - STARTING THE CUTTING UNIT
I : Cutting unit rotating
0 : Cutting unit stopped
G - OPENING / CLOSING THE GRASSBOX
Lever up: the grassbox opens
Lever down: the grassbox closes
Lever up: the front lift goes up
Lever down: the front lift goes down
H - RAISING / LOWERING THE GRASSBOX
Lever up: the grassbox goes up
Lever down: the grassbox goes down
Lever up: tilts to the right
Lever down: tilts to the left
I - PARKING BRAKE
To put on the parking brake, move the lever backwards.
To release the parking brake, move the lever forwards.
J - ENGINE START
0 : Engine off, electrical circuit power off
1 : Electrical circuit power on, engine pre-heating
: E ngine started
K - CUTTING POSITION
Indication en mm de la position de coupe (sur sol dur et plat).
L - DIRECTION INDICATOR
Indication of direction change, left
Indication of direction change, right
M - ROTARY SWITCH
Horn
Sidelights
Dipped headlights
Driving lights
