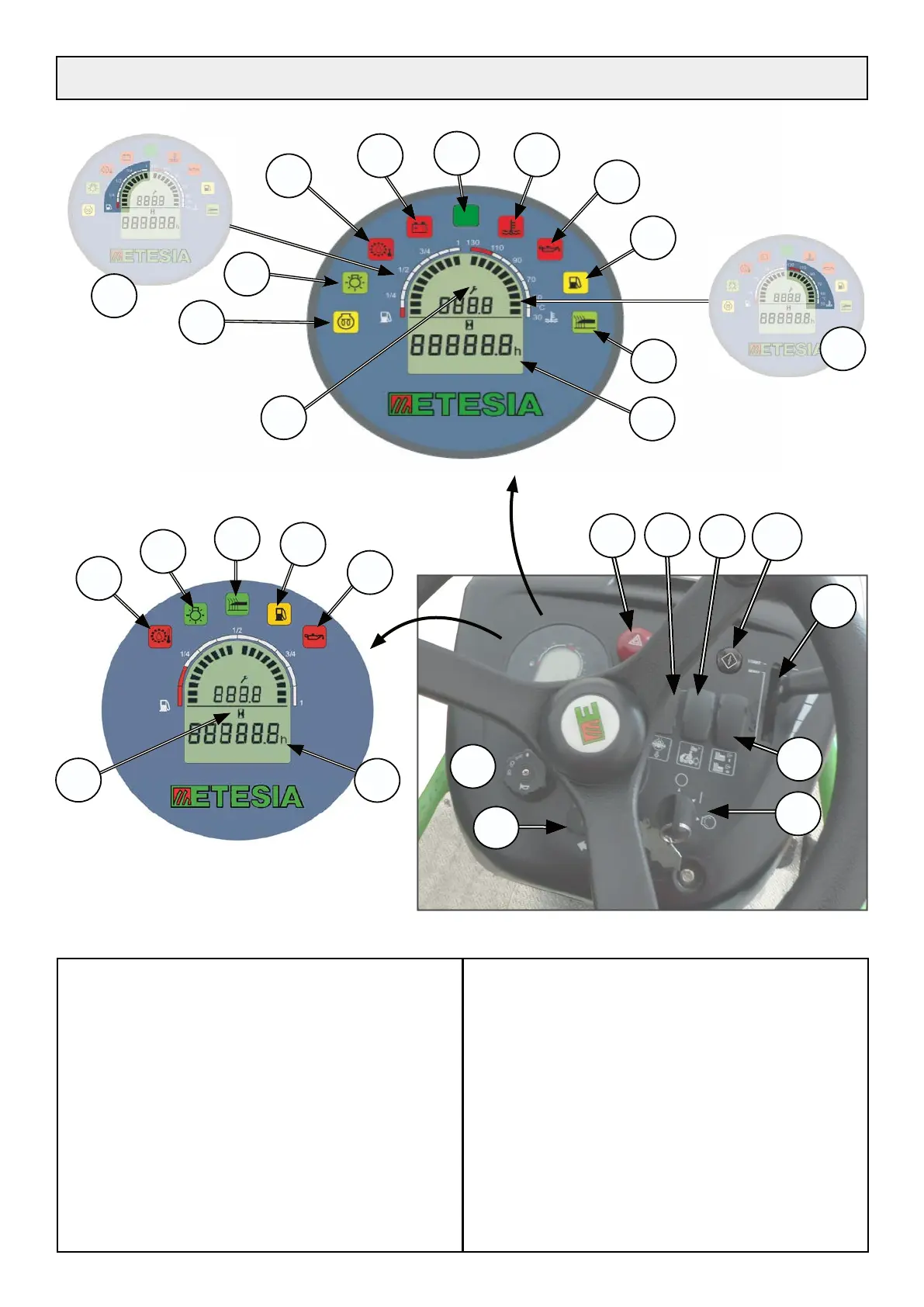

3• DESCRIPTION
1. Maintenance cycle counter
2. Engine pre-heating warning light
(on BPHP2 - BPHPX2)
3. Lights on indicator
4. Engine temperature indicator
5. Hydraulic circuit overheating warning light
6. Battery load warning light
(on BPHP2 - BPHPX2)
7. Moving machine safety light
(on BPHP2 - BPHPX2)
8.
Coolant temperature warning light. A warning buzzer is combined
with this light (on BPHP2 - BPHPX2)
9. Engine oil pressure warning light
10. Diesel low level warning light
11. Engine temperature indicator
12. Blade clutch safety light
13. Hour counter
14. Warning lights switch
15. Differential lock control switch (except BPHPX2, HVHPX and
BVHPX)
16. «Mow in reverse» switch
17. Choke pull-knob (except BPHP2 and BPHPX2)
18. Engine speed control lever
19. Cutting unit control switch
20. Ignition key
21. Indicator control switch
22.
Horn button
Sidelights, headlights and
driving
lights
switch
