KL8-3A User Manual
10

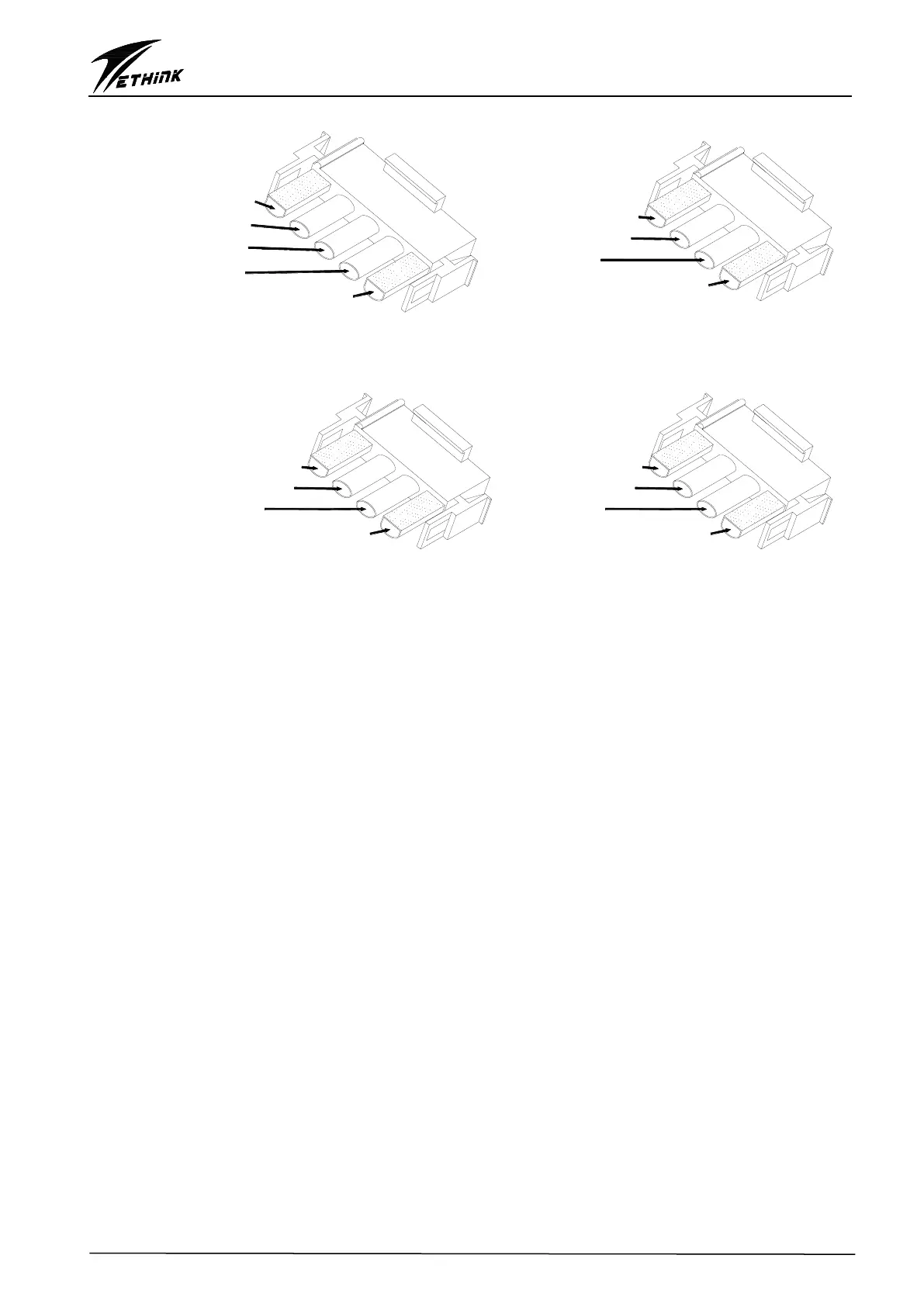

1.4 The wire connection for each load
Heater Line1
Heater Line2
Neutral1
Neutral2
Protective Earth
Heater Line
Empty
Neutral
Protective Earth
Fig. 15: Wire connection Fig. 16: Wire connection for
for H380 heater H220 heater
PUMP1 High Speed
Neutral
Protective Earth
PUMP1 Low Speed
Line
Neutral
Protective Earth
Empty
Fig. 17: Wire connection for 2-speed pump Fig. 18: Wire connection for others
Wire colours that may be used for cords fitted to outputs:
2 speed pumps: Type 1 Type 2 Type 3 (LX, Davey)
Low speed - Black Black Brown
High speed - Brown Red Black
Neutral - Blue White Blue
Earth - Green/Yellow Green Neutral
Its important that a 2 speed pump low/high speeds are checked for the correct configuration
heating/filtration should automatically run on low speed.
If it runs on high speed, swap the low and high speed wires at the pump terminal box.
1 speed pumps, blower, ozone etc: Type 1 Type 2
Active - Brown Black
Neutral - Blue White
Earth - Green/Yellow Green
