• Cooking hobs can be installed into worktops that are 30 to 50
mm thick.
• The kitchen furniture element underneath the hob should not
be fi tted with a drawer. If the kitchen furniture element as a
horizontal partition wall, it should be installed no less than 60
millimeters from the lower surface of the worktop. The space
between the partition wall and the hob must be empty; no
objects should be placed into that gap.
• On the furniture back wall there should be a cutout with width of
at least 175 mm along the entire width of the furniture element.
Installation procedure
• The worktop should be installed completely horizontally.
• The cutoff surfaces should be appropriately protected.
• Use the supplied screws [2] (4x - SVK6…600 mm;
6x - SVK7…750 mm;) to secure the fi xing brackets [1]
(4x - SVK6…600 mm; 6x - SVK7…750 mm;) to the bottom of
the cooker where appropriate holes [3] have been prepared for
this purpose.
• Insert the cooking hob into he cutoff and press it heavily from
above against the worktop.
1 - Fixing bracket
2 - Screw
3 - Hole
A - Thin worktops
B - Thick worktops
70

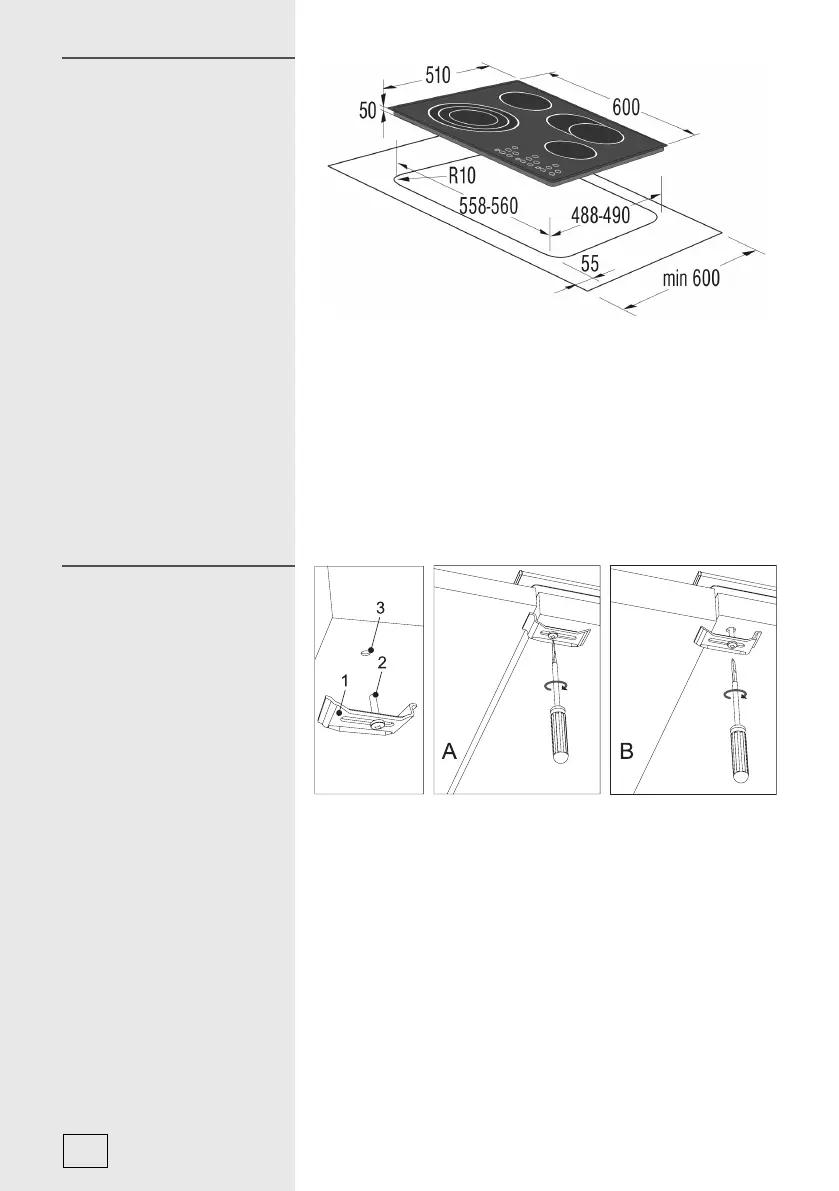

Worktop cutout
dimensions
