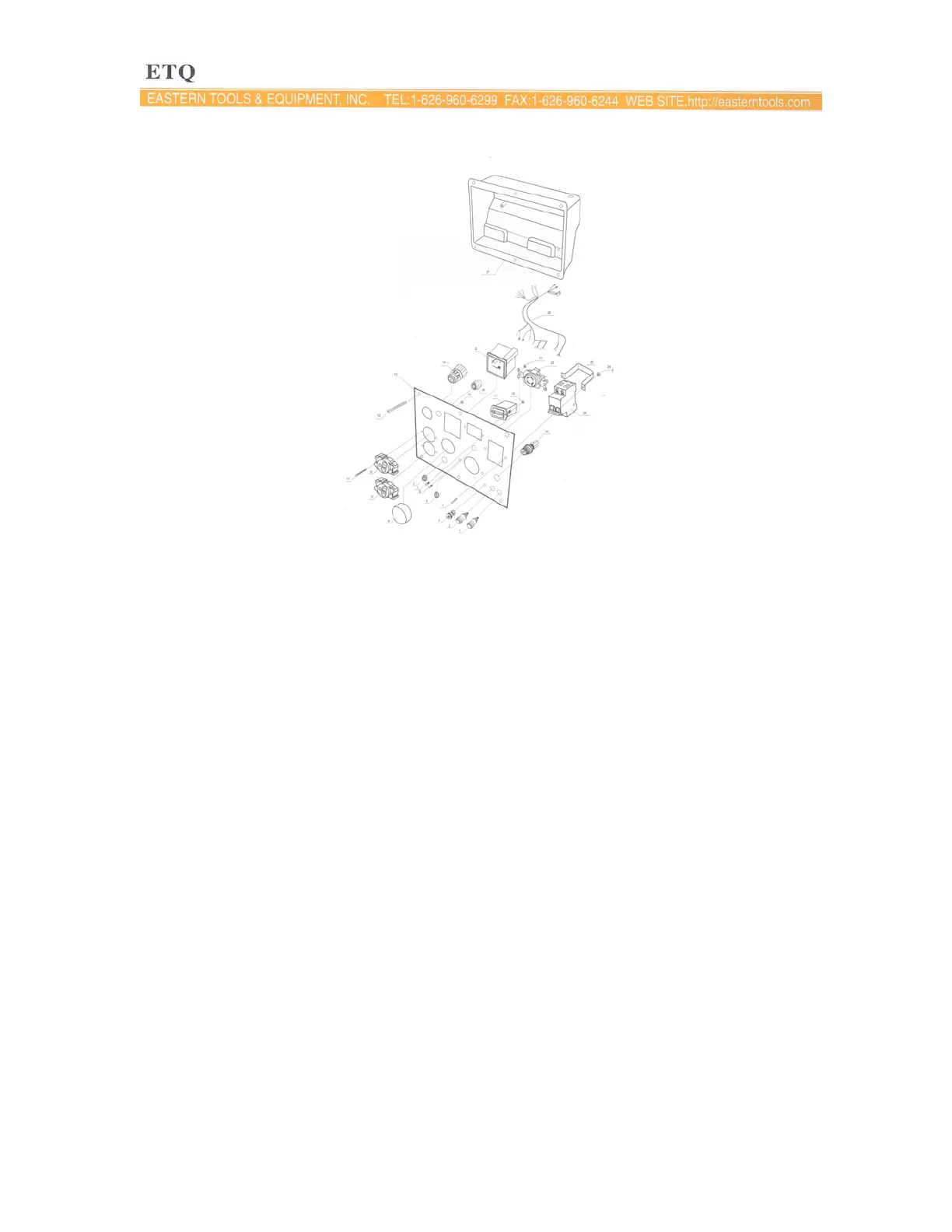

Figure 5-4. Electric panel parts drawing
Table 5-3. Please refer to Figure 5-4
Number Part Description Quantity Part Number (4LE /6LE)
1 Positive DC port 1 ETQ4LE69 / ETQ6LE69
2 Negative DC port 1 ETQ4LE70 / ETQ6LE70
3 Grounded bolt 1 ETQ4LE71 / ETQ6LE71
4 Bolt 2 ETQ4LE72 / ETQ6LE72
5 Large Nut 1 ETQ4LE73 / ETQ6LE73
6 Bolt 2 ETQ4LE74 / ETQ6LE74
7 Bolt 2 ETQ4LE75 / ETQ6LE75
8 Large Nut 1 ETQ4LE76 / ETQ6LE76
9
Current Adjusting Switch
1 ETQ4LE77 / ETQ6LE77
10 3 prong Socket 2 ETQ4LE78 / ETQ6LE78
11 Bolt 6 ETQ4LE79 / ETQ6LE79
12 Electric panel bolt 6 ETQ4LE80 / ETQ6LE80
13 Electric Panel 1 ETQ4LE81 / ETQ6LE81
14 Starter switch 1 ETQ4LE82 / ETQ6LE82
15 Large nut 6 ETQ4LE83 / ETQ6LE83
16 Oil alert lamp 1 ETQ4LE84 / ETQ6LE84
17 Hour meter 1 ETQ4LE85 / ETQ6LE85
18 Hour meter bolts 2 ETQ4LE86 / ETQ6LE86
19 DC Fuse 1 ETQ4LE87 / ETQ6LE87
20 Voltmeter 1 ETQ4LE88 / ETQ6LE88
21 Nut 2 ETQ4LE89 / ETQ6LE89
22 4 prong socket 1 ETQ4LE90 / ETQ6LE90
23 Breaker bracket 1 ETQ4LE91 / ETQ6LE91
24 Nut 2 ETQ4LE92 / ETQ6LE92
25 Breaker 1 ETQ4LE93 / ETQ6LE93
26 Wiring harness 1 ETQ4LE94 / ETQ6LE94
27 Electrical box 1 ETQ4LE95 / ETQ6LE95
