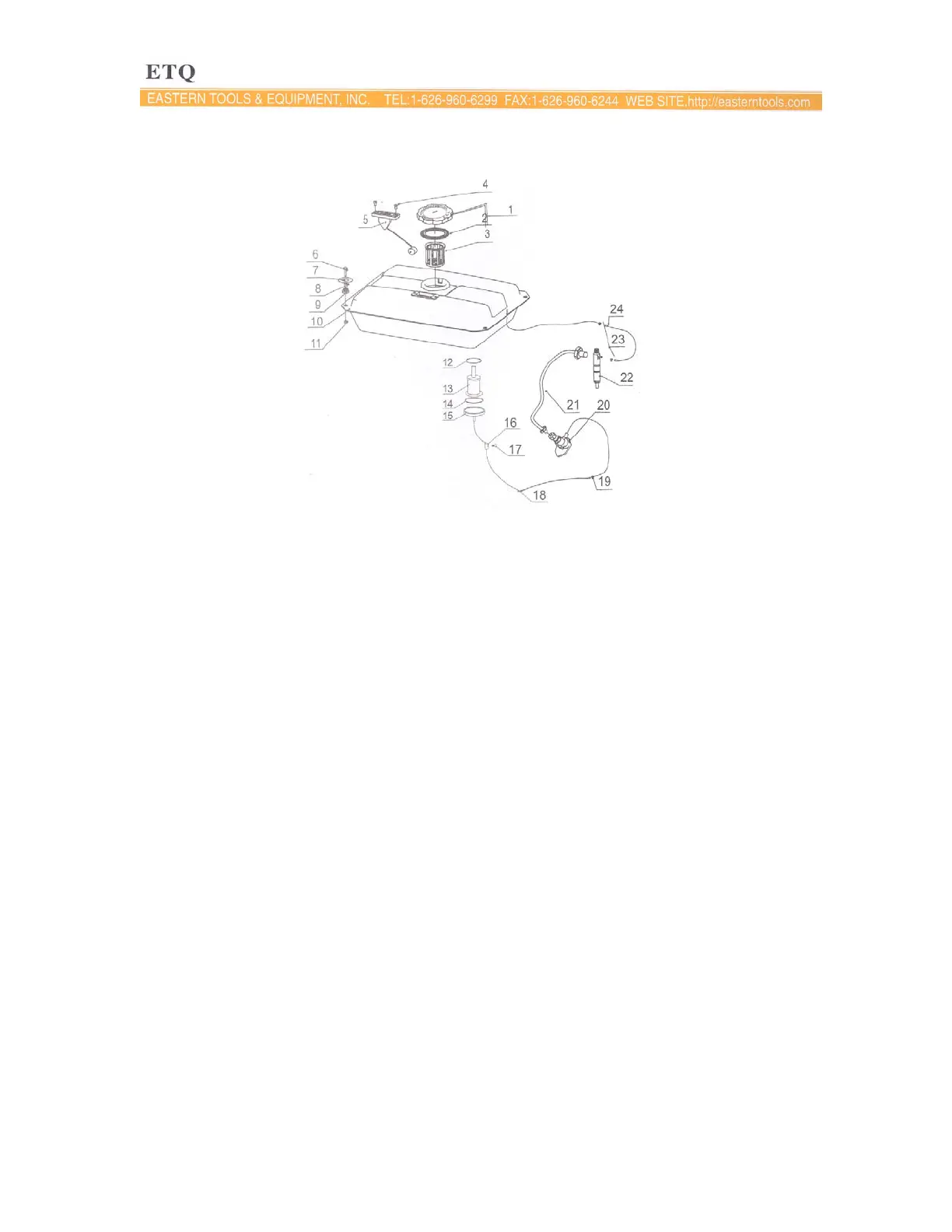

Figure 5-6. Fuel system components
Table 5-5. Please refer to figure 5-6.
Number Part Description Quantity Part Number (4LE / 6LE)
1 Fuel Cap 1 ETQ4LE111 / ETQ6LE111
2 Seal 1 ETQ4LE112 / ETQ6LE112
3 Filtering cup 1 ETQ4LE113 / ETQ6LE113
4 M5 x 10 screw 2 ETQ4LE114 / ETQ6LE114
5 Fuel lever indicator 1 ETQ4LE115 / ETQ6LE115
6 M6 x 25 Bolt 4 ETQ4LE116 / ETQ6LE116
7 Large flat washer 6 4 ETQ4LE117 / ETQ6LE117
8 Fuel tank lining 4 ETQ4LE118 / ETQ6LE118
9 Shock absorbing gasket 4 ETQ4LE119 / ETQ6LE119
10 Fuel tank 1 ETQ4LE120 / ETQ6LE120
11 M6 Nut 4 ETQ4LE121 / ETQ6LE121
12 O ring seal 1 ETQ4LE122 / ETQ6LE122
13 Fuel tank filter 1 ETQ4LE123 / ETQ6LE123
14 O ring gasket 1 ETQ4LE124 / ETQ6LE124
15 Fuel filter cover 1 ETQ4LE125 / ETQ6LE125
16 Cover 1 ETQ4LE126 / ETQ6LE126
17 Wing nut 1 ETQ4LE127 / ETQ6LE127
18 Fuel line 2 ETQ4LE128 / ETQ6LE128
19 Fuel inlet pipe 1 ETQ4LE129 / ETQ6LE129
20 High pressure fuel pump 1 ETQ4LE130 / ETQ6LE130
21 High pressure fuel pipe 1 ETQ4LE131 / ETQ6LE131
22 Fuel injector 1 ETQ4LE132 / ETQ6LE132
23 Overfill tube 2 ETQ4LE133 / ETQ6LE133
24 Fuel overfill pipe 1 ETQ4LE134 / ETQ6LE134
