EUCHNER CES-AP Series User Manual

Operating Instructions
Non-Contact Safety Switch CES-AP-C01-…
18
(Translation of the original operating instructions) 2112663-08-02/20

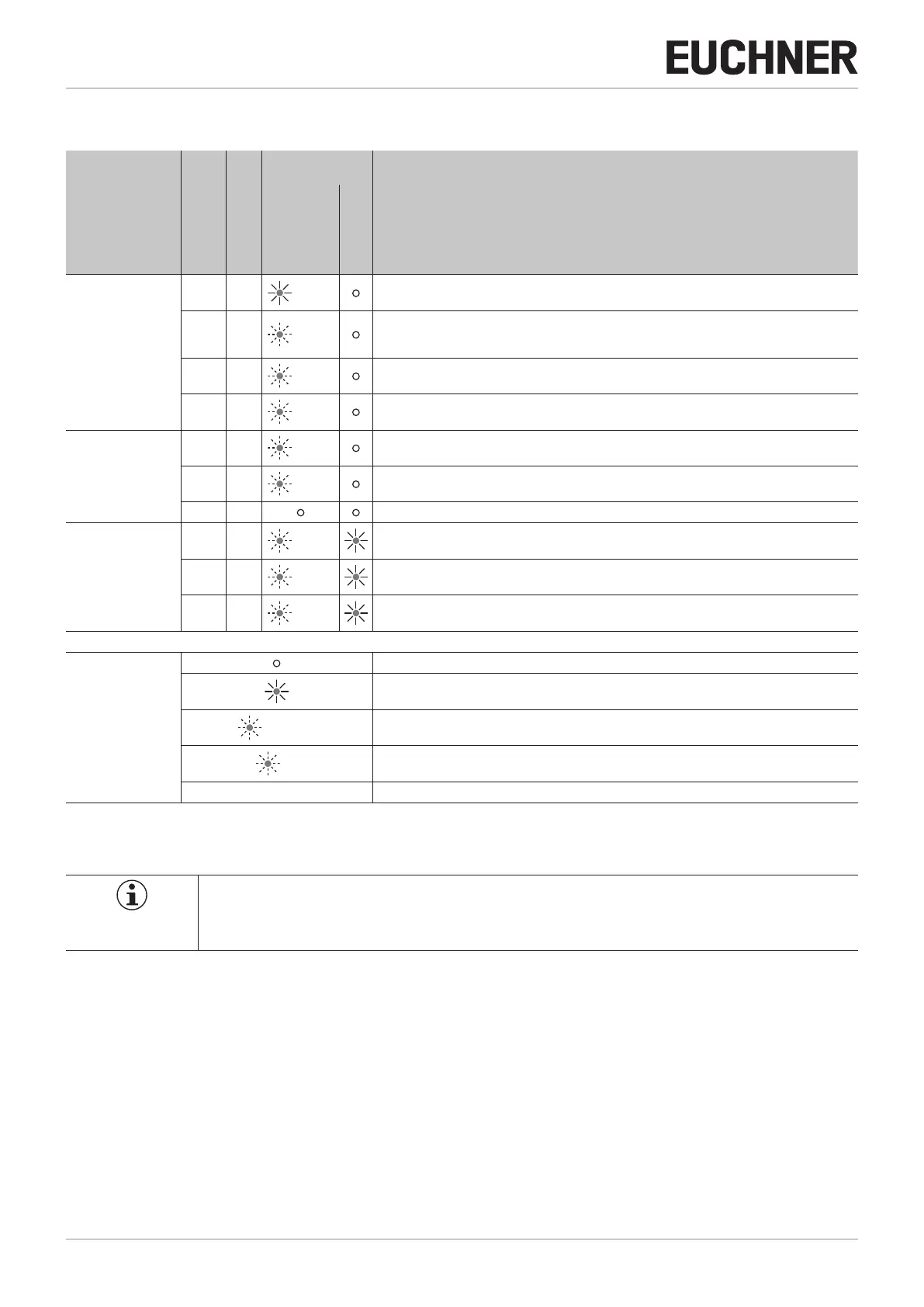

11. System status table
Operating mode
Actuator/door po- sition Safety outputs OA and OB
LED indicator
Output
State
STATE (green) DIA (red)
Normal operation
closed on Normal operation, door closed
closed on
Inverted
ash
burst
Normal operation, door closed, actuator in the limit range ¨ Re-adjust door
open off 1 x Normal operation, door open
open off 2 x Normal operation, door open; no actuator was taught in successfully during initial setup
Teach-in operation
(only unicode)
open off 3 x Door open, device is ready for teach-in for another actuator (only short time after power-up)
closed off 1 Hz Teach-in operation
X off Positive acknowledgment after completion of teach-in operation
Fault display
closed off 3 x Defective actuator (e.g. fault in code or code not readable)
X off 4 x Output fault (e.g. short circuits, loss of switching ability)
X off 5 x Internal fault (e.g. component faulty, data error)
Key to symbols
LED not illuminated
LED illuminated
10 Hz (8 s)
LED ashes for 8 seconds at 10 Hz
3 x
LED ashes three times, cycle time 7s
X Any state
After the cause has been remedied, faults can generally be reset by opening and closing the guard. If the fault is still dis-
played afterward, briey interrupt the power supply. Contact the manufacturer if the fault could not be reset after restarting.
Important!
If you do not nd the displayed device status in the system status table, this indicates an internal device
fault. In this case, you should contact the manufacturer.
