EUFAB CROW PLUS - Instructions for Use; Attaching the Extension

12
Figure 3: Removing the retaining clips
Figure 4: Removing the retaining screws

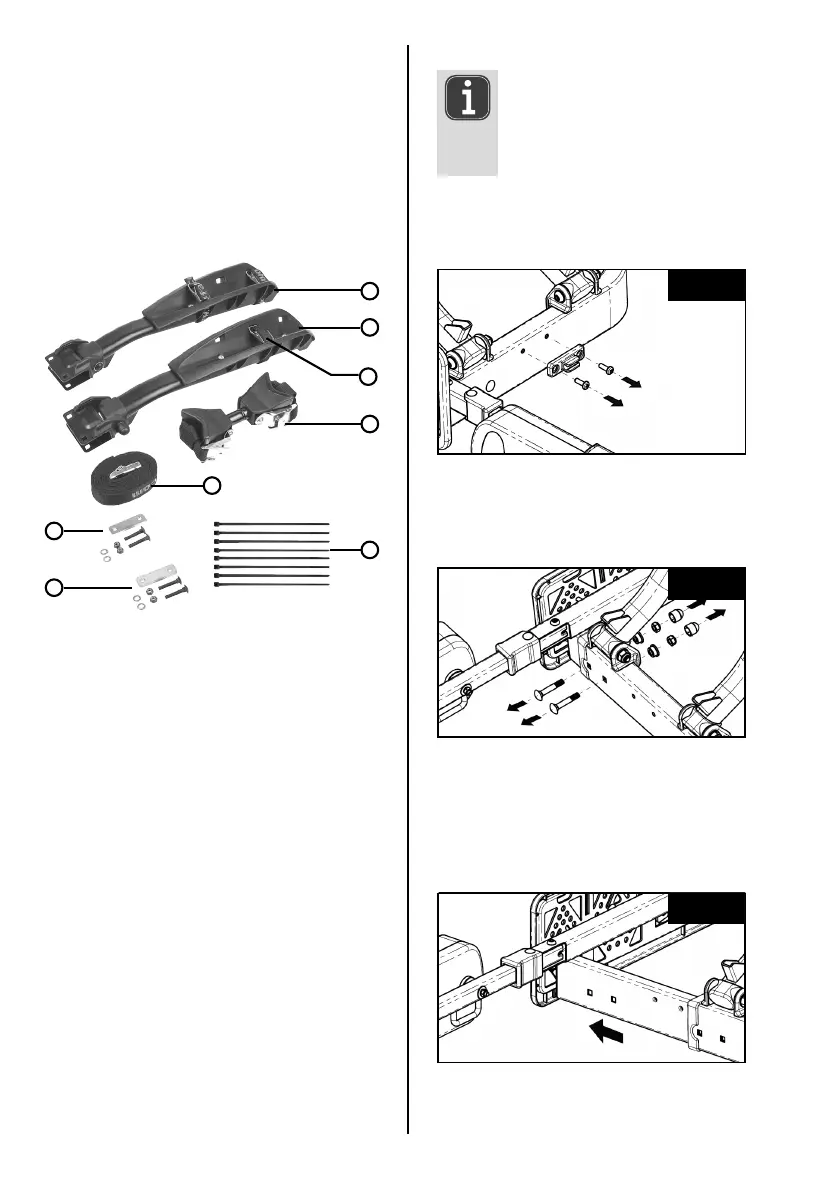

5.2 ATTACHING THE EXTENSION
Step 1:
Step 2:
Remove the brackets for the lamp holders from the
outside of the base frame (left and right).
Remove the retaining screws from the base frame.
(Left and right).
5. INSTRUCTIONS FOR USE
5.1 OVERVIEW
1 Wheel rail left
2 Wheel rail right
3 Frame holder
4 Safety strap, long
5 Assembly material
6 Cable ties
7 Tensioning strap, short
Figure 2: Overview
NOTE
Before  tting the extension to your bicycle
rack, disconnect the electrical cables from
the base frame of the bicycle rack by cutting
through the cable ties with cutting pliers.
Figure 5: Pulling out the frame extension
Step 3:
Pull the frame extension with the licence plate holder
and the lamp holders out of the base frame until the
second pair of holes in the extension coincide with the
holes in the base frame.
Fig. 2
Fig. 1
Fig. 3
1
2
7
3
4
5
5
6
