EUFAB JAKE User Manual

20
WARNING!
Personal injury through breakage of the trailer
coupling possible.
The coupling
could break if the bicycle carrier
is mounted
to a coupling made of too soft a
material.
• Only mount the bicycle carrier to a coupling
of
steel St52, grey cast iron GG52 or higher
quality.
• Never mount the carrier to a coupling made
of aluminium, other light metals or plastic.
Only mount the bicycle carrier to trailer couplings which
have the following properties:
Material: Minimum steel St52 or cast iron GG52
Material:.............. mind. Stahl St52 oder Grauguss GG52
D value:............................................................... ≥ 7,6 kN
Observe the
instructions from the coupling manufacturer.
Coupling
conditionsScope of delivery
Technical
data
Carrier:.....................................................................JAKE
Item no.
JAKE:..................................................................... 11510
JAKE WHITE :........................................................ 11524
JAKE BLACK:......................................................... 11525
Material:...............................................................
.....Steel
Net weight::
for two bicycles ....................................................... 17 kg
with extension for third bicycle.................................19 kg
Load bearing c
apacity.:............................................ 60 kg
The maximum
load capacity of the bicycle carrier and the
permissible load capacity of the trailer coupling joint must
not be exceeded.
The bicycle carrier and load must not exceed the
permissible overall weight, or the permissible axle load of
the vehicle.

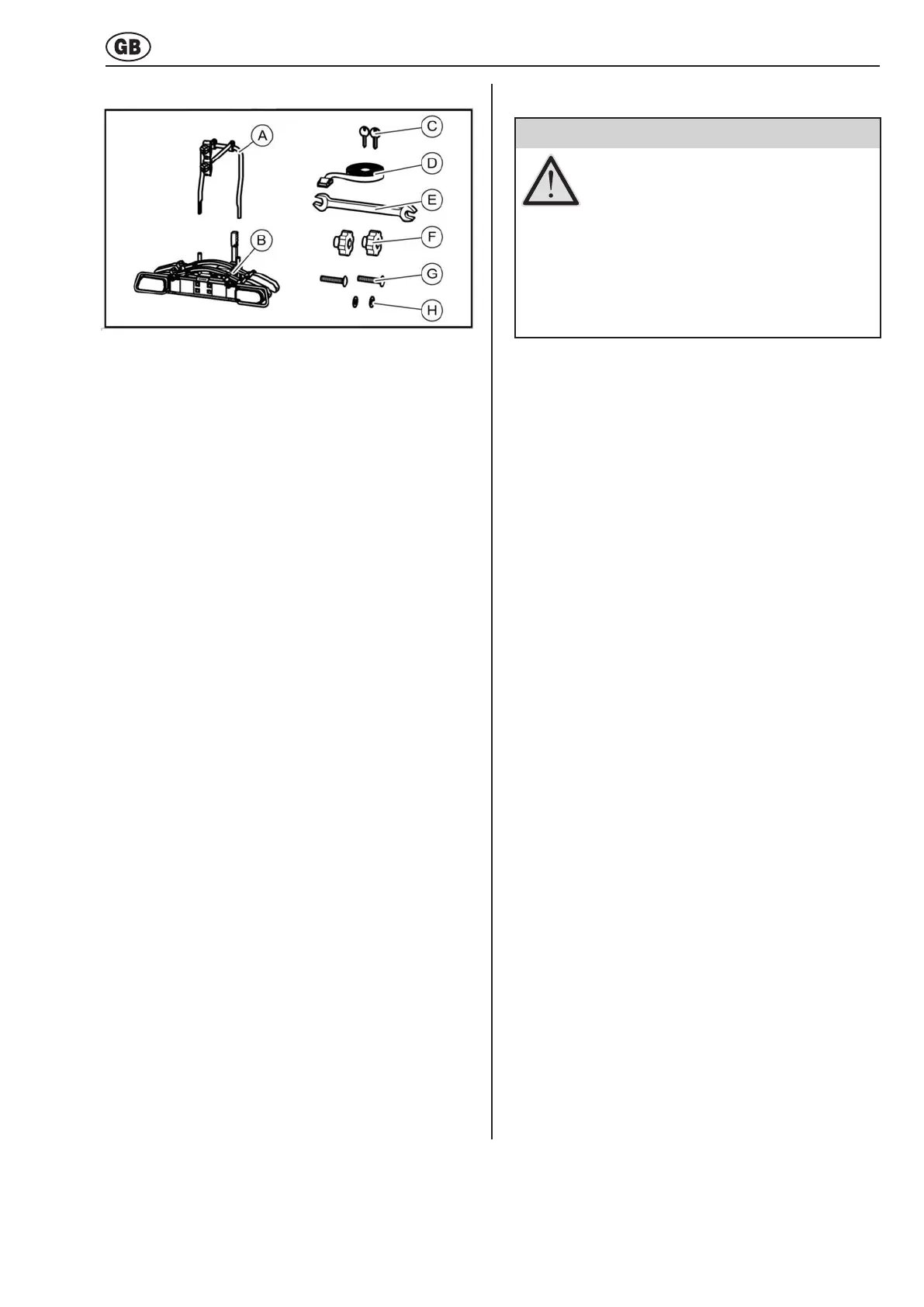

Scope of delivery / Technical data
A = Bracket with two frame holders
B = Bicycle carrier
C = 2 keys
D = Safety strap for bicycle frame
E = Spanner
F = 2 knobs
G = 2 carriage bolts
H = 2 washers

EUFAB JAKE Specifications

General

Brand	EUFAB
Model	JAKE
Category	Automobile Accessories
Language	English
