-up alarm system
Back-up alarm system
only JAKE BLACK
Intended use
The JAKE BLACK bicycle carrier is equipped with a bac
k
-
up alarm system. The back-up alarm system shows the
distance of obstacles behind the vehicle by means of
acoustic signals. It merely serves as an additional aid
when
driving backward or manoeuvring the vehicle. The
sy
stem cannot replace the driver's diligence. Check the
area behind your vehicle and use a positioning guide. EAL
GmbH is not liable for accidents, damage to the vehicle, or
for
other damage.
Technical specifications of the back-up
alarm system:
Operating voltage:.....................................................12 V
Power
consumption:.........................................ca. 80 mA
Max. output power: ....................................................2 W
Transmission frequency:............................... 433,92 MHz
Work area:....................................................... 0 m to 2 m
Operating temperature:.......................... -40 °C to +80 °C
Volume............................................................max. 80 dB

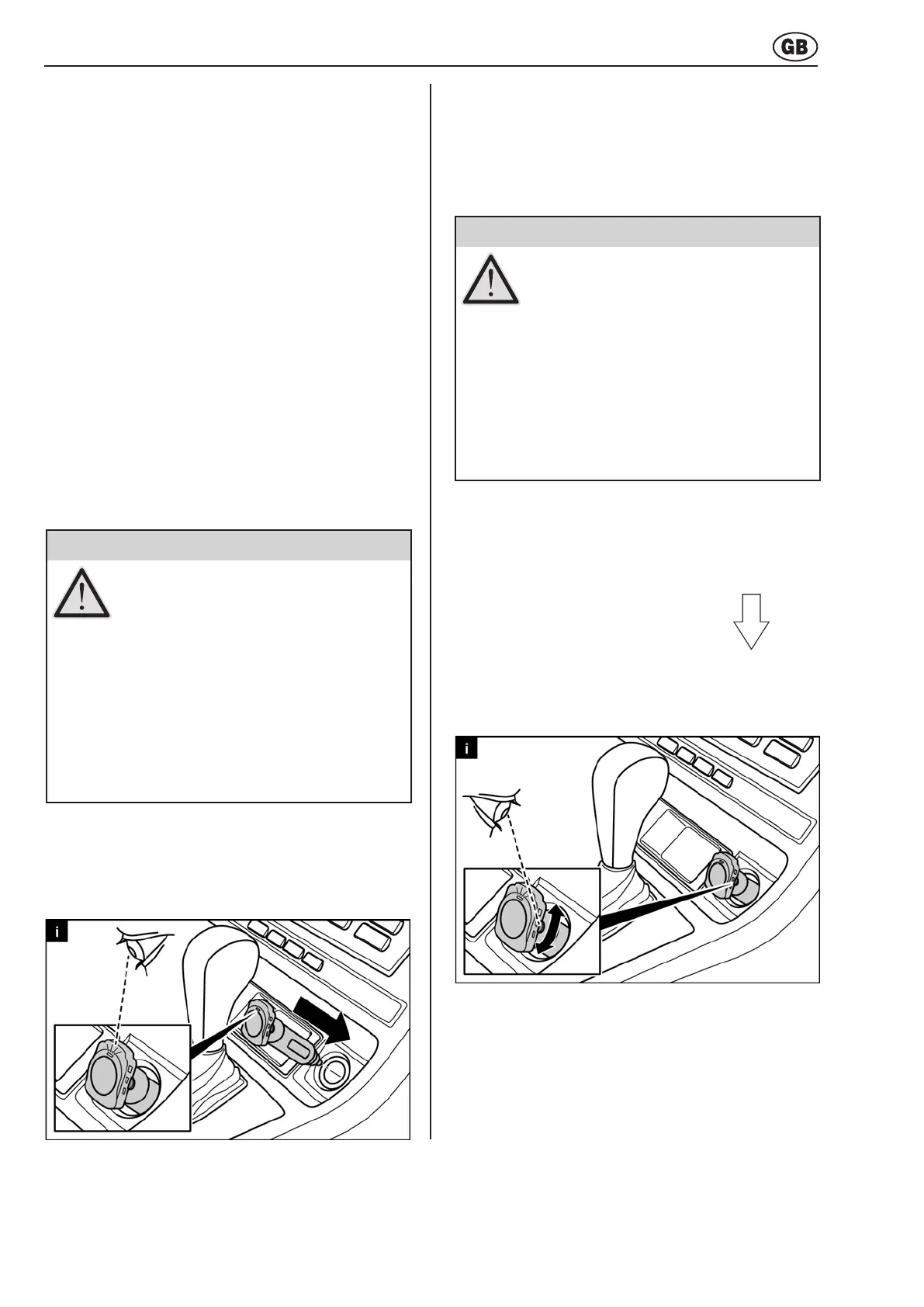

Mount receiver for back-up alarm
system
Plug the receiver of the back-up alarm system into the
c
igar lighter (12 V) of your vehicle.
Once
the LED lights up, the receiver is operational.
WARNING!
Personal injury or material damage possible
due to non-functioning back-up alarm system.
Driving without a functioning back-up alarm
s
y
stem can lead to accidents.
• Before every trip, check that the back-up
alarm system is functioning correctly.
•
Check the connection between plug and
connector on the bicycle carrier.
•
If necessary, plug the receiver in again until
it clicks into place.
• If necessary, replace a defective receiver.
Operation
If reverse gear of the vehicle is engaged with the mounted
and connected JAKE BLACK bicycle carrier and an
operational
receiver, you will hear a short beep.
The system is now activated.
Detecting the distance to obstacles
Differently rapid tone sequenc
es indicate the distance to
obstacles behind the vehicle. The faster the tone
sequence, the closer the object.
2,0
m - 1,5 m.....................................slow tone sequence
1,4 m - 1,0 m............................................
0,9 m - 0,5 m............................................
0,4 m - 0 m............................... very rapid tone sequence
Adjusting the volume
Quieter: Rotate the adjusting wheel downward
Louder: Rotate the adjusting wheel upward
Cleaning
Use a dry, soft cloth for cleaning the back-up alarm
s
ystem. Do not use cleaning agents or other chemicals for
cleaning.
WARNING!
Personal injury or material damage possible
due to a non-functioning back-up alarm
s
y
stem.
Driving without a functioning back-up alarm
sy
stem can lead to accidents.
This system can, just like other wireless
sy
stems, be subject to faults/disturbances.
Disturbances may be caused by mobile
phones, bluetooth, headsets, navigation
devices and other electrical devices.
•
Before every use, check that the back-up
alarm system is functioning correctly.
•
Turn off electrical equipment in the
surrounding area.
