21

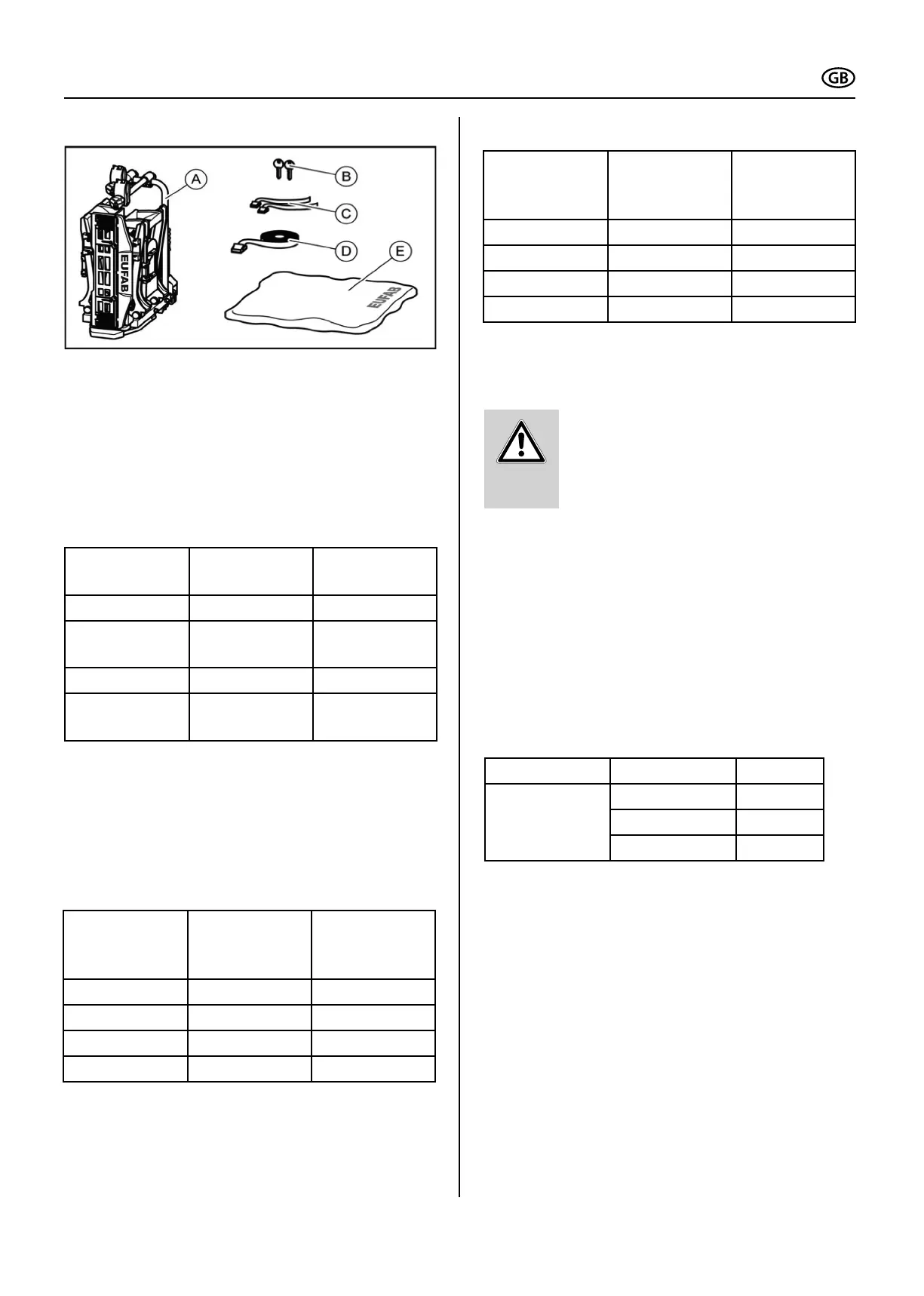

A = Bicycle carrier
B = 2 keys
C = 2 safety straps for front wheels, PREMIUM 2
(3 safety straps for front wheels, PREMIUM 3)
D = 1 Safety strap for bicycle frame
E = Transport bag
The max. carrying capacity of the bicycle carrier and the permissible
bearing load of the trailer coupling must not be exceeded.
The bicycle carrier and load must not exceed the permissible overall
weight, or the permissible axle load of the vehicle.
Technical data
PREMIUM 2
PREMIUM 2 PLUS
PREMIUM 3
Item-No.: 11521/11523 11522
Material: Steel
Aluminium
Steel
Aluminium
Weight: 17 kg 21 kg
Carrying capacity,
max.
60 kg 60 kg
Examples for PREMIUM 2 / PLUS
Max. bearing
load Trailer
coupling
Weight bicycle
carrier
Max. carrying
capacity on
bicycle carrier
50 kg 17 kg 33 kg
60 kg 17 kg 43 kg
75 kg 17 kg 58 kg
90 kg 17 kg max. 60 kg !
Examples for PREMIUM 3
Max. bearing
load Trailer
coupling
Weight bicycle
carrier
Max. carrying
capacity on
bicycle carrier
50 kg 21 kg 29 kg
60 kg 21 kg 39 kg
75 kg 21 kg 54 kg
90 kg 21 kg max. 60 kg !
Scope of delivery/Technicaldata/Coupling requirements
Scope of delivery
Coupling requirements
WARNING!
Personal injury is possible due to breakage of
the trailer coupling.
Never mount the carrier on a coupling made of
aluminium, other light metals or plastic.
The trailer tow bar must be approved in its construction.
4
Ball and ball rod must have been forged in one piece.
4
Mount the bicycle rack only on a coupling made of steel St52-3,
grey cast iron GGG52 or better.
4
The D-value of the tow bar ball must be at least 7.6 kN
4
These are manufactured e.g. by Westfalia for the following
vehicles:
4
Unsuitable ball rods made of GGG40.
4
Observe the speci cations from the tow bar manufacturer on your
type plate. If in doubt, ask the manufacturer of your trailer hitch
directly whether it is suitable.
Manufacturer Test symbol Suitable for
Westfalia
F 4192 Audi A4
F 3830 Audi A6
F 4112 Audi A8
