1.76m(5’9”)
1.2m (48")
0.3m
(12")
1m
(40")

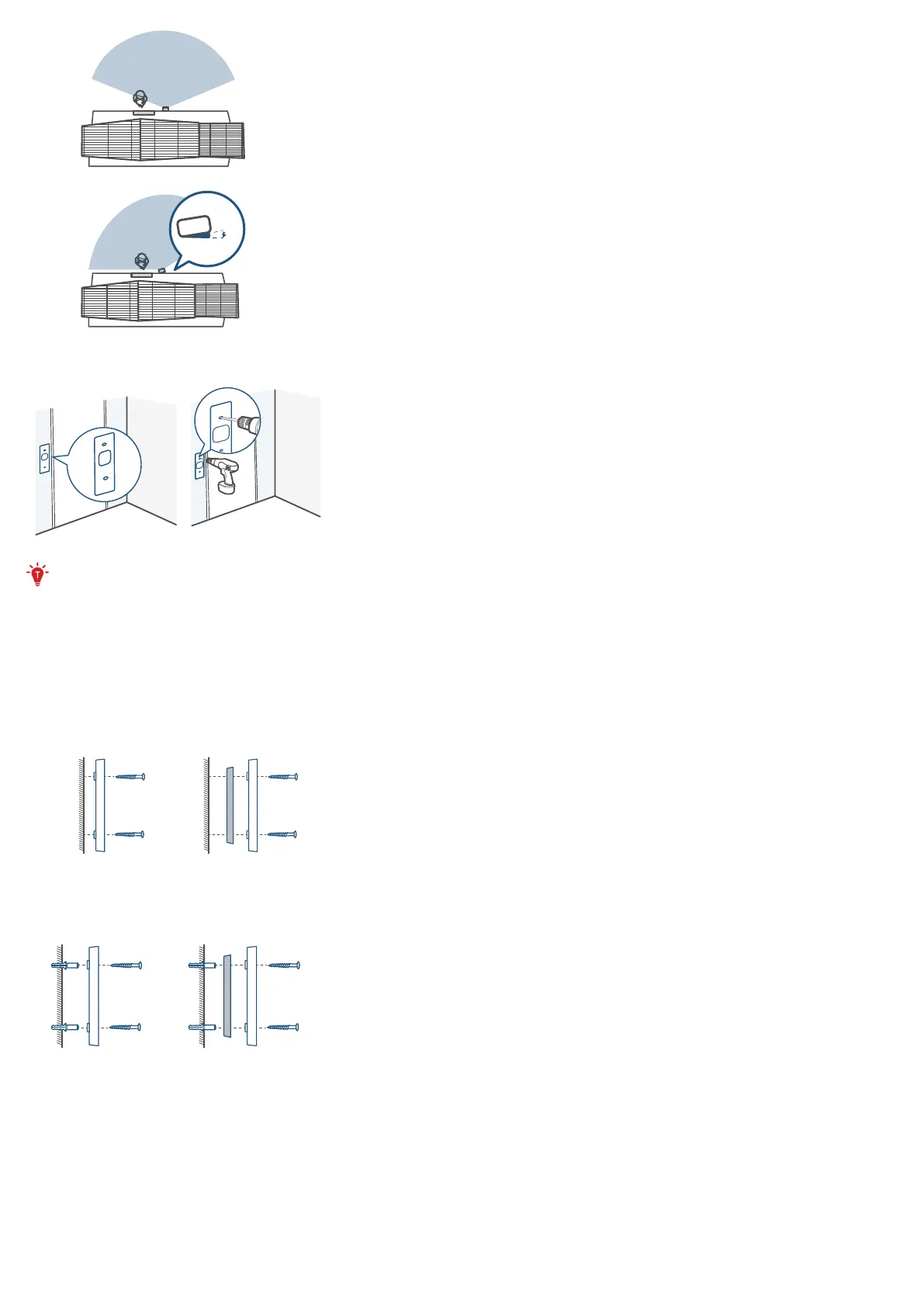

2. Place the screw hole positioning card against the wall to mark the location. If mounting on a hard wall (brick, concrete, or
stucco), use a 15/64" (5.95mm) drill bit to drill 2 holes through the screw hole positioning card.
What you need: Phillips-Head Screwdriver; Power Drill (15/64" Drill Bit)
Mount the Bracket
Use the provided screws to secure the mounting bracket on the wall.
Wooden Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Without 15º Mounting Wedge
With 15° Mounting Wedge
Hard Wall
Mounting
Bracket
Mounting
Wedge
Mounting
Bracket
Without 15º Mounting Wedge
With 15° Mounting Wedge
Connect the Wires to the Doorbell
Connect the wires to the terminals on the back of the doorbell, then tighten the terminal screws. Wire can be connected to
any terminal.
