Right Hand
：
G
Outside

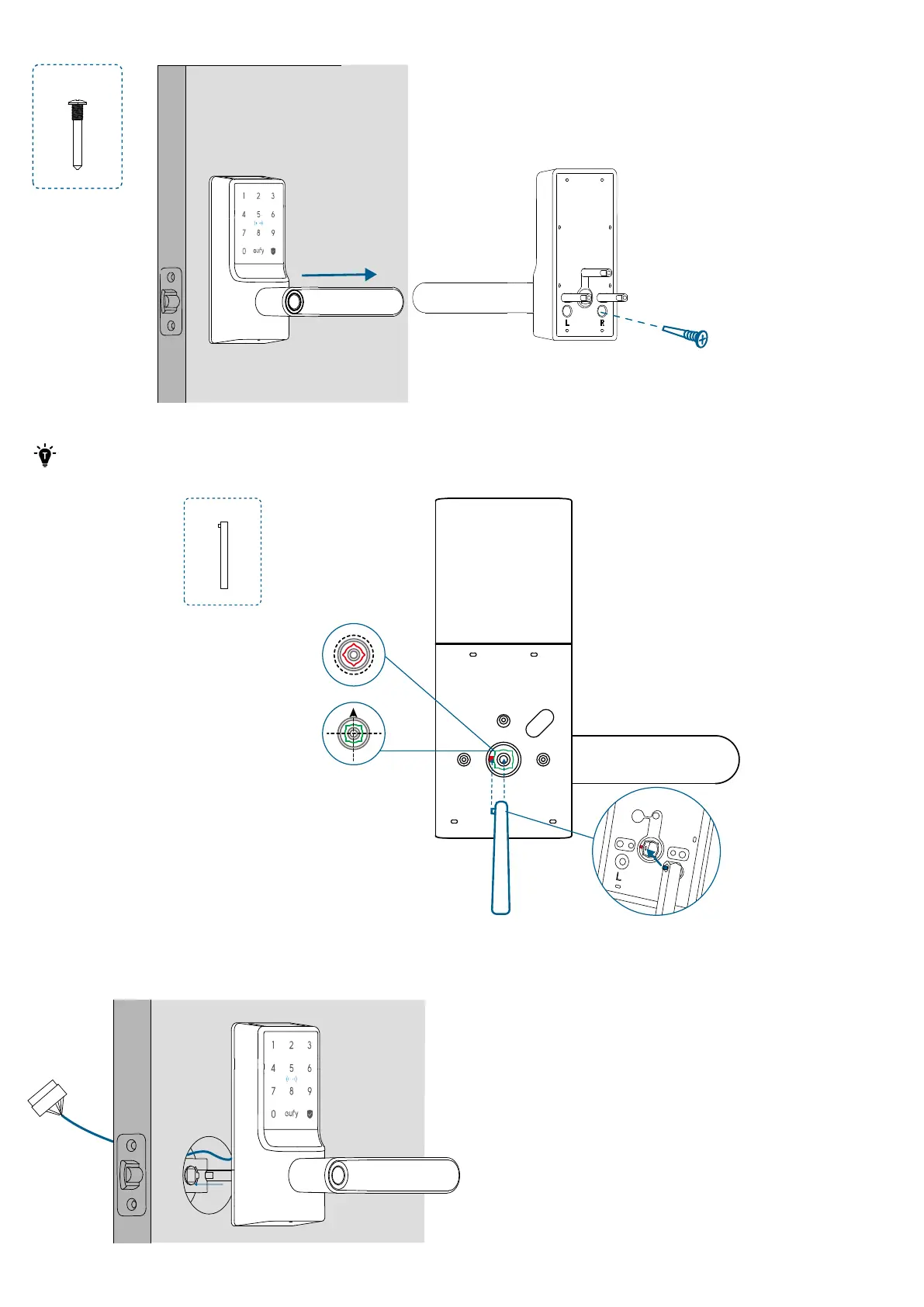

2. If the spindle is not pre-installed into the exterior assembly, insert the spindle by aligning the spring head with the slot.
Make sure that the spindle is securely installed and cannot be pulled out. Then rotate the spindle to ensure it is
squarely straight to the ground.
F
3. Route the cable connected to the exterior assembly over the latch. Insert the spindle into the spindle hole of the latch.
Outside
