Raise The Tent:
Note: Whenever you assemble a tent with hardware at
or above the shoulders, wear a hard hat.
H

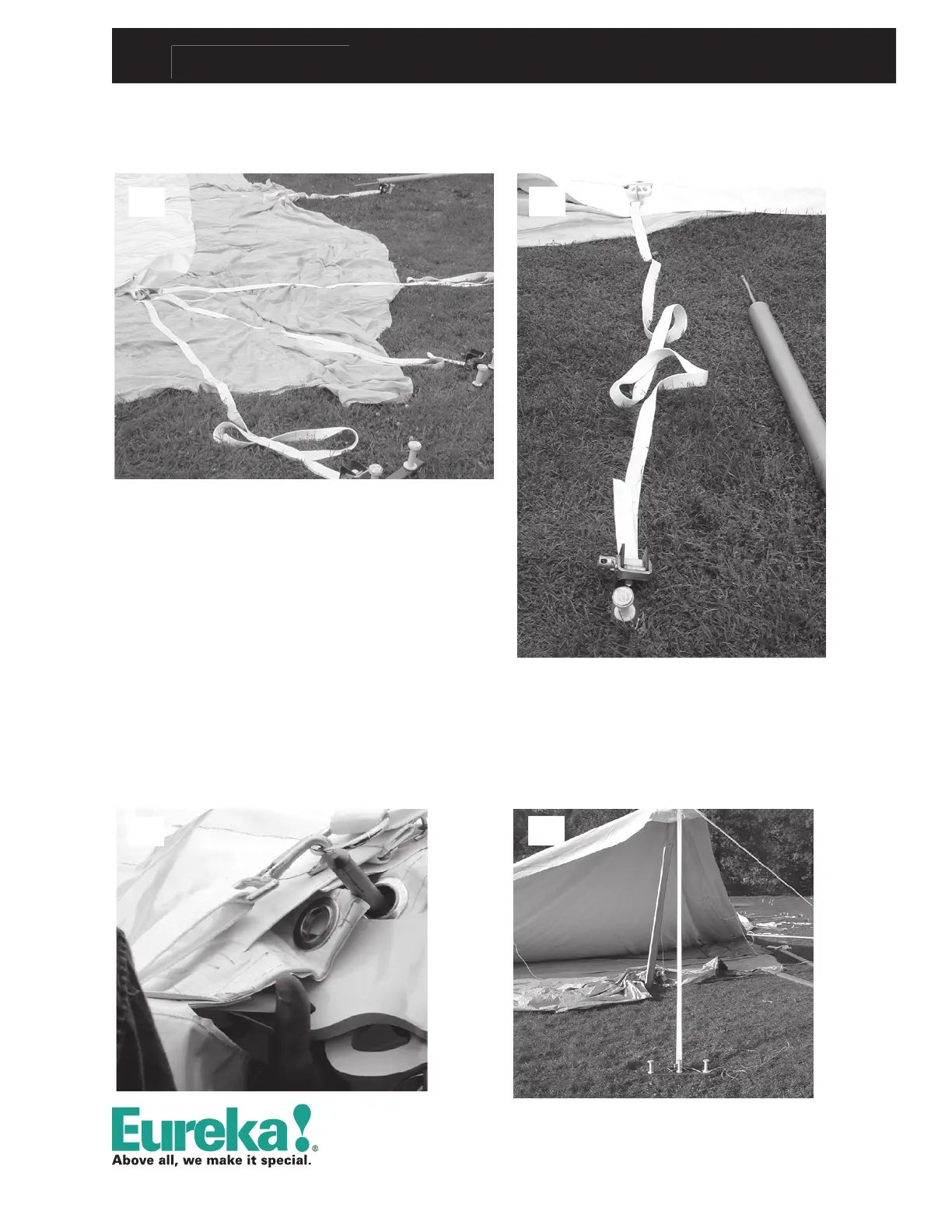

Snap the top sections together. Fit pole pin into the top grommets and corner plates. Raise
the four corner poles. It may be necessary to place the poles on a wooden pad or coaster.
This will minimize or prevent the poles from sinking into the ground when tension is applied
to the tent top. Insert the corner side poles into the corner fittings. Raise the poles to a slight
angle with the base of the pole set inside the tent perimeter. See fig 13 and 14.
genesis
genesis
G
Attach web / ratchets or ropes / carabiners to the corner pole plates. Then, attach remaining web /
ratchets or ropes / carabiners to the side pole plates. See fig 11 and 12.
11
12
13
14
