Assemble The Center Poles:
K
Each center pole is in sections. Align the holes and insert threaded bolts with a washer on each
side. Tighten the bolts to secure.
Raise The Center Poles:
Note: Whenever you assemble a tent with hardware at or above the shoulders, wear a hard hat.
L

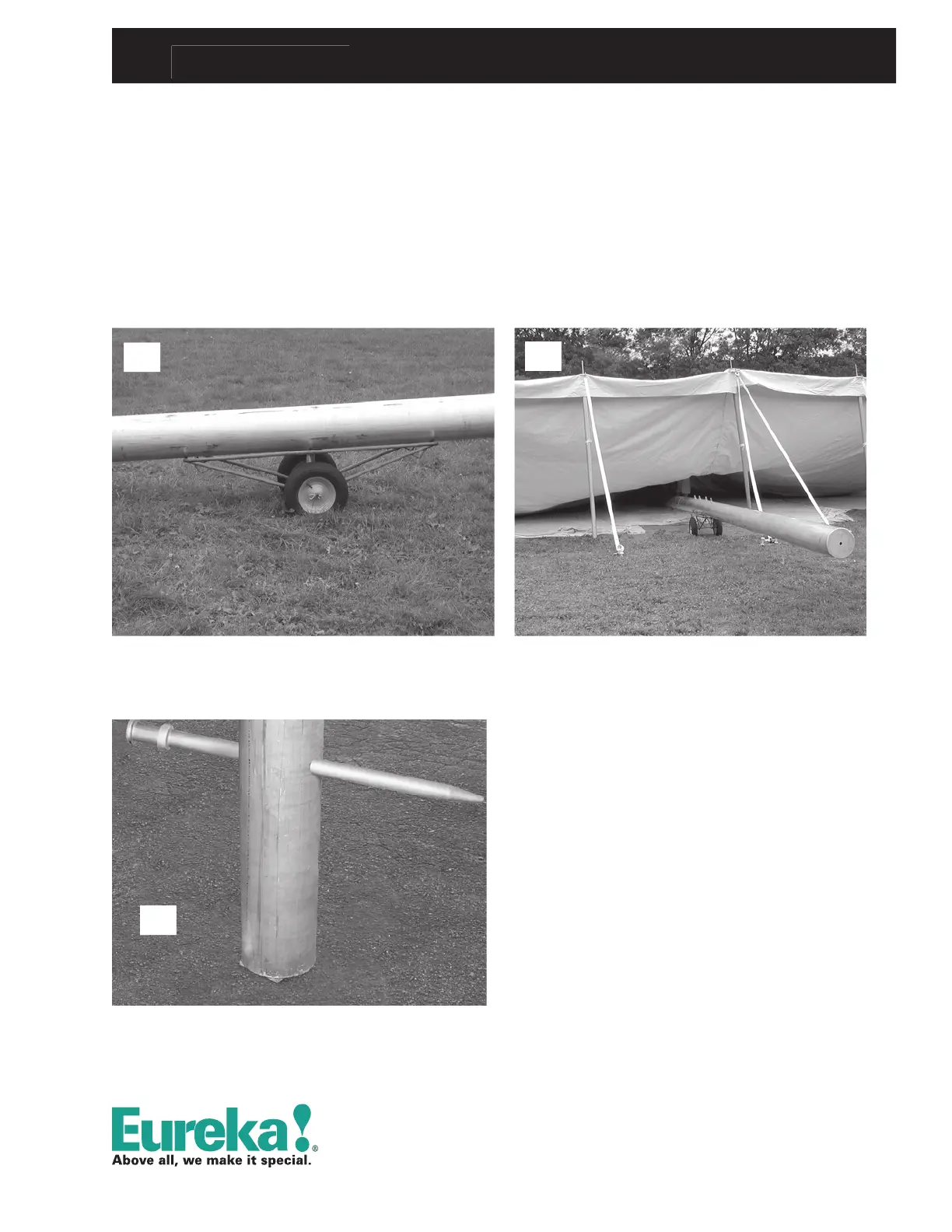

Balance the center pole assembly on a carpet dolly and roll the pole into the tent near the center
pole plates. See fig 19 and 20.
OR
19
20
M
Manually lift and insert the center pole. With two people at a stake inserted through the lift hole and
two at the tip, walk the pole into the tent and fit the tip into top plate assembly. See fig 21
21
