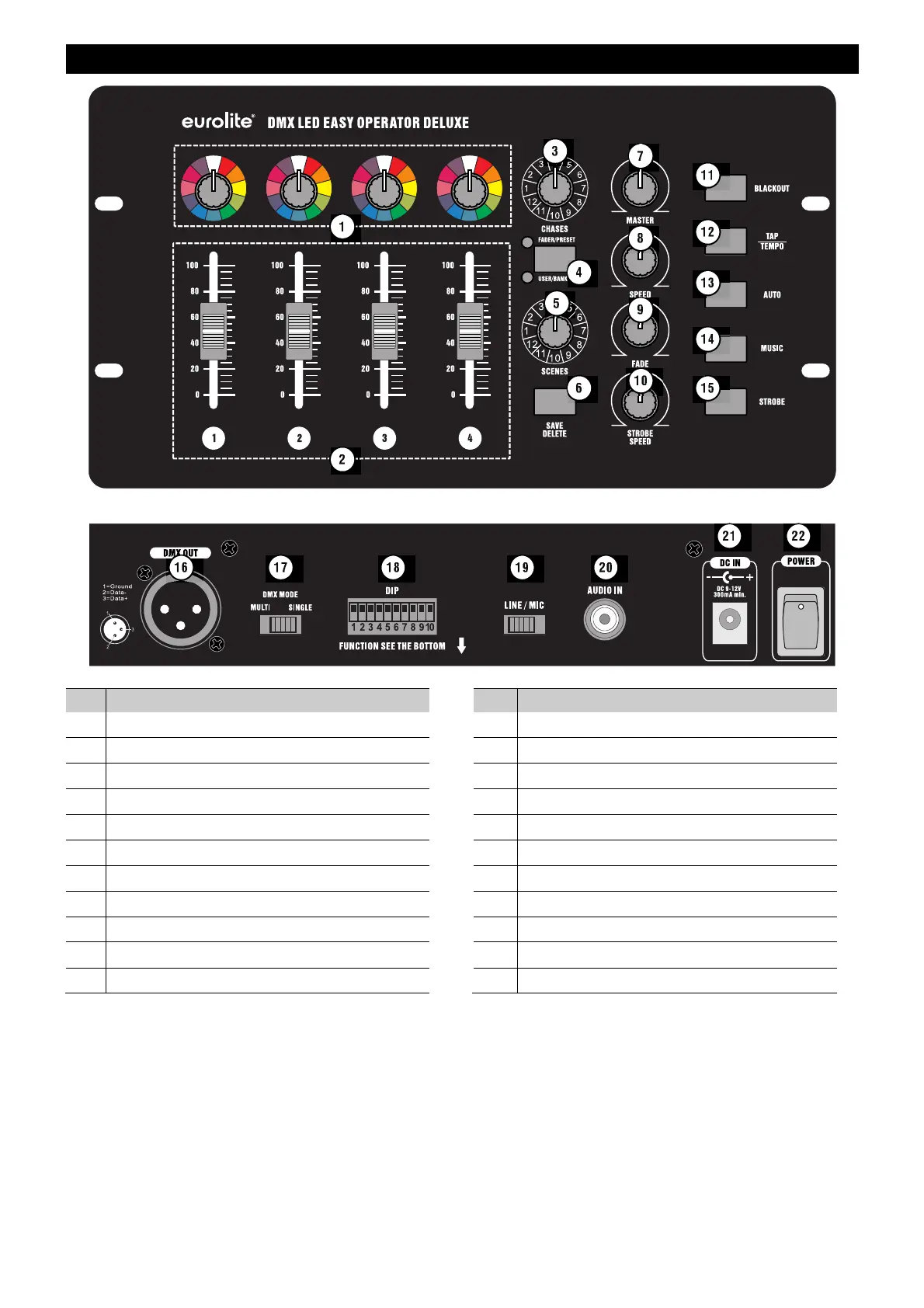

OPERATING ELEMENTS AND CONNECTIONS
No.
Element
No.
Element
1 Rotary controls for color selection (spot 1-4) 12 Push button Tap/Tempo
2 Dimmer fader spot 1-4 13 Mode button: Auto
3 Case/Bank (12 settings) 14 Mode button: Music (sound control)
4 Preset/User bank select 15 Mode: Strobe
5 Scene select (12 settings) 16 XLR DMX output
6 Save/Delete 17 DMX mode Multi/Single
7 Master Dimmer 18 DMX channel settings
8 Chaser speed control 19 Internal mic / external audio select
9 Fade time control 20 RCA input external audio
10 Strobe speed control 21 Input ext. power adaptor
11 Blackout (standby, all LEDs off) 22 Power on/off
