USE
Several receivers may be assigned to a transmitter.

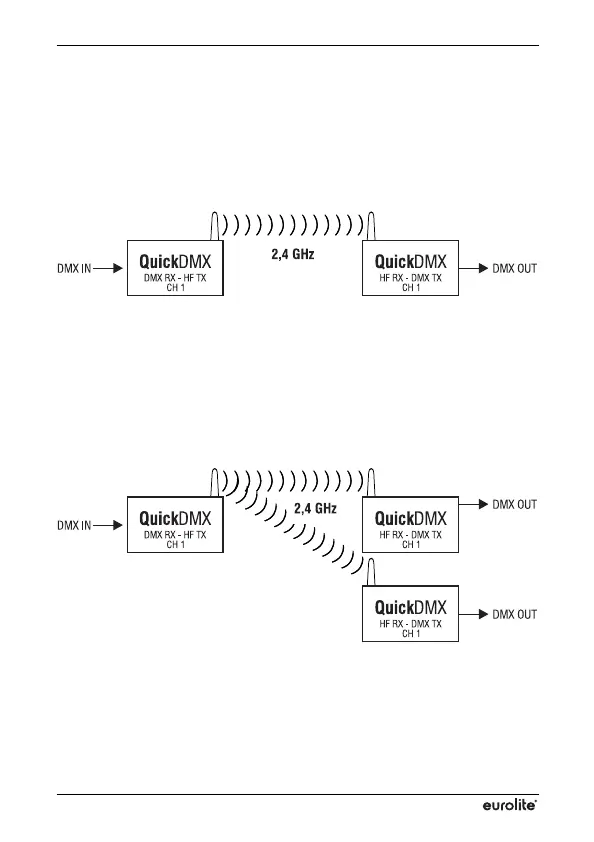

Transmission 1:1
The DMX signal is fed to a transmitter which sends it via RF. A receiver with
the same transmission channel receives the RF signal and distributes it as a
DMX signal.
Transmission 1:Many
The DMX signal is fed to a transmitter which sends it via RF. Several
receivers with the same transmission channel receive the RF signal and
distribute it as a DMX signal.

EuroLite QuickDMX Specifications

General

Type	Wireless DMX Transceiver
Frequency band	2.4 GHz
DMX channels	512
Power supply	5V DC, 500mA
DMX Output	1 x 3-pin XLR
DMX Input	1 x 3-pin XLR
Connectors	3-pin XLR
