EuroMini 10V6.e - Connections; Transformer; Battery Connection

Castle Care-Te c h Page:9
C
onnections
Transformer
Battery
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Transformer
Battery 12V
To Earth terminal
of mains block
Remove for DP
Z1 COM Z2 COM +12V Z3 COM Z4 Z5 COM Z6 COM +12V Z7 COM Z8 Z9 COM Z10 D1- D2+ D3 D4 - BAT + GND

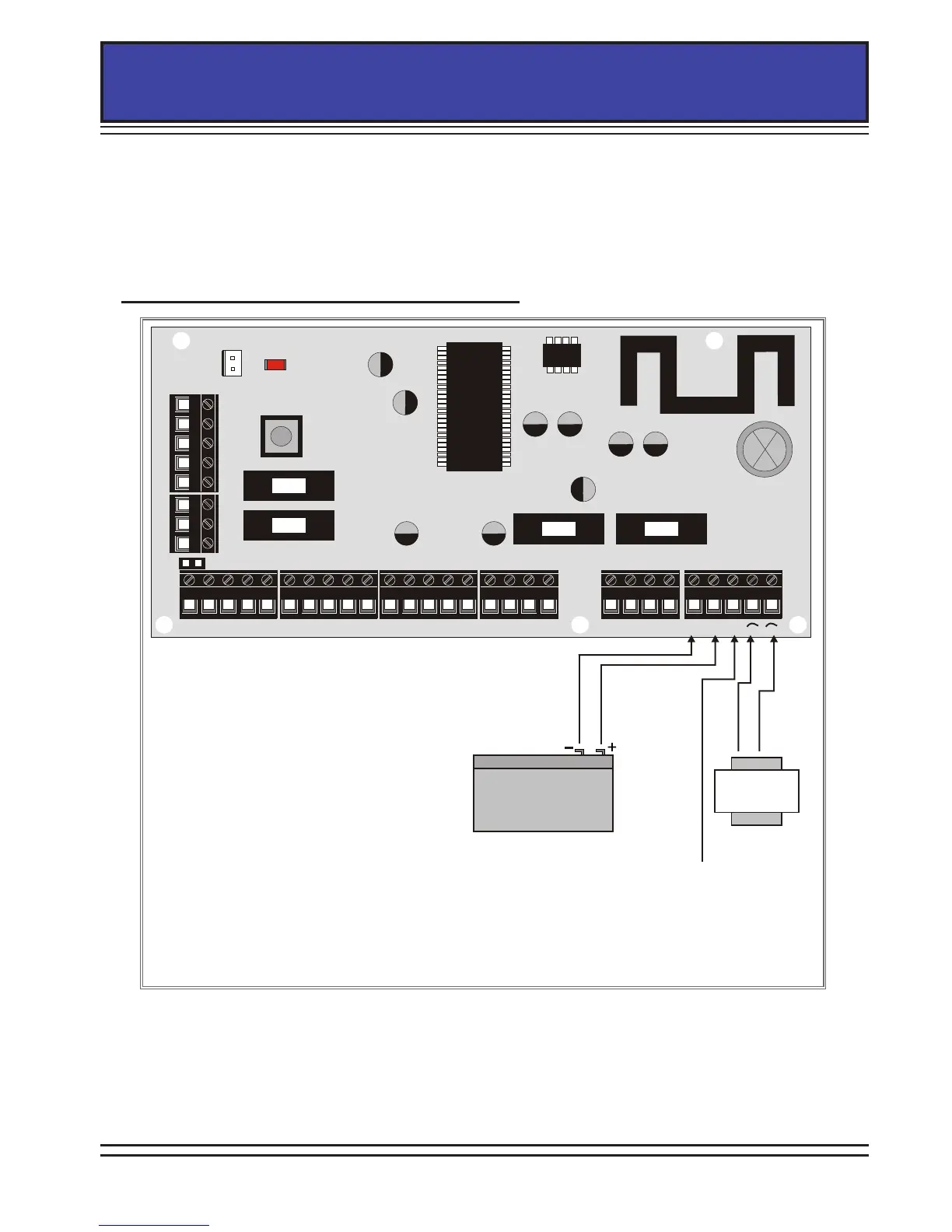

Transformer / Battery Connection
The transformer will be factory tted to the connections shown below on the
EURO mini.
It is recommended that a 3Ah or 7Ah battery should be used on the EURO mini.
This connects to the Battery positive and negative terminals.
