9
PMC & eco-PMC SERIES FORCED DRAFT EVAPORATIVE CONDENSERS
Field Assembly of External Service Platform and Ladder
The external service platform and ladder assemblies are shipped separate from the unit. The platform is partially assembled prior to
shipment to minimize field assembly. The platform and ladder assembly should be attached aer the unit is fully rigged following the
instructions below in Figure 15.
SECURE DECK
SUPPORT TO
CONNECTION
PLATES WITH 5/8”
GRADE 5
HARDWARE
CONNECTION
PLATE
CONNECTION
PLATE
RAILING FITTING
SECURE RAILING
FITTING TO FRONT
TOEPLATE USING 5/8”
GRADE 5 HARDWARE
DECK SUPPORT
DETAIL A
DETAIL C
DETAIL D
(IF NEEDED)
A
C
C
D
B
FRONT TOEPLATE
SECURE DIAGONAL
SUPPORT TO DECK
SUPPORT USING 5/8”
GRADE 5 HARDWARE
SECURE DIAGONAL
SUPPORT TO CONNECTION
PLATE WITH 5/8” GRADE 5
HARDWARE
NOTE: PLATFORM GRADING NOT SHOWN FOR CLARITY
DECK SUPPORT
DIAGONAL SUPPORT
DIAGONAL
SUPPORT
DETAIL B

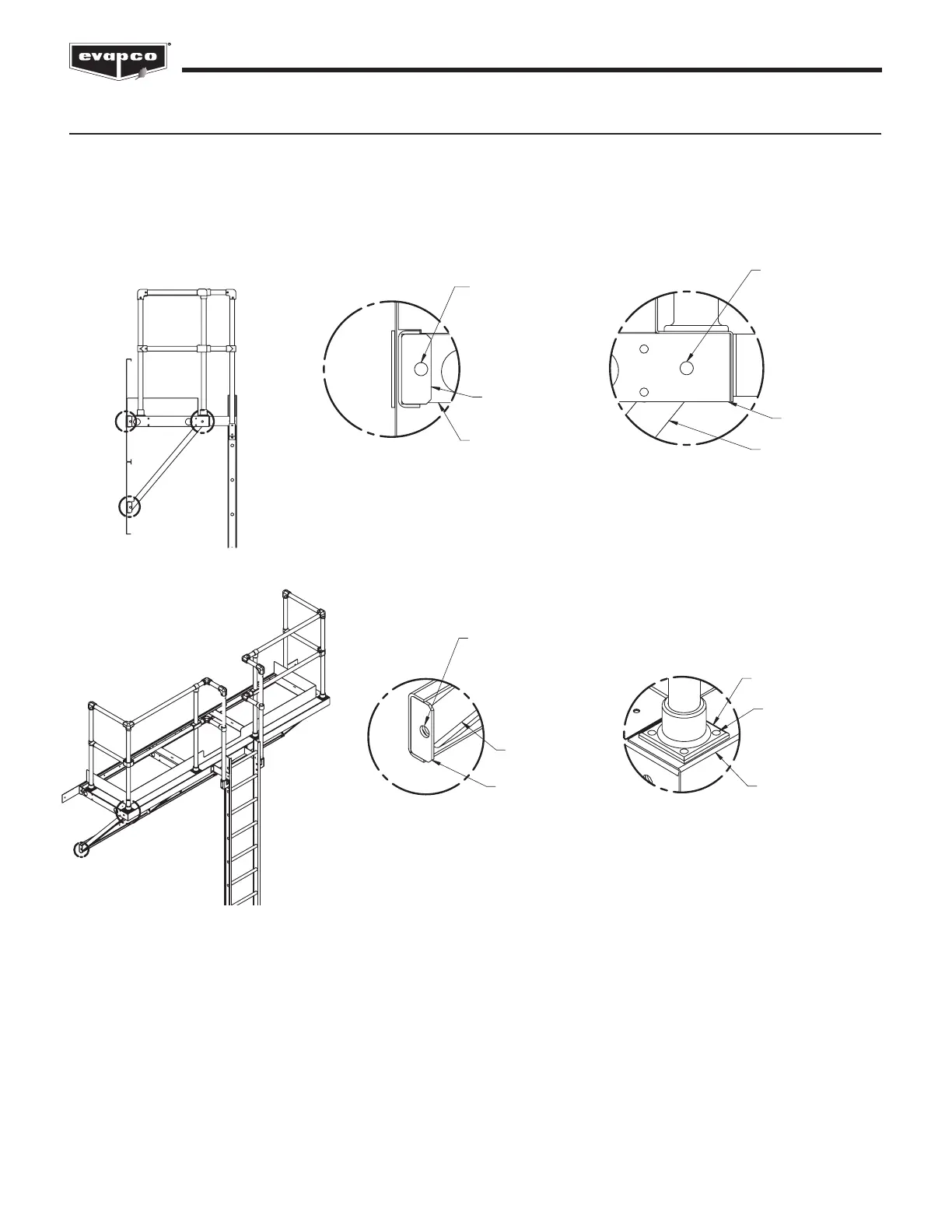

Figure 15 – Field Assembly of External Service Platform and Ladder
