PMC & eco-PMC SERIES FORCED DRAFT EVAPORATIVE CONDENSERS
LIFTING
U-BOLTS
COIL
ANGLE WITH
HORIZONTAL
MUST
EXCEED
60°
H
H

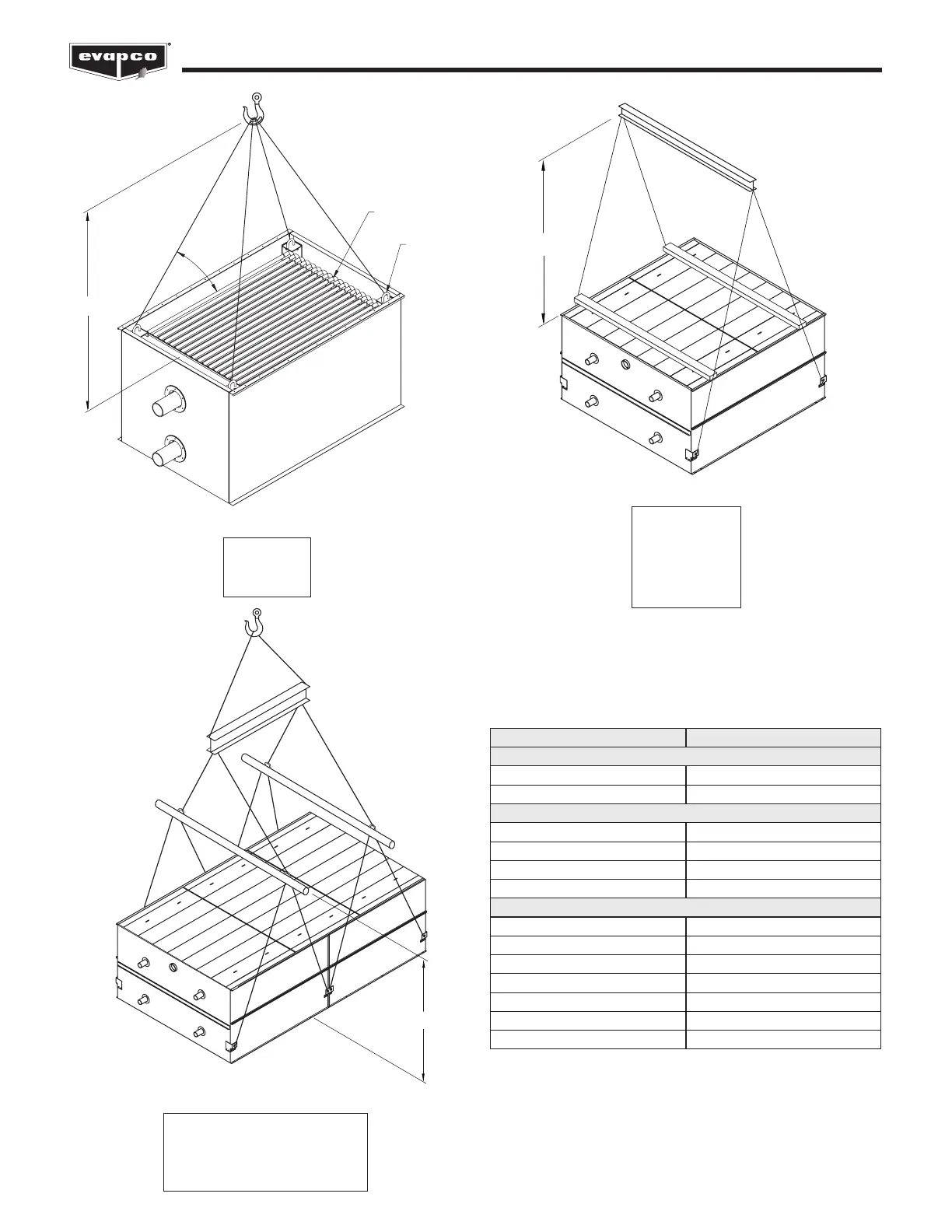

Figure 8 – Large Casing Section (12’ Long Sections)
BOX SIZES:
10’ x 12’
10’ x 24’
12’ x 12’
12’ x 24’ (2)
H
Figure 9 – Large Casing Section (18’ Long and Up)
BOX SIZES:
10’ x 18’, 10’ x 36’
12’ x 18’, 12’ x 20’
12’ x 24’ (1), 12’ x 36’, 12’ x 40’
Table 4 – Minimum “H” Dimension for Coil Casing Section
Figure 7 – Small, Single Casing Sections
BOX SIZES:
5’ x 12’
5’ x 18’
(See Table 2 for model numbers corresponding to box size)
Box Size “H” Dimension
5’ Wide Models
5’ x 12’ 12’
5’ x 18’ 17’
10’ Wide Models
10’ x 12’ 14’
10’ x 18’ 9’
10’ x 24’ 23’
10’ x 36’ 17’
12’ Wide Models
12’ x 12’ 15’
12’ x 18’ 9’
12’ x 20’ 10’
12’ x 24’ (1) 13’
12’ x 24’ (2) 23’
12’ x 36’ 17’
12’ x 40’ 19’
