4 MEASUREMENTS
4.1 Controller and user interface measurements

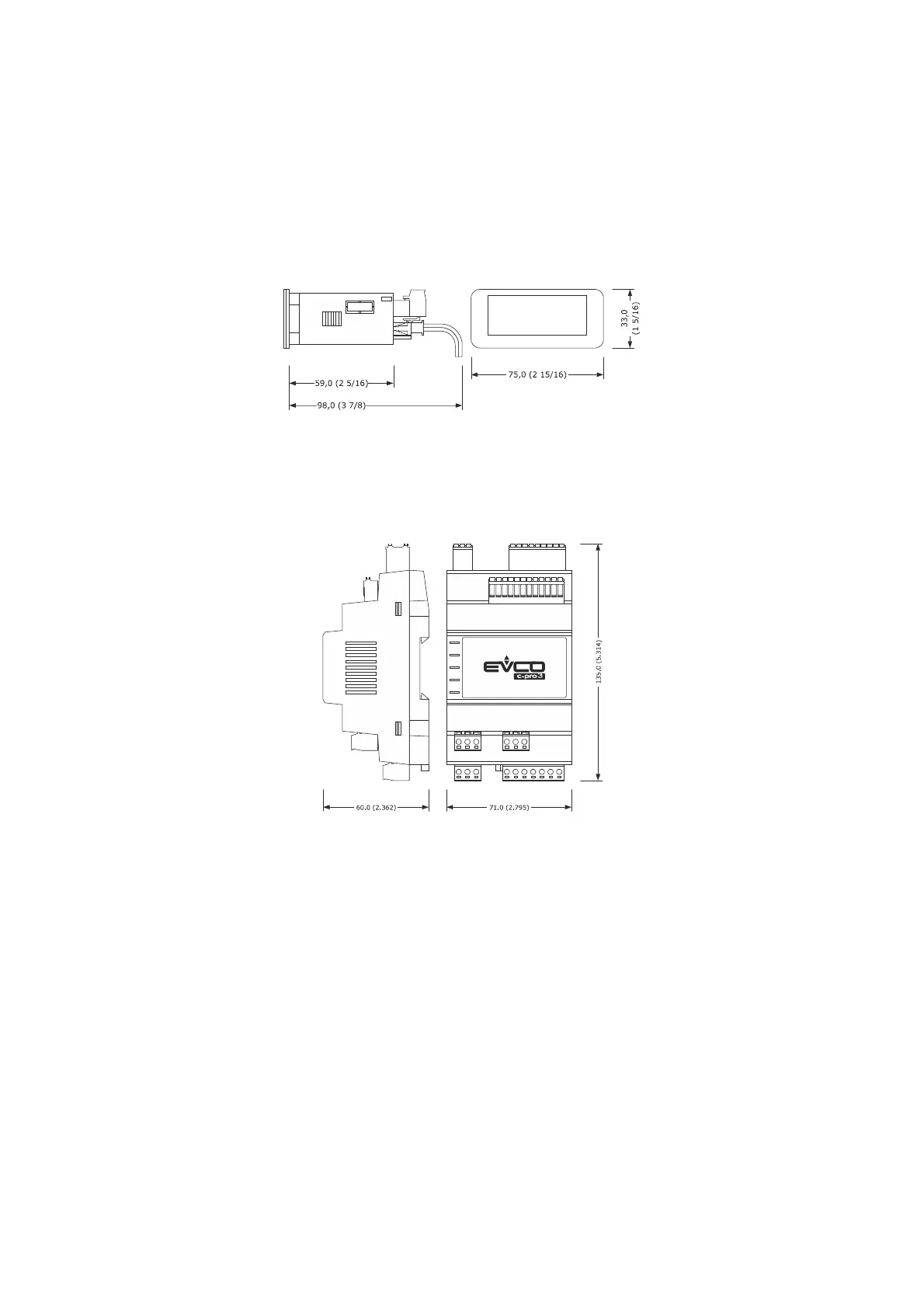

Below we show the measurements, assembly, and electrical connections of the c-pro 3 nano CHILL device.
4.1.1 c-pro 3 nano CHILL control module measurements
To be fitted to a panel; measurements are in mm (in).
4.1.2 c-pro 3 EXP micro+ control module measurements
4 DIN modules, installation with assembly on DIN rail; measurements are in mm(in).
