Evco EPN2LXP User Manual

EVCO S.p.A. c-pro 3 nano CHILL | Application manual ver. 3.0 | Code 144CP3NCE304
page 11 of 96

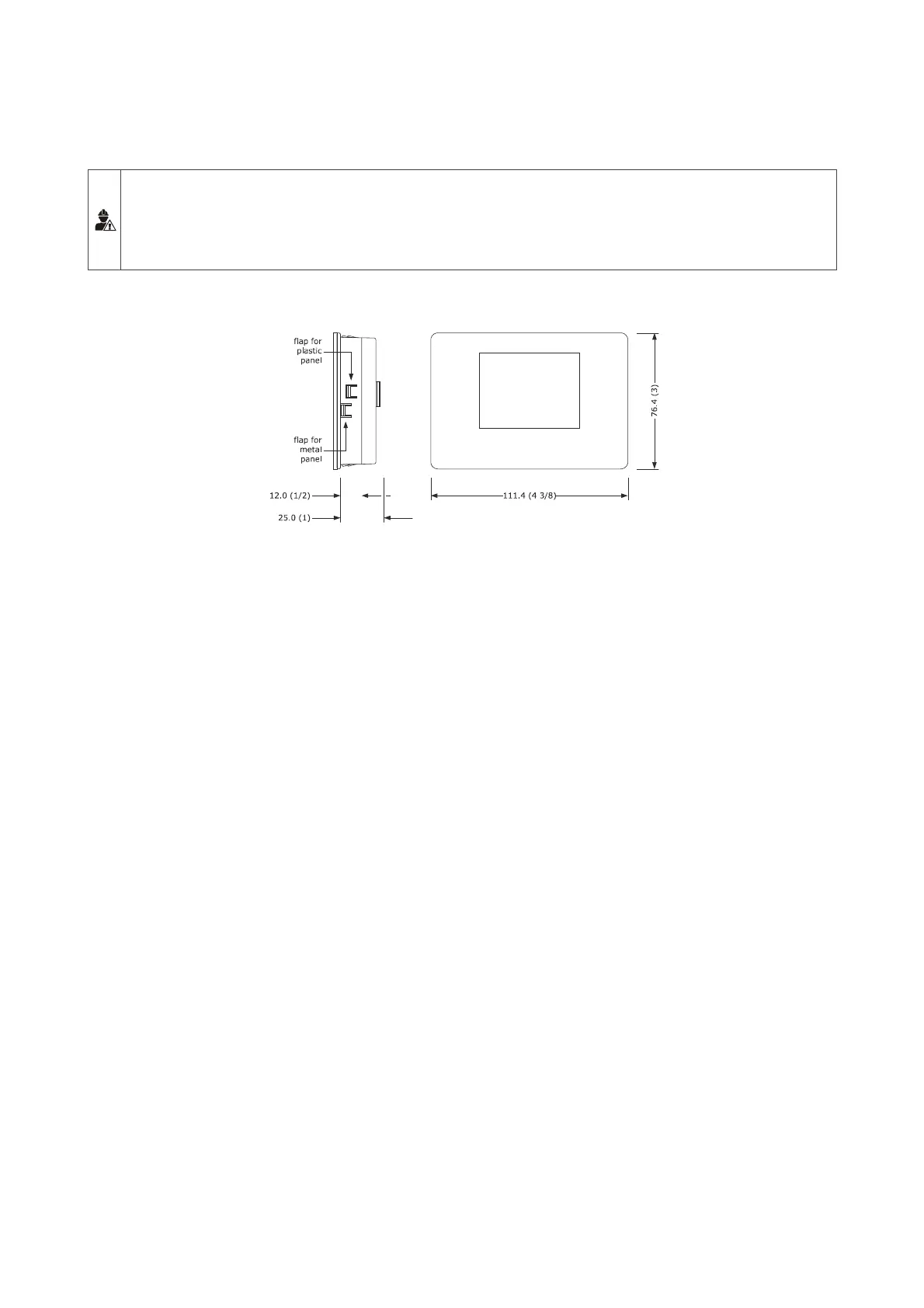

4.1.1 EPJgraph remote user interface measurements
Models for panel mounting; measurements are in mm (in).
N.B.
- the thickness of a metal panel must be between 0.8 and 1.5 mm (1/32 and 1/16 in), while that for a plastic panel must be
between 0.8 and 3.4 mm (1/32 and 1/8 in)
- the measurements of rilling template must be 107.6 x 72.6 mm (3 15/16 x 2 7/8 in), with rounded corners R 3.0 mm (1/8
in).
To be fitted to a panel, with elastic holding flaps.

Evco EPN2LXP Specifications

General

Brand	Evco
Model	EPN2LXP
Category	Controller
Language	English
