Evco EVJ 500 Series User Manual

114J500E4.01 · EVJ 500 series 04/2021
| 34 |
7.5 HUMIDITY IN THE NEUTRAL ZONE
The humidity regulation configuration parameters in the neutral zone are:
Par. Description MU Range
rd0 Dehumidificationregulationdifferentialtobeaddedtosetpoint2(setpoint2+rd0+rd1). % 1...25
h1 Minimum value attributable to setpoint 2. % 0...h2
h2 Maximum value attributable to setpoint 2. % h1...100
rh0 Humidificationregulationdifferentialtobeaddedtosetpoint2(setpoint2+rh0 + rh1). % -25...-1
rd1 Dehumidification neutral zone setpoint 2 - rd1. % 0...10
rh1 Humidification neutral zone setpoint 2 - rh1. % 0...10
7.5.1 Operation
Regulation in the neutral zone is active:
• Forhumidication,ifrh1≠0;
• Fordehumidication,ifrd1≠0.
Setpoint 2
rd0
rd1
rh1
rh0
RH

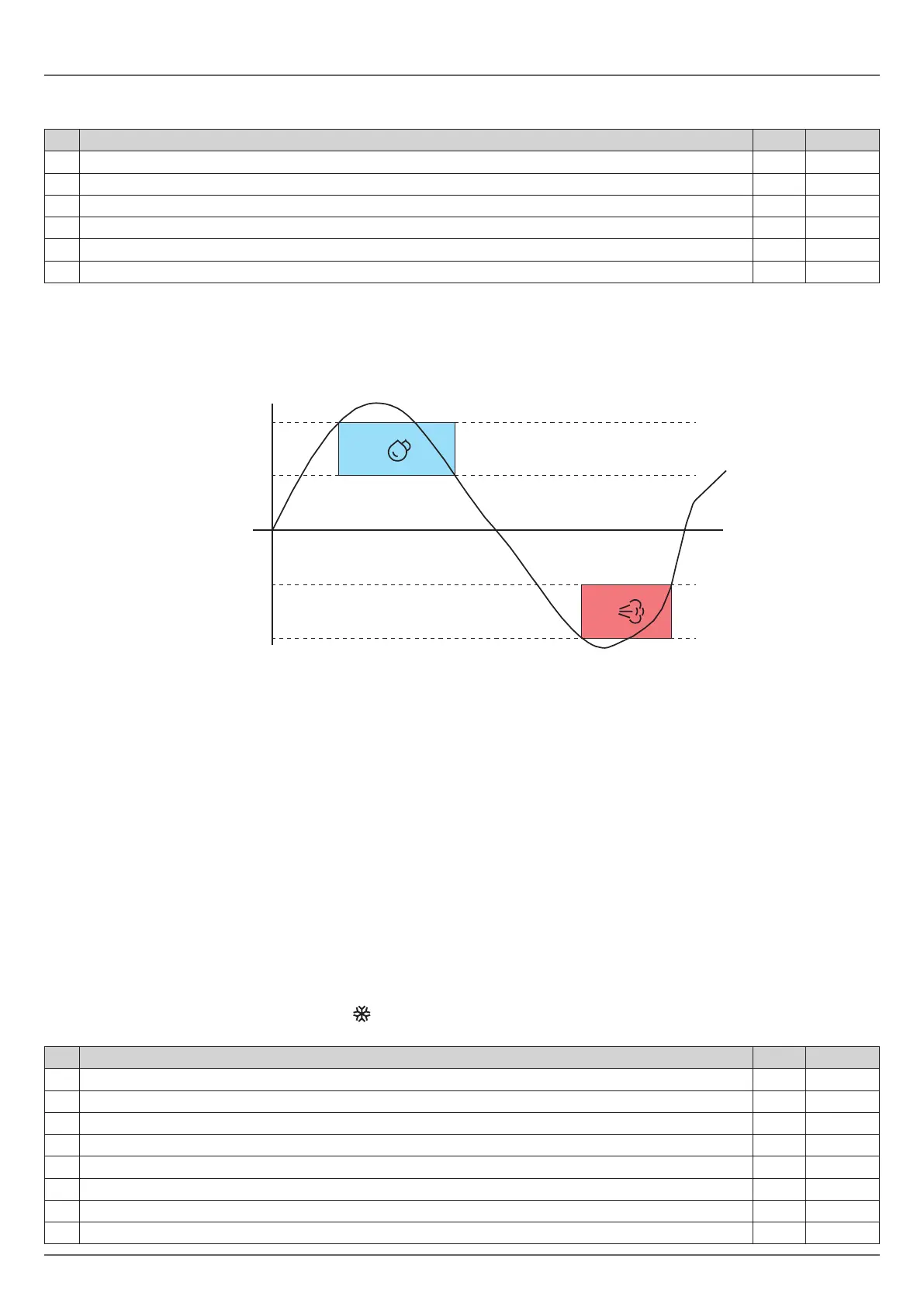

Fig. 24. Operation of temperature regulator
7.6 COMPRESSOR
The compressor regulator operates when at least one relay output is configured as the compressor uc1...uc6 = 4.
The switching on/off of the compressor is controlled by:
• TemperaturereadbyprobePb1;
• Congurationoftheheatregulations;
• Defrost and dripping.
Conditions for activation
The compressor is activated if the following conditions are met:
• Thecontrollerison(regulationisblockedwhenthecontrollerisinstand-by);
• ProbePb1isworking;
• Compressor activation delay C0 from switch-on is terminated;
• Compressor switch-on delay C2 between 2 consecutive activations;
• If d1=0,2,defrostanddrippingmustbeterminated.
If a delay C0 or C2issetandthereisarequestforcompressoractivation,thecontrollerwaitsforthedelaytoendbefore
activatingthecompressor.Duringthewait,the
iconflashesuntilthecompressorisactivated,afterwhichitstayson.
The compressor regulation configuration parameters are:
Par. Description MU Range
C0 Compressor ON delay from power-on. min 0...240
C2 MinimumcompressorOFFtime. min 0...240
C3 Minimum compressor ON time. s 0...240
C4 CompressorOFFtimeincabinetprobealarm. min 0...240
C5 Compressor ON time in cabinet probe alarm. min 0...240
C6 Condensation temperature above which the condenser overheat alarm sounds. °C/°F 0...199
C7
Condensertemperatureabovewhichthecompressorlockedalarmsounds,onceC8 time has elapsed. °C/°F 0...199
C8
DelayinactivationofcompressorlockedalarmduetothresholdC7 being exceeded. min 0...15
