HIGH PERFORMANCE BLOWER ACCESSORY
PACKAGE
CAUTIONI
All areas around the line sets, drain hoses and other
openings in the coil sheff should be sealed air tighL
Use some moldable compound or caulking to seal
the area. Failure to do so may result in loss of per-
formance and premature compressor failure.
All EB furnaces are already equipped with a blower and con-
trol system to add-on air conditioning up to 4-tons and heat
pump up to 3 1/2-tons. If the requirement is to achieve more
than specified than the production blower inside the furnace
would have to be replaced with an accessory blower package
3500-7901". This accessory blower package would deliver air
conditioning up to 5-tons, and heat pump up to 4-tons. Acces-
sory package (3500-7901")includes blower, insulation, coil
shelf, trap, clamps, etc. Please refer to the installation instruc-
tions packed with the accessory package for more informa-
tion.
WIRING DIAGRAMS
A
2 SPADE (]NSUL) TERMINALS
USED WHEN CHANGING SPEEDS
BLOWER
4-SPEED BLOWER
EB SERIES FURNACES
BLEND A]i
CONTROL BOX
Z HEAT/COOL
T'STAT
COND UNIT
CONTACTOR
TRANSFORMER
A
CIRCUIT #1
BREAKER
[_ t 24°VAC
60 Hz
I PHASE
GND
LUG
MODEL: EB10B
SINGLE BRANCH
CfRCUfT SERVICE
ELEMENTS LIMIT
SWITCHES
NOTE:IF ANY OF THE ORIGINAL WIRE SUPPLIED
WITH THIS UNIT MUST BE REPLACED, IT
MUST BE REPLACED WITH TYPE 105°C
THERMOPLASTIC OR ITS EQUIVALENT.
FACTORY WIRING SHOWN SOLID, FIELD
WIRING SHOWN BROKEN,
WIRING MUST CONFORM TO LOCAL CODES
APPROVED FOR CU CONDUCTORS ONLY,
240 VAC - 60 Hz - 1 PHASE
D,O,E, OUTPUT CAPACITY - BTU 34,000
MAX, MOTOR-FLA 4,0
SINGLE BRANCH
2 LEADS + 1 GROUND
CIRCUIT SERVICE
NOMINAL CIRCUIT LOAD-AMPS 44,0
WIRE SIZE (75/' C) COPPER #6
WIRE SIZE (60 ° C) COPPER #6
MAX, FUSE SIZE (OR CB) -AMPS 60

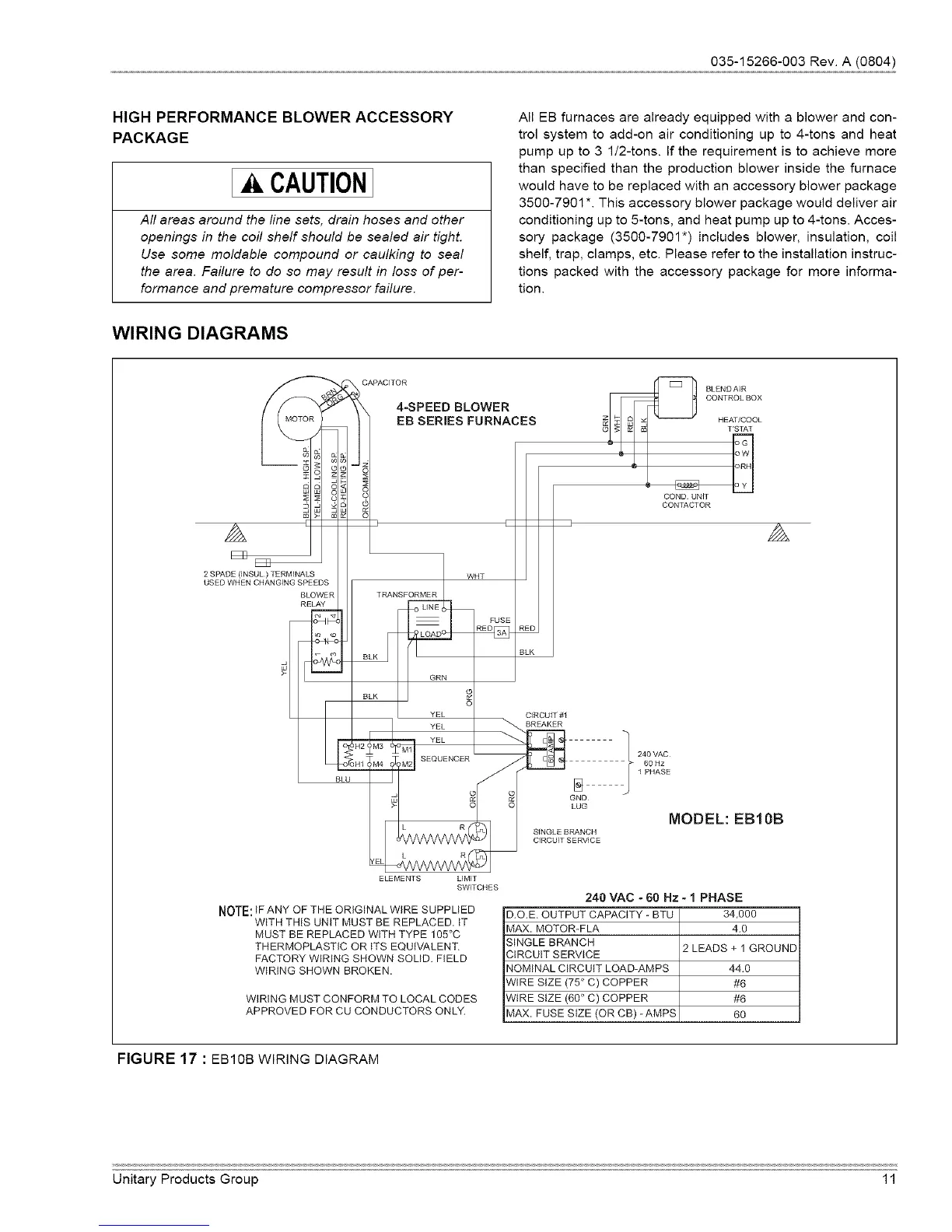

FIGURE 17 : EB10B WIRING DIAGRAM
