Event Lighting DIM4 User Manual

www.event-lighting.com.au
3
Product Overview
The DIM4 is a dimming pack with four output channels, each of which can be loaded up to 3A.
The DIM4 can be controlled using its built-in chaser and sound control functions, or by using
DMX.

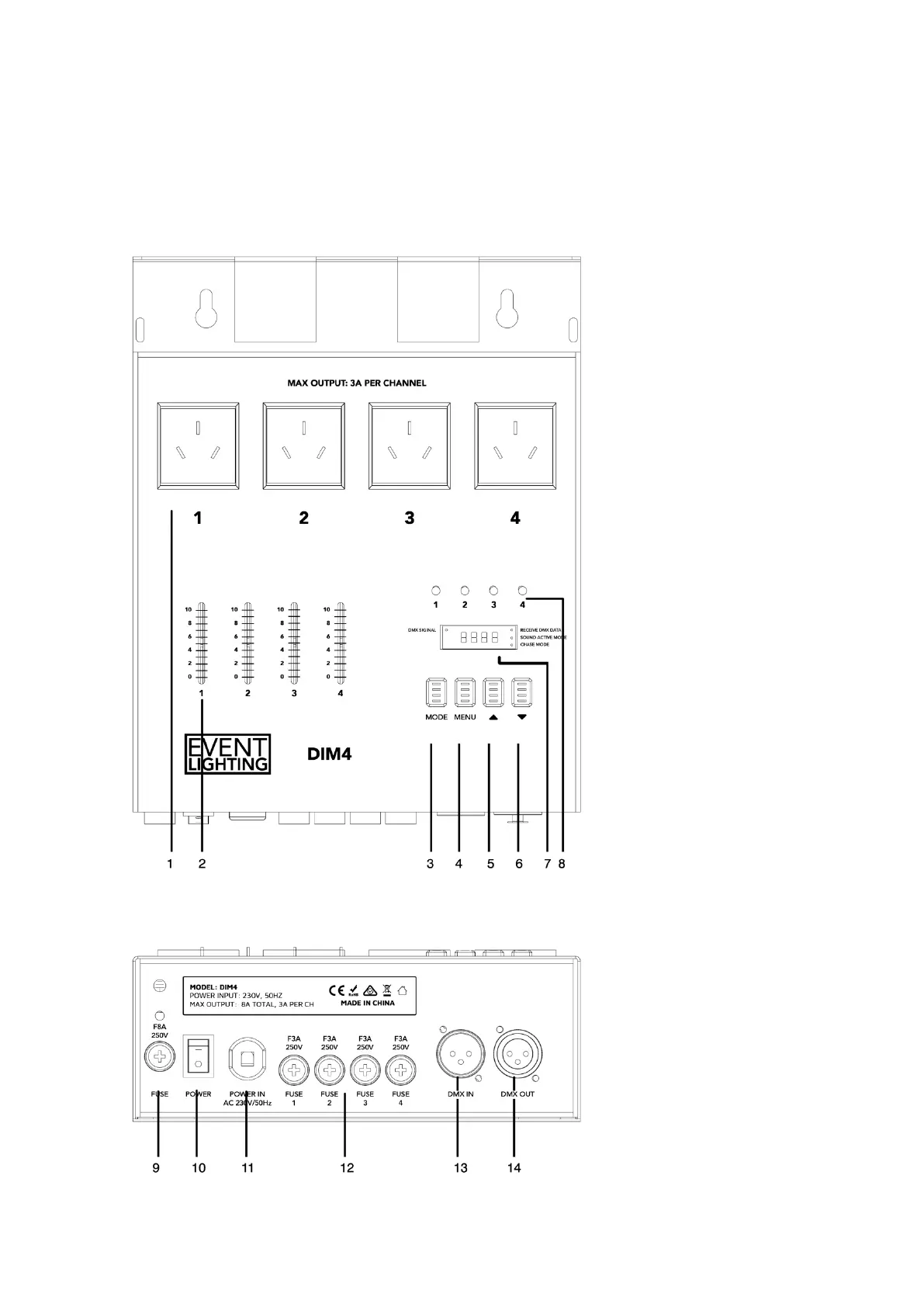

1 – 4x Outputs
2 – 4x Channel Faders
3 – Mode Button
4 – Menu Button
5 – Up Button
6 – Down Button
7 – Display
8 – Channel LED Indicators
9 – Fuse 8A/250V
10 – Power Switch
11 – Power Input 230V/50
Hz AC
12 – 4x Fuse 3A/250V
13 – 3-pin DMX in
14 – 3-pin DMX out

Event Lighting DIM4 Specifications

General

Brand	Event Lighting
Model	DIM4
Category	Switch
Language	English
