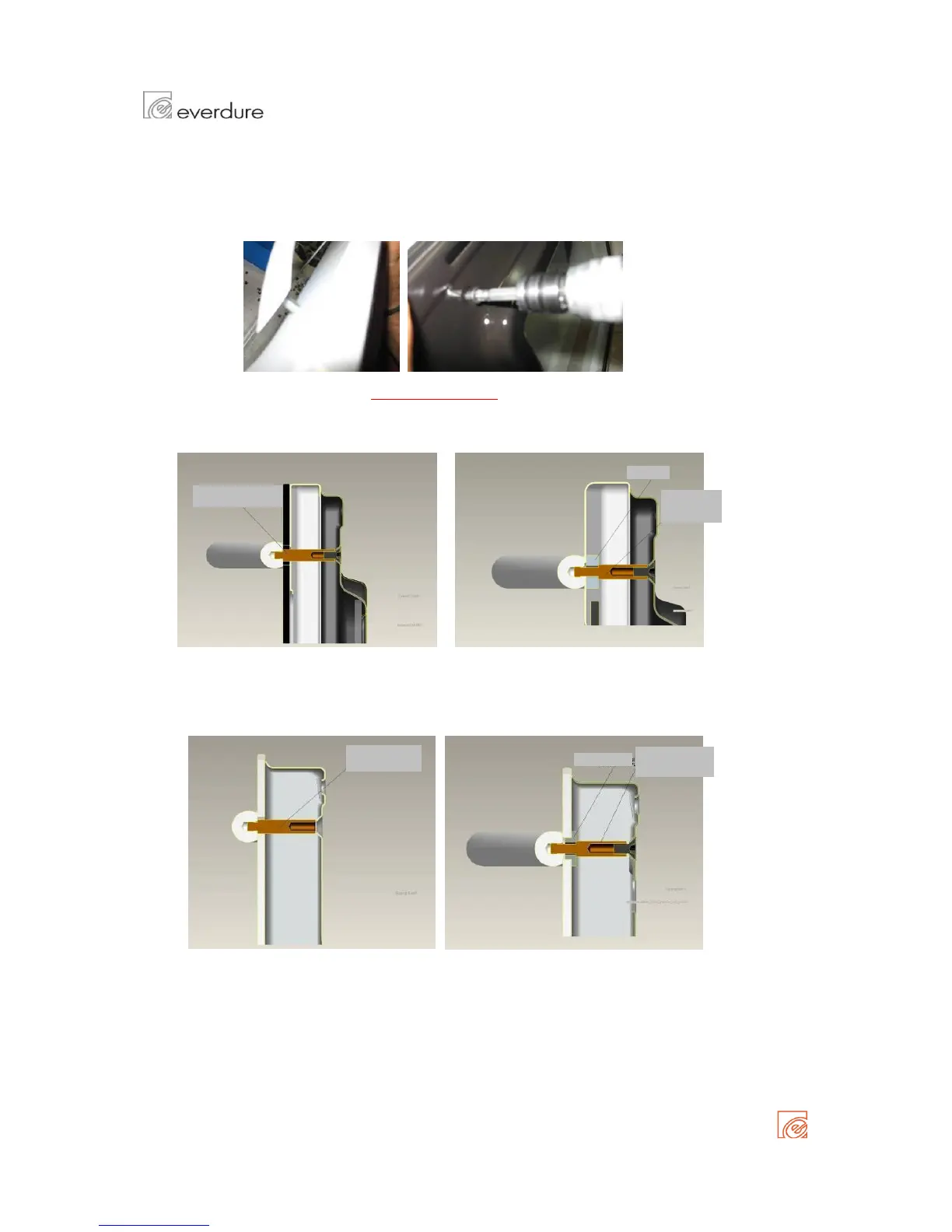

Everdure OBES63 - Page 13

OLD VERSION LAST VERSION
( For oven doors before production FEB. 2007 )
( For oven doors AFTER production FEB. 2007 )
Eski tip kapılarda ; Fırın Kapı Kulbu Bağlantı Grubu = ( Eski Kulp Bağlantı Saplaması + vida )
For old version handles ; Handle assembly Group = ( Old Handle assembly stud + screw )
For new version handles ; Handle assembly Group = ( New Handle assembly stud + flat washer + screw )
SOLID TYPE OVEN DOOR HANDLE ASSEMBLY
OLD VERSION LAST VERSION
( For oven doors before production FEB. 2007 )
( For oven doors AFTER production FEB. 2007 )
Eski tip kapılarda ; Fırın Kapı Kulbu Bağlantı Grubu = ( Eski Kulp Bağlantı Saplaması + vida )
For old version handles ; Handle assembly Group = ( Old Handle assembly stud + screw )
Yeni tip kapılarda ; Fırın Kapı Kulbu Bağlantı Grubu = ( Yeni Kulp Bağlantı Saplaması + kademeli rondela + vida )
For new version handles ; Handle assembly Group = ( New Handle assembly stud + gradual washer + screw )
HANDLE ASSEMBLY TYPES :
3D SOLID TYPE OVEN DOOR HANDLE ASSEMBLY
handle assembly stud
( old )
flat washer
handle
assembly stud (
new )
screw
screw
handle assembly
stud ( old )
handle assembly
stud ( new )
gradual washer
screw
screw
MODELS:
OBES61
OBES62
OBES63
DISASSEMBLY MANUAL BUILT IN OVENS
Page 13 of 23
