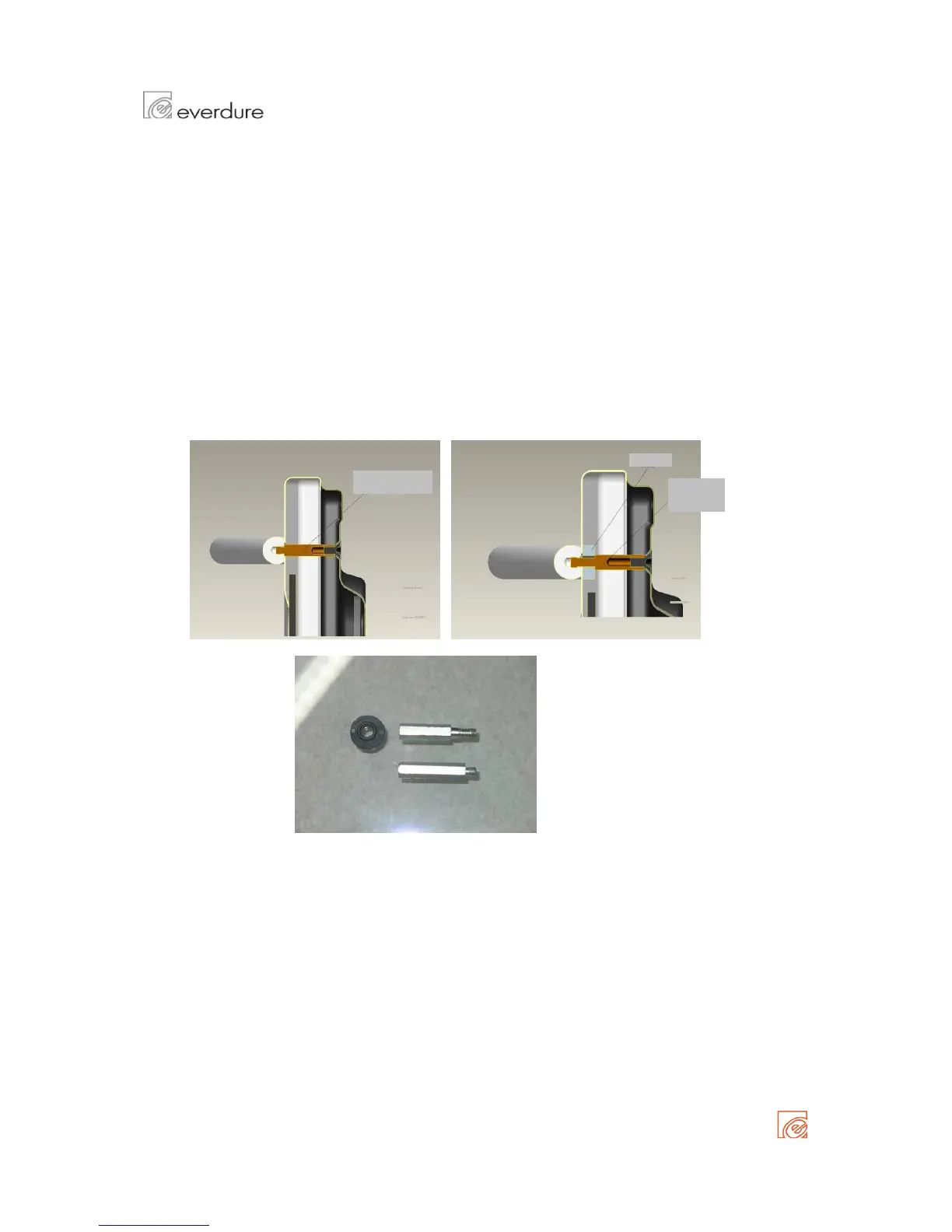

INNER COVER OVEN DOOR HANDLE ASSEMBLY
OLD VERSION LAST VERSION
( For oven doors before production FEB. 2007 )
( For oven doors AFTER production FEB. 2007 )
WASHER
NEW TYPE HANDLE
ASSEMBLY STUD
OLD TYPE HANDLE
ASSEMBLY STUD
handle assembly
stud ( old )
handle
assembly stud
( new )
flat washer
screw
screw
MODELS:
OBES61
OBES62
OBES63
DISASSEMBLY MANUAL BUILT IN OVENS
