APPLIANCE DETAILS
Voltage: 220-240V
Frequency: 50Hz
Lamp Max: 1x40W ES14
Rated Input Power: 140W
GENERAL INFORMATION
Before installing and operating the range hood, carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed to exhaust cooking fumes externally, or it may be used as a re-circulating
range hood (Filters required for re-circulating type).
Before installation, please ensure that the following have been supplied and that the tools listed below are
readily available.

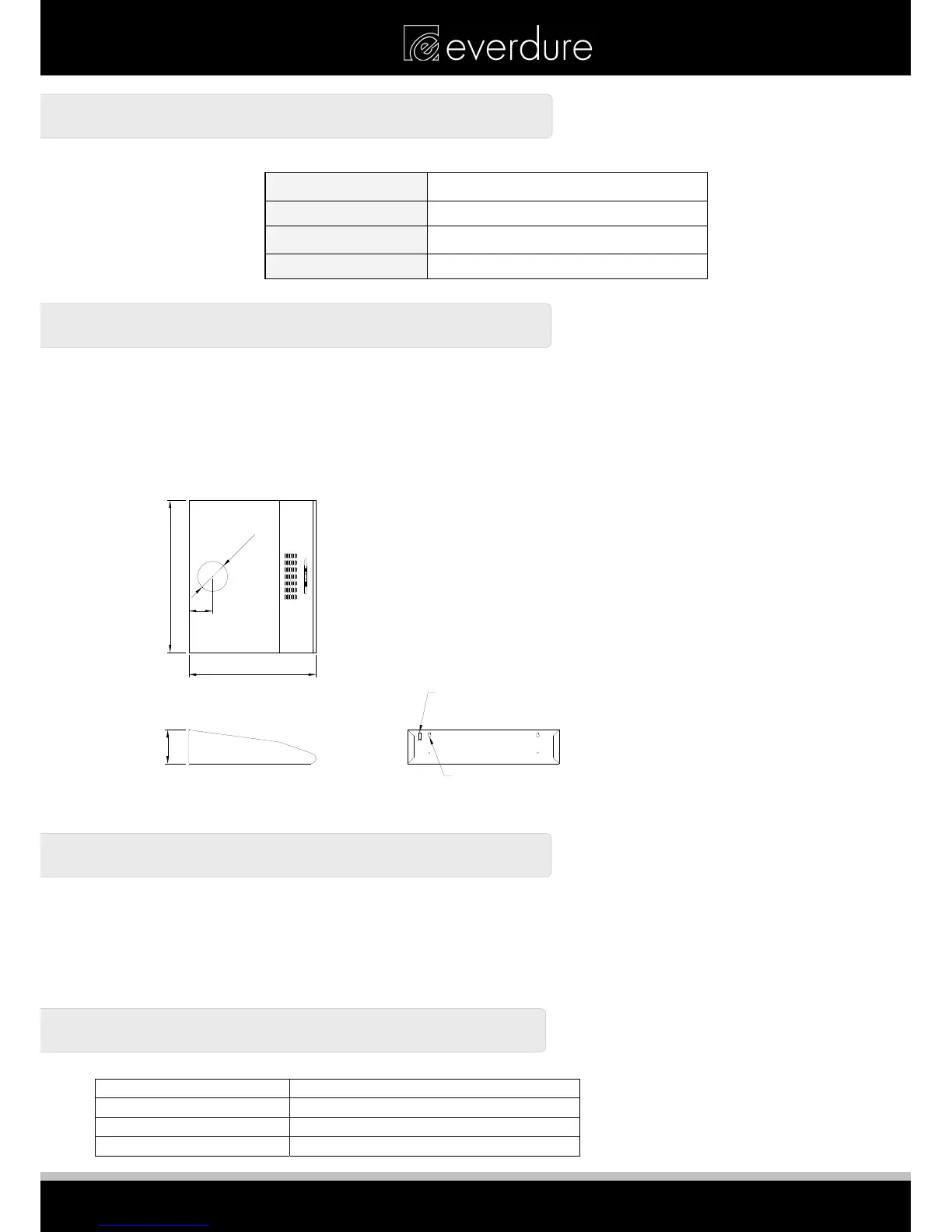

0123 01
133
505
600
95
Ø
1
2
0
ELECTRICAL
CORD
MOUNTING HOLES
TOP VIEW
SIDE VIEW REAR VIEW
WHAT IS SUPPLIED
Range hood (including plug (re-circulating) and one way valve (flued)) x 1
Installation kit (bolt x 4, washer x 8, screw x 4, nut x 4, plastic wall plug x 4) x 1
Instruction booklet x 1
NOTE: Parts needed for the ducted option must be purchased separately.
WHAT MAY BE NEEDED FOR INSTALLATION
Electric Drill Duct Tape
Tape Measure Jig Saw
Spirit Level Ladder
Screwdrivers Torch (If natural lighting is minimal)
4
