INSTALLATION OF THE EVERDURE RBEE61 RANGE HOOD TO A CABINET

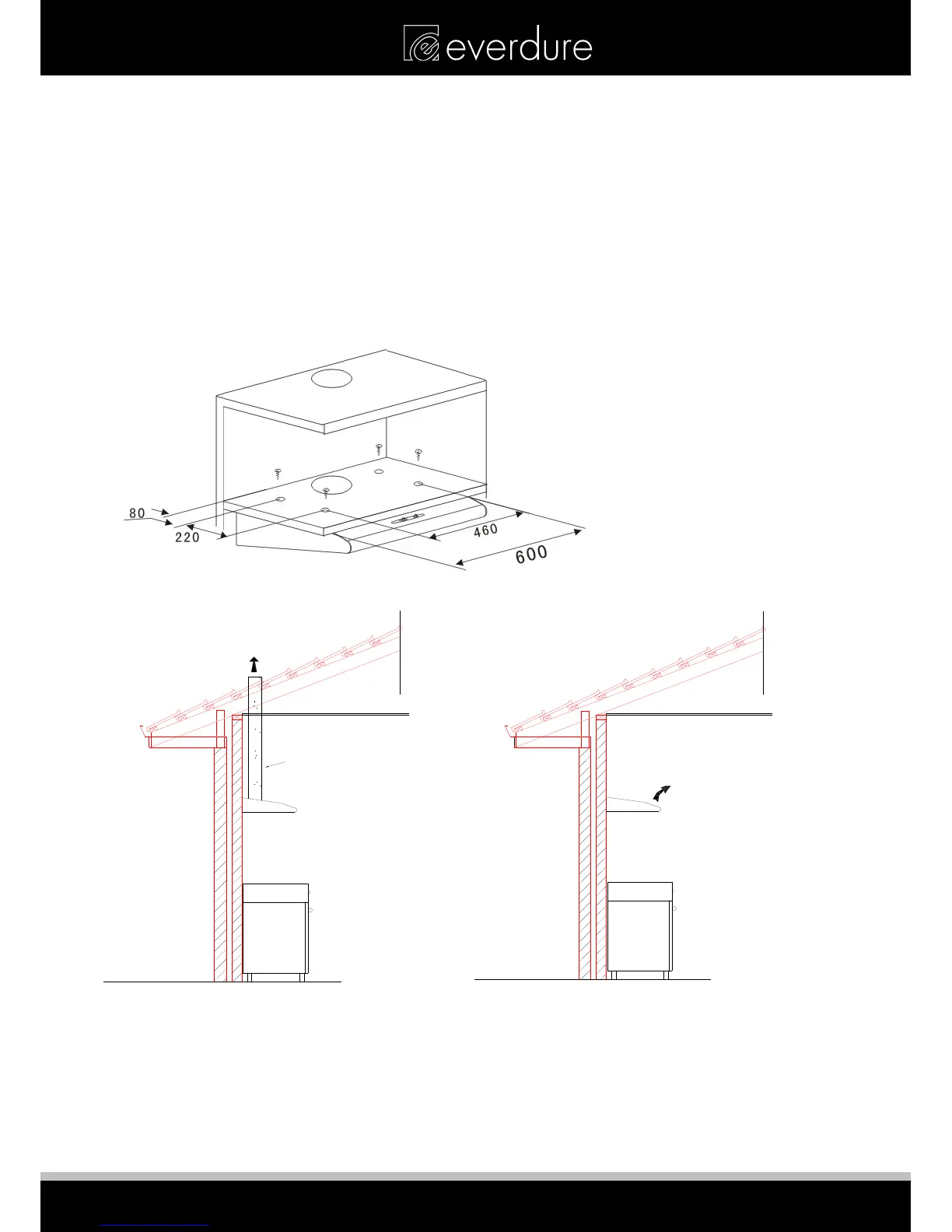

The diagram below shows the distance required between the holes in the top of the range hood. Due to
manufacturing procedures, it is recommended that the dimension be checked on the range hood before
installing.
Drill the 6 x 4mm diameter holes into the bottom of the cupboard.
Fit the one way valve onto the range hood, ready for installation of the ducting.
Install the range hood to the bottom of the cupboard using the screws supplied with the range hood. The
holes in the range hood are already threaded. Fully tighten the screws.
See diagram below for any clarification required.
CEILING
FUMES & VAPOURS
DUCTED OPTION
Ø120mm FLUE PIPE
DUCTED TO OUTSIDE
CEILING
FUMES & VAPOURS
RE-CIRCULATING OPTION
6
