D. EMW330 ONLY Change the viewing direction. If the Z-axis adjustment above
points the lens toward the side of the housing, the IR LEDs and light sensor must be
repositioned. Here, the IR LEDs are at factory/end position. To change them to the
side position:

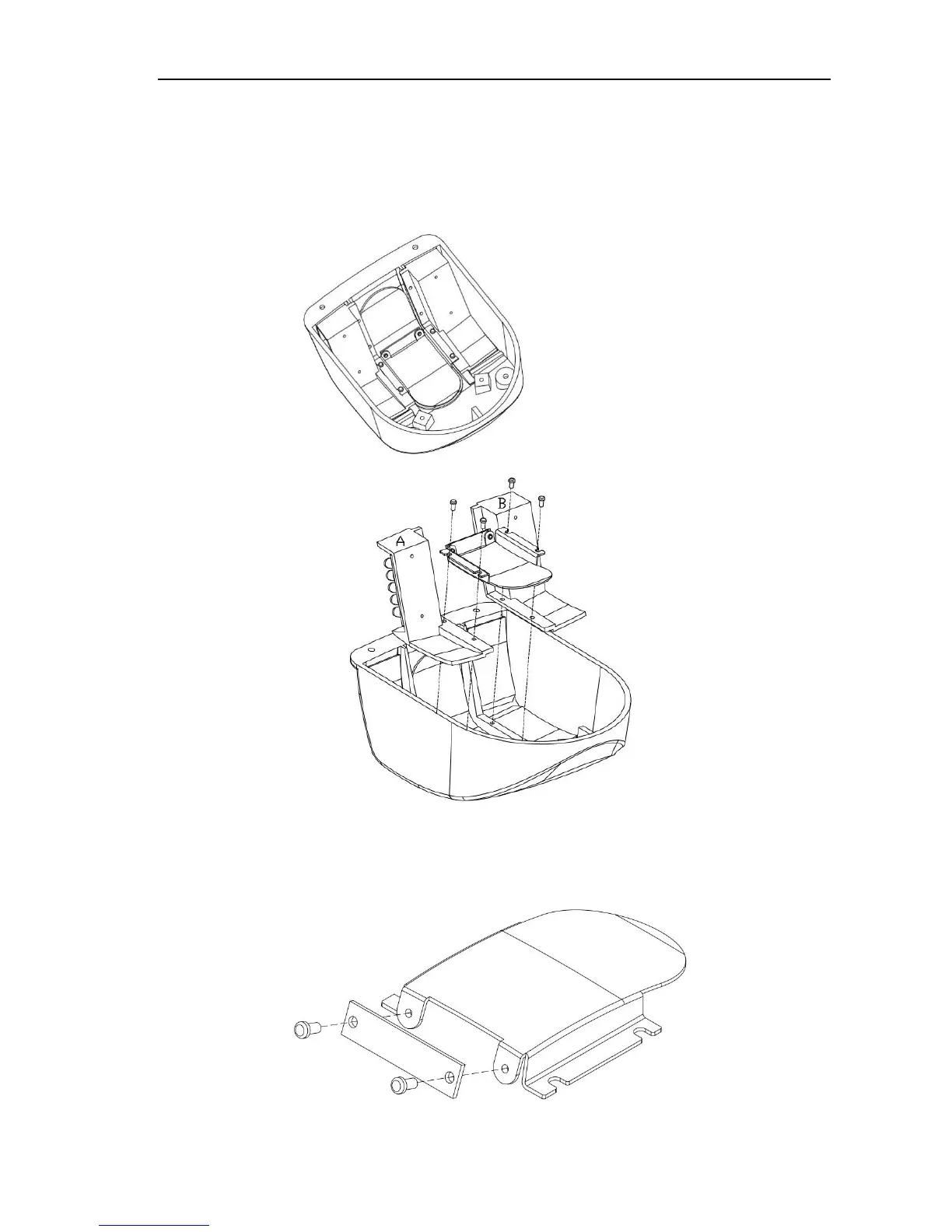

1. Remove the 4 screws as shown in figure to
detach the IR LED panels and light sensor upper
bracket from the camera cover.
2. Replace the factory light sensor “end” bracket by the light sensor “side” bracket:
Remove the 2 screws from the light sensor “end” bracket.
