EverFocus EQH5102 - Cable Description

EZH5102 1080p Mini IR Bullet Camera
2
service life
 SD TV Out for aim and focus using a standard hand held test monitor

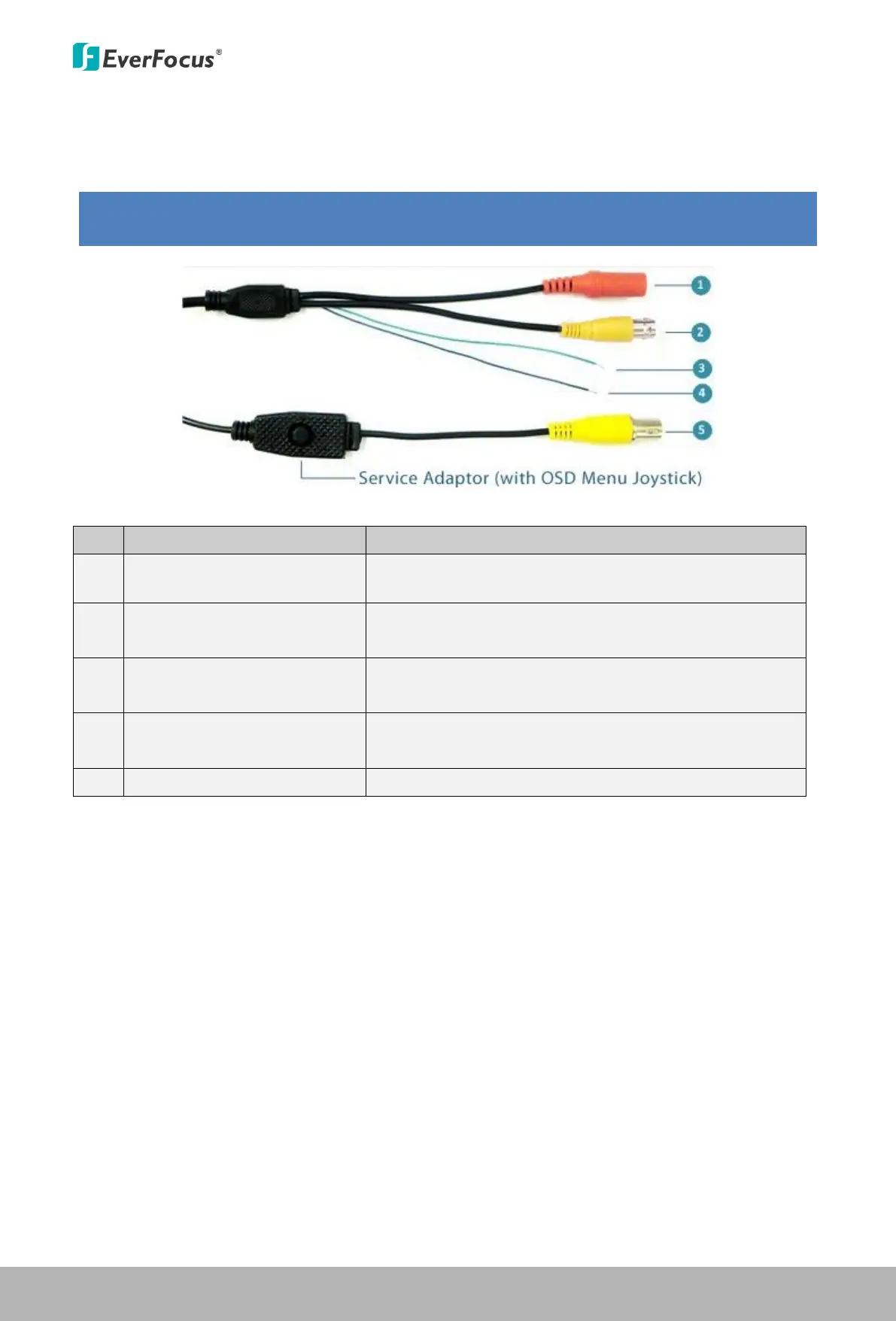

2. Cable Description
No.
Name
Descriptions
1
Power Cable
Connects to a DC 12V power source.
2
HDcctv Output
Connects to an HDcctv device, such as a DVR or HD
monitor, using a 75 Ohm BNC-type coaxial cable.
3
RS485+ (Green)
Connects to an RS-485 device, such as EverFocus’ EKB500
keyboard.
4
RS485- (Blue)
Connects to an RS-485 device, such as EverFocus’ EKB500
keyboard.
5
Test-Out
Connects to a SD CVBS monitor for setting image aim.
