Exterior Equipment
Use the following procedure to mount the
ladder to the bow roller assembly;
1. Remove the quick release pin securing the
ladder to the storage bracket.
2. Remove the ladder and unfold the steps.
3. Remove the pin from the roller assembly.
4. Swing the mounting bracket at the top of the
ladder until it is 90
0
to the ladder steps.
5. Set the ladder bracket on the roller with the
bracket facing toward the rear and ladder steps
dropped down in front of the roller.
6. Align the hole in the ladder bracket with the
holes in the roller assembly. Then insert the
pin to secure the ladder. Make sure the pin
is completely through both sides of the roller
bracket and fully seated before using the lad-
der.
Always remove ladder, insert the pin into the roller
assembly and properly mount the ladder in the
storage bracket before starting the engine.
11.2 Hull
Engine Mounting System
Your Everglades is equipped with an engine
mounting system that is integrated into the hull
and stringer system that is designed to distribute
the stresses of engine weight and thrust through-
out the entire hull.
The engine hoses and cables or the transom gel
coat can be damaged by tilting the engine to the
full up position with the engine turned to the
wrong position. You should monitor the engine
as it tilts to determine best full tilt engine position
for your boat.
Swim Platform and Boarding Ladder
Fiberglass swim platforms are mounted to the both
sides of the transom. A grab rail on each platform
provides a hand hold while boarding.
A telescopic boarding ladder is recessed into the
port swim platform. To use the ladder, push the
ladder forward slightly and lift to release the lad-
der from the slots in the bracket that secure it
in the stored position. Then pull the ladder out
of the recess and rotate it to the down position.
The ladder must be retracted and secured in the
recess before starting the engine.

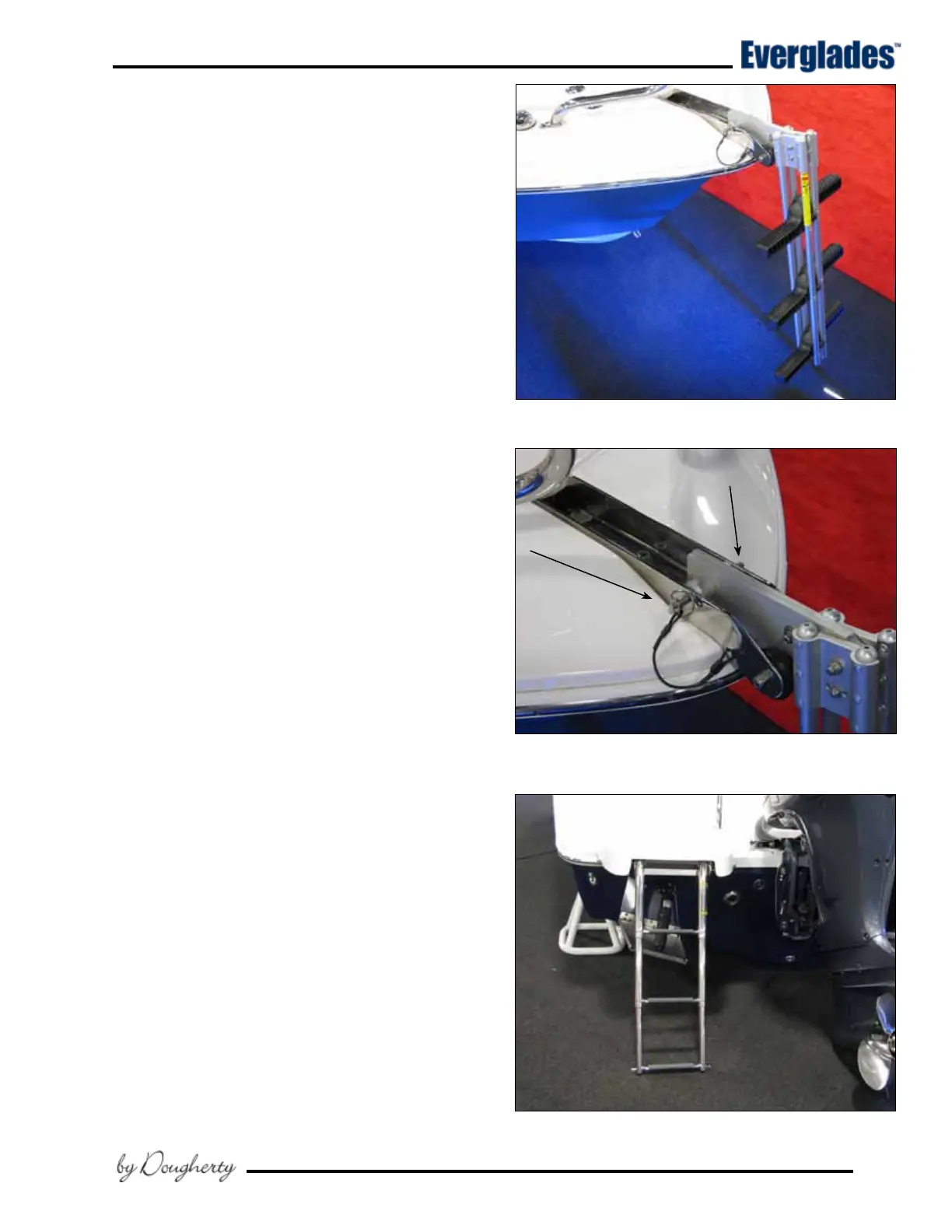

Boarding Ladder Mounting Bracket Secured
with Quick Release Pin
Forward Boarding Ladder Mounted to Bow Roller Assembly
Swim Platform Boarding Ladder
